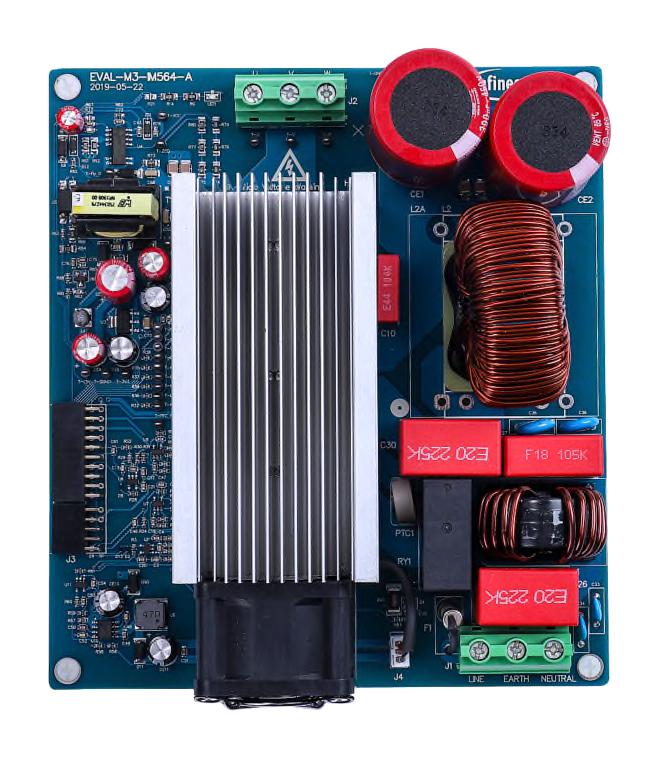

Evaluation board for CIPOS� Mini features 600V IM564-X6D which support customers during their first steps of designing applications with CIPOS� Mini PFC-integrated IPMs. As a part of iMOTION� Modular Application Design Kit, the combination of this power board and matching control board EVAL-M3-102T creates a powerful inverter + PFC system for evaluating the latest Infineon technologies. This board features IM564-X6D, one of the CIPOS� Mini product family which integrates a 3-phase inverter stage and a PFC stage in one DIP 36x21D package. It incorporates a CoolMOS� Power MOSFET and a rapid switching diode for the PFC stage to increase PFC switching frequency up to 150KHz and this enables significant inductor size reduction for high power density with small system size and it enables rapid prototyping of various inverterized motor control systems for example fans, pumps and compressors in combination with active PFC.
- Power stage to drive 3-phase motor
- Power Factor Correction (CCM boost PFC topology)
- 600V blocking voltage 20A installed chip current
- Maximum PFC switching frequency 150KHz
- 2800W output power with passive cooling
- Test pads with hooks to attach standard oscilloscope probes
- Standard MADK M3 interface connector
