INFINEON EVALKITTLE9189QUWTOBO1 Evaluation Kit, TLE9189QUW, 3 Phase BLDC Motor Gate Driver

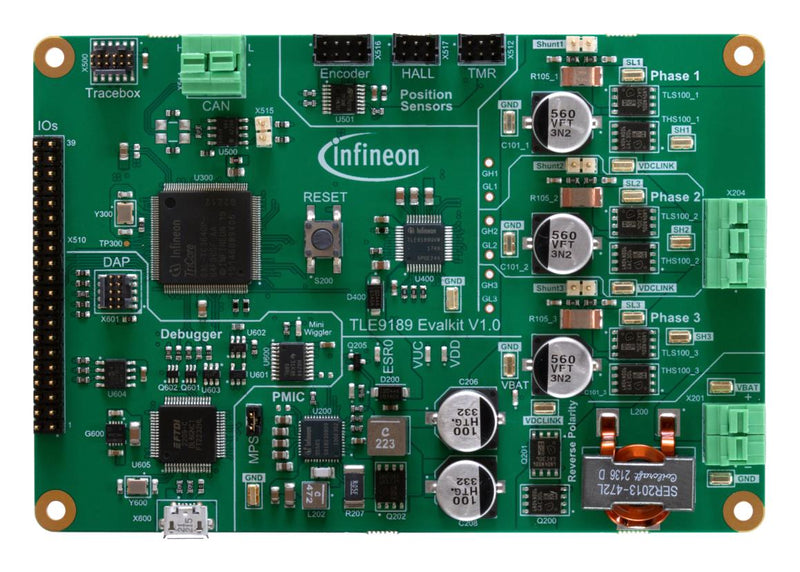

EVALKITTLE9189QUWTOBO1 is a board designed as a simple, easy-to-use tool to familiarize yourself with Infineon�s MOTIX� TLE9189QUW gate driver IC for 12 V BLDC motor control in automotive applications. This evaluation kit is a ready-to-use solution to test and evaluate the MOTIX� TLE9189QUW gate driver IC for BLDC motors. It is equipped with a microcontroller, power supply and a B6-bridge using 40V MOSFETs to drive a 3-phase motor. Motor phases can easily be connected using a wire-to-board terminal block, without needing any additional tools. Additionally, a Configuration Wizard facilitates the evaluation of the basic behaviour of the device. Suitable for electric power steering, electric brake & brake assist, FuSa-related BLDC motor control, FuSa-related PMSM motor control applications.

• MOTIX� TLE9189QUW gate driver IC
• 32-bit TriCore� AURIX� TC364DP
• Power management with OPTIREG� PMIC TLF35585QV
• B6-bridge with OptiMOS� 6 40V MOSFETs
• Universal serial bus (USB) port
• On-board debugger r for the microcontroller with a USB connection
• Debug interface for DAP
• Reverse polarity protection
• Controllable bridge disconnect MOSFET and pin headers available for motor position sensors
• GPIO pin connector and push button available for the microcontroller

Contents

TLE9189QUW board, USB cable.
