Description
Product Overview

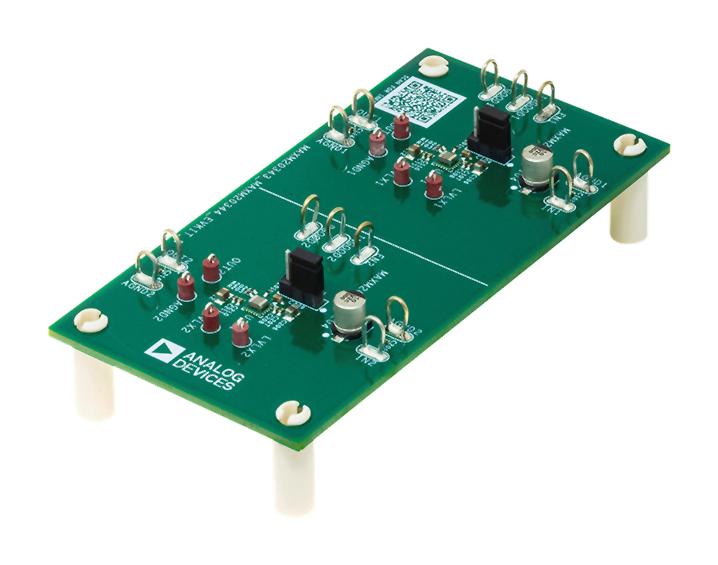

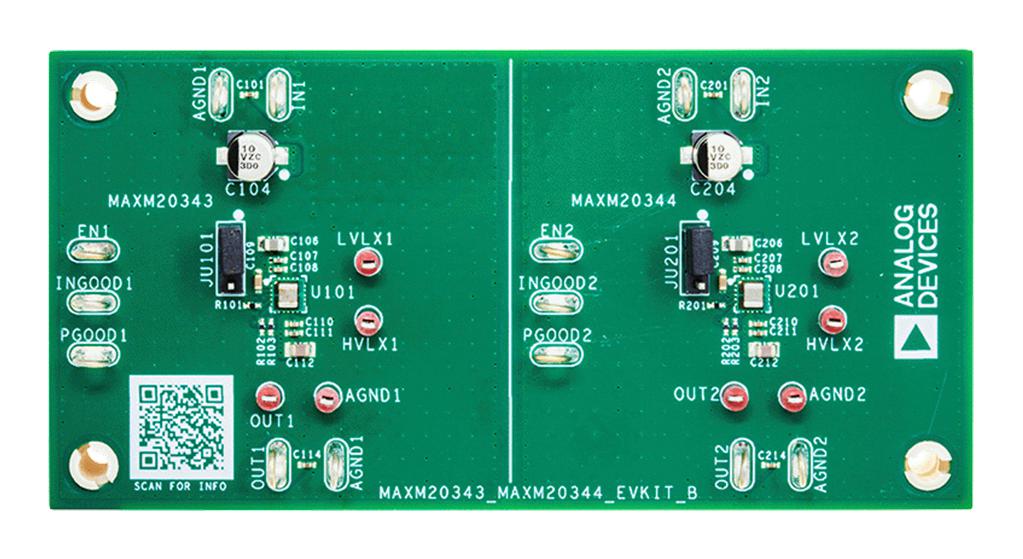

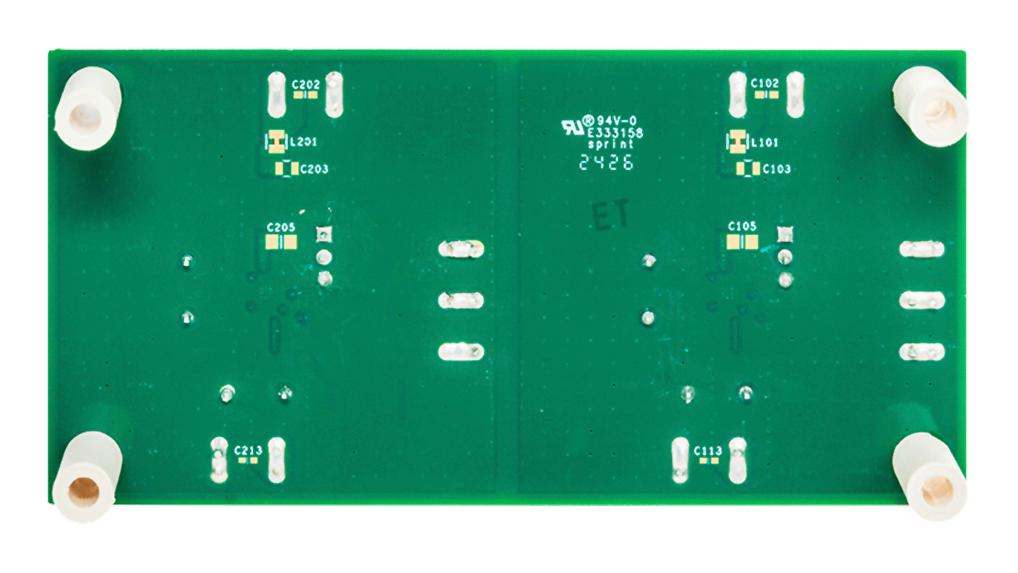

MAXM20343EVKIT# is an evaluation board that provides a proven design to evaluate the performance of the MAXM20343 module. This MAXM20343 module operates over an input range from 0.5V to 5.5V and deliver up to 2.5W output power. The module is configured to demonstrate optimum performance and component sizes in the evaluation boards. The MAXM20343 module is configured for a 3.3V output, delivering up to 2.5W, over a 0.5V to 5.5V input range. The evaluation boards feature fixed soft-start, INGOOD and PGOOD signals. The MAXM20343 module family data sheet provides a complete description of the parts that should be read in conjunction with this data sheet prior to operating the evaluation boards.
- MAXM20343 offers high 94% efficiency (VIN = 3.3V, VOUT = 3.3V, IOUT = 300mA)
- Fixed 32ms soft-start time
- INGOOD and PGOOD outputs with pullup resistor to the respective OUT
- Low-profile, surface-mount components
- Proven PCB layout
- Fully assembled and tested
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | MAXM20343EVKIT# |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 16144.12 |
| 3-5 | ₹ 15979.38 |
| 5-10 | ₹ 15649.91 |
| 10+ | ₹ 15320.44 |
Bulk discount will be automatically applied during checkout based on quantity.
