Description
Product Overview

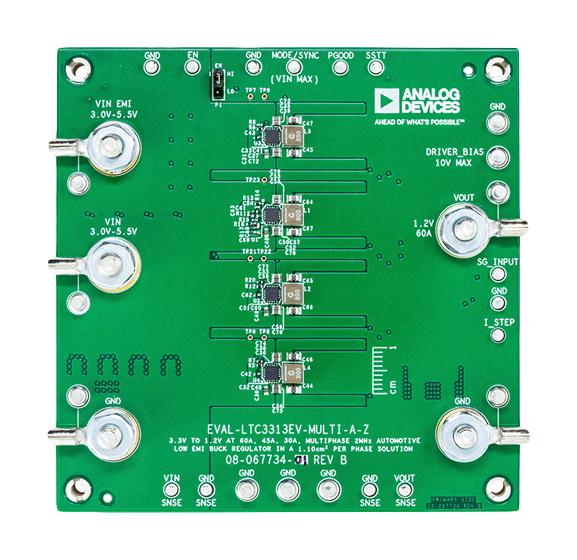

EVAL-LTC3313EV-MULTI-A3Z evaluation-board features the LTC3313, a 15A, low-voltage, synchronous step-down Silent Switcher®, operating as a multiphase 2MHz, 3.0V to 5.5V input, 1.2V buck regulator. The LTC3313 supports adjustable output voltages from 0.5V to input voltage (VIN) and operating frequencies from 500KHz up to 5MHz in multiphase operation. Operate in forced continuous mode at 2MHz switching frequency (fSW). The LTC3313 can also synchronize to an external clock using a MODE/SYNC turret when the RT pin of the main phase is pulled up to the VIN pin. The board also has an electromagnetic interference (EMI) filter to reduce conducted EMI. This EMI filter can be included by applying the input voltage at the VIN EMI terminal.
- Transient circuit included for load transient evaluation
- RT pin pull-up option for external clock synchronization
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-LTC3313EV-MULTI-A3Z |
| Quantity | Each |
| Technical Data Sheet EN |  |
