| ₹ 12741.19 includes GST and import duties. | |
| B2B customers can avail ₹ 1943.03 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Product Overview

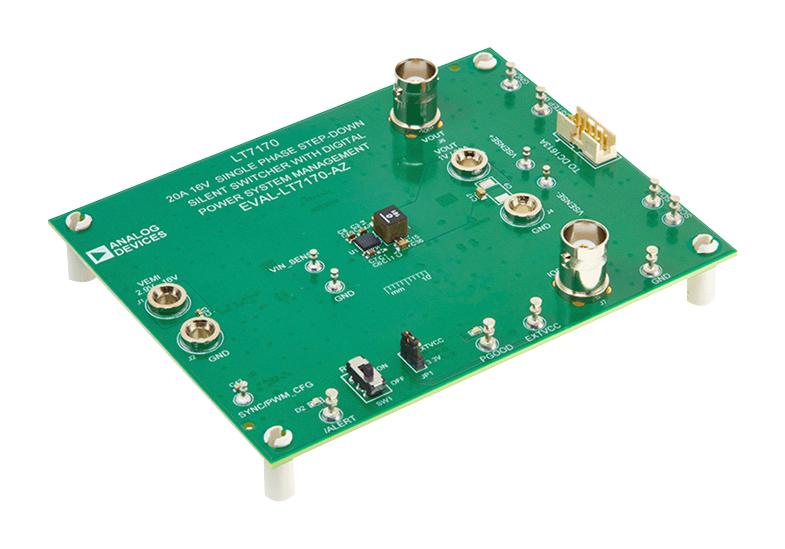

EVAL-LT7170-AZ evaluation board is a single-phase monolithic DC/DC synchronous step-down regulator with a 2.9V or 1.5V with EXTVCC to 16V input range featuring LT®7170. The output can supply up to 20A continuous load current. The Silent Switcher® regulator structure is incorporated into the LT7170 to minimize EMI and reduce PCB layout sensitivity. It also integrates digital power system management functionality, allowing for programmability and telemetry with a PMBus/I2C compliant serial interface. This evaluation board is designed for 1.0V output with a switching frequency set at 1MHz. The controlled on-time valley current-mode control with 25ns typical minimum on-time enables a high switching frequency at a low output voltage with excellent transient response in a small overall solution size. EVAL-LT7170-AZ has EMI filters installed for improved conducted and radiated EMI performances.
- 1.0V default output voltage
- 1MHZ switching frequency
- 87.1% efficiency at VIN = 12V, IOUT = 10A
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | EVAL-LT7170-AZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 12486.37 |
| 3-5 | ₹ 12358.95 |
| 5-10 | ₹ 12104.13 |
| 10+ | ₹ 11849.31 |
Bulk discount will be automatically applied during checkout based on quantity.
