Description
Product Overview

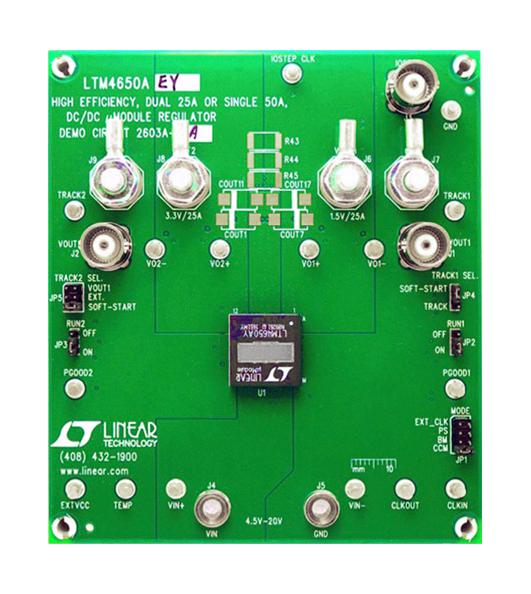

DC2603A-A demonstration circuit features the LTM4650AEY-1, the high efficiency, high density, dual 25A, single 50A switch mode step-down power module regulator. The input voltage is from 4.5V to 16V. The output voltage is programmable from 0.6 to 5.5V. DC2603A-A can deliver 25A maximum current from each channel. The board is designed with minimum components to demonstrate this high efficiency, high-density ?Module®. Output current derating is necessary for certain VIN, VOUT, and thermal conditions. The board operates in continuous conduction mode in heavy load conditions. For high efficiency at low load currents, the MODE jumper (JP1) selects the pulse-skipping mode for noise-sensitive applications or Burst Mode® operation in less noise-sensitive applications. Two outputs can be connected in parallel for a single 50A output solution with optional jumper resistors. The board allows the user to program how its output ramps up and down through the TRACK/SS pin.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC2603A-A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 12418.8 |
| 3-5 | ₹ 12292.07 |
| 5-10 | ₹ 12038.63 |
| 10+ | ₹ 11785.18 |
Bulk discount will be automatically applied during checkout based on quantity.
