Description
Product Overview

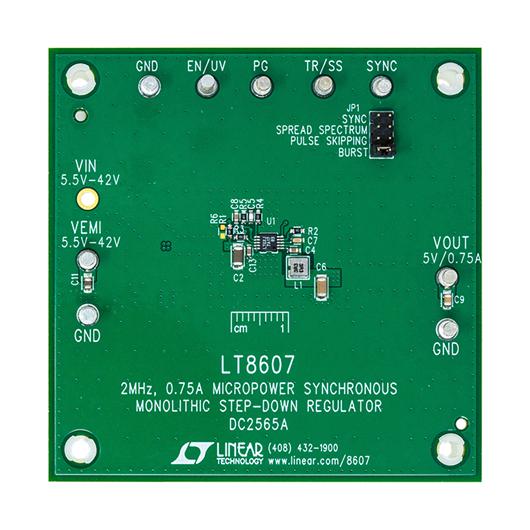

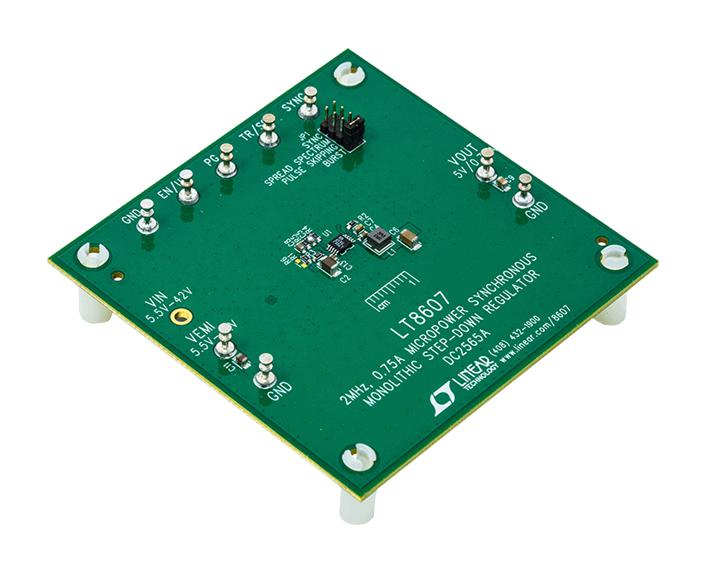

DC2565A demonstration circuit is a 42V, 0.75A micropower synchronous step-down regulator featuring LT®8607. It is designed for 5V O/P from a 5.5V to 42V I/P. The wide I/P range allows a variety of input sources, such as automotive batteries and industrial supplies. The LT8607 is a compact, high efficiency, high speed synchronous monolithic step-down switching regulator that consumes less than 3?A of quiescent current when O/P is regulated at 5V. Top and bottom power switches, compensation components and other necessary circuits are inside LT8607 to minimize external components and simplify design. The SYNC pin on board is grounded by default for low ripple Burst Mode® operation. Move JP1 to PULSE SKIPPING position can change operation mode to pulse-skipping operation. Once JP1 is on SPREAD SPECTRUM position, VCC is applied to SYNC pin for low EMI spread spectrum operation. To synchronous to an external clock, move JP1 to SYNC and apply the external clock to the SYNC turret.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC2565A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 10691.77 |
| 3-5 | ₹ 10582.67 |
| 5-10 | ₹ 10364.47 |
| 10+ | ₹ 10146.27 |
Bulk discount will be automatically applied during checkout based on quantity.
