Description
Product Overview

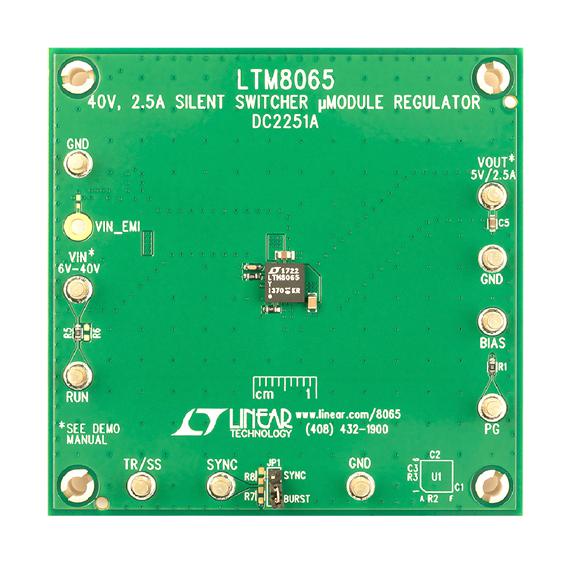

DC2251A demonstration circuit is a 40V, 3.5A peak, 2.5A continuous step-down ?Module® regulator featuring the LTM®8065. The demo board is designed for 5V output from a 6V to 40V input. The wide input range allows a variety of input sources, such as automotive batteries and industrial supplies. The user adjustable features of the LTM8065 such as output voltage, switching frequency, soft-start and power good can be changed on DC2251A simply by modifying the appropriate resistors and/or capacitors. The LTM8065 can be programmed to different operation modes. The SYNC pin on the demo board is grounded (JP1 at BURST position) by default for low ripple Burst Mode® operation. Pulse-skipping mode, spread spectrum mode or synchronization mode can be selected respectively by moving JP1 shunt to SYNC position and adding different signals to SYNC terminal.
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | DC2251A |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 12418.8 |
| 3-5 | ₹ 12292.07 |
| 5-10 | ₹ 12038.63 |
| 10+ | ₹ 11785.18 |
Bulk discount will be automatically applied during checkout based on quantity.
