Description
Product Overview

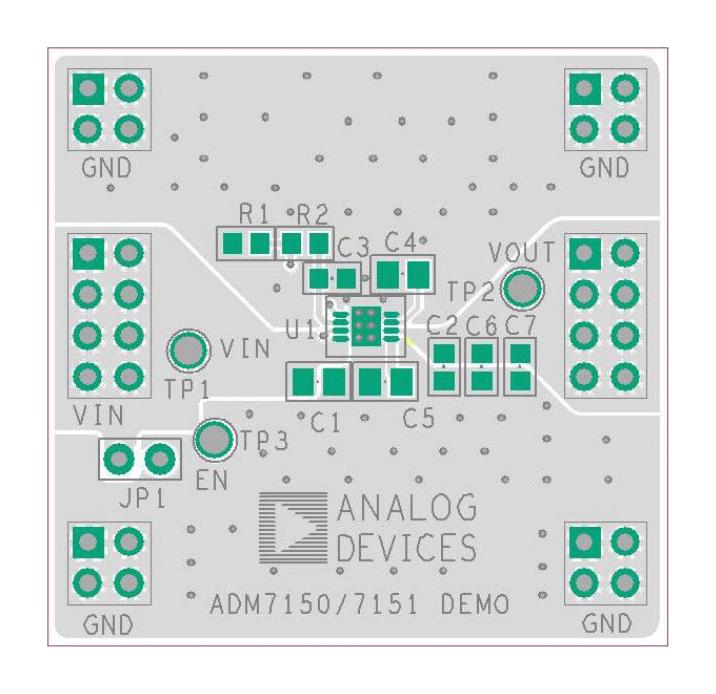

ADM7151CP-02-EVALZ is an evaluation board used to demonstrate the functionality of the ADM7151 linear regulator. Perform simple device measurements, such as line and load regulation, dropout, and ground current, can be demonstrated with just a single voltage source, a voltmeter, an ammeter, and load resistors.
- Input voltage range from 4.5V to 16V
- 800mA maximum output current
- Initial accuracy is ±1%
- Adjustable output version
- 1.2µVRMS total integrated noise from 100Hz to 100KHz and 2µVRMS from 10Hz to 100KHz
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADM7151CP-02-EVALZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9385.13 |
| 3-5 | ₹ 9289.36 |
| 5-10 | ₹ 9097.83 |
| 10+ | ₹ 8906.29 |
Bulk discount will be automatically applied during checkout based on quantity.
