| ₹ 9551.16 includes GST and import duties. | |
| B2B customers can avail ₹ 1456.55 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description
Product Overview

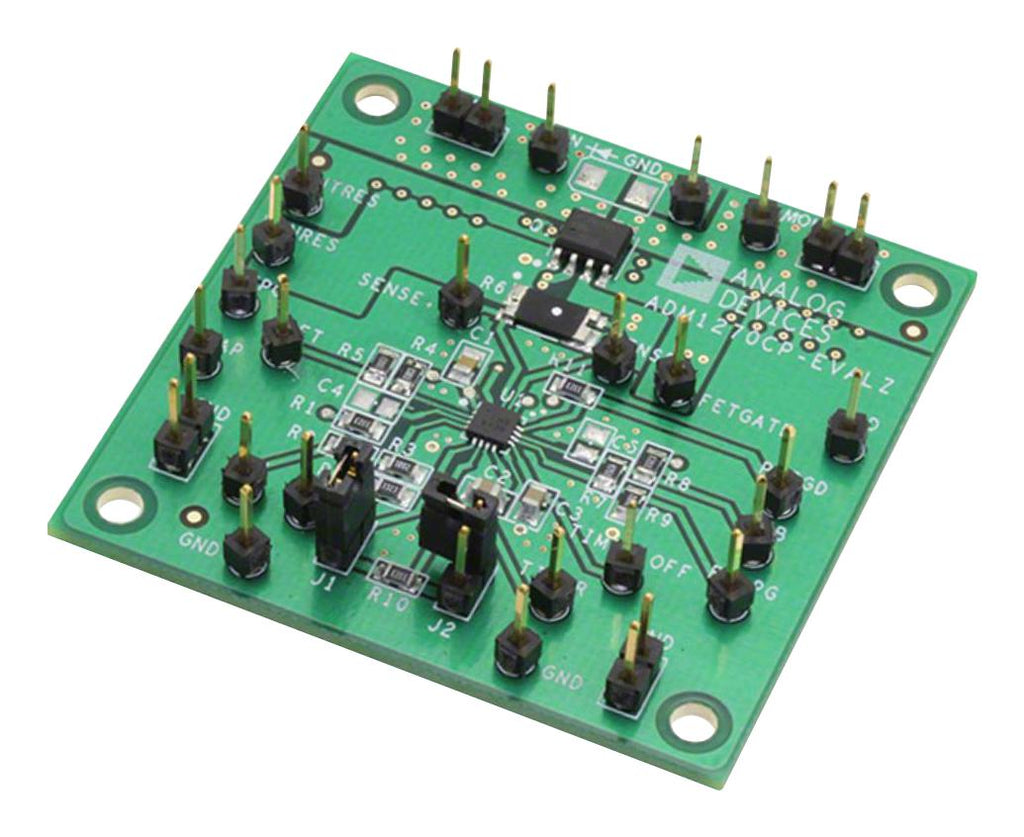

ADM1270CP-EVALZ is an evaluation board used to demonstrate the functionality of the ADM1270 high-voltage input protection device in 16-lead, 3mm x 3mm LFCSP package.
- Controls supply voltages from 4V to 60V
- Gate drive for low voltage drop reverse supply protection
- Gate drive for P-channel FETs
- Inrush current limiting control
- Adjustable current limit
- Foldback current limiting
- Automatic retry or latch-off on current fault
- Programmable current-limit timer for safe operating area (SOA)
- Power-good and fault outputs
- Analog undervoltage (UV) and overvoltage (OV) protection
Notes
ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
Product details
Other details
| Brand | ANALOG DEVICES |
| Part Number | ADM1270CP-EVALZ |
| Quantity | Each |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 9360.14 |
| 3-5 | ₹ 9264.63 |
| 5-10 | ₹ 9073.6 |
| 10+ | ₹ 8882.58 |
Bulk discount will be automatically applied during checkout based on quantity.
