ANALOG DEVICES ADES1754EVKIT# Evaluation Kit, ADES1754GCB/V+, Battery Management System, Power Management - Battery

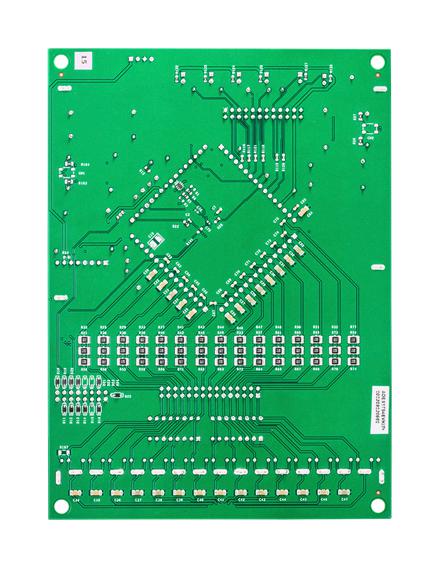

ADES1754EVKIT# is an evaluation board for the ADES1754/ADES1755/ADES1756 14-channel battery stack monitoring systems. The ADES1754 EV kit is coupled with a MAX17851 EV kit to establish communication with a host PC. Once communication is established, control of the ADES1754 EV kit is executed through the EV kit GUI on the host PC. The GUI is Windows XP®-, Windows Vista®-, Windows®7-, and Windows 10-compatible and is available through your local Analog Devices representative. The ADES1754 EV kit design provides a convenient platform for evaluating the features and functions of the IC, in addition to the IC�s electrical parameters. The EV kit with vertical communication connectors (TXLP-CONN, RXLP-CONN, TXUP-CONN, and RXUP-CONN) and snap-and-lock battery pack connector enables the user to quickly build and evaluate a system with up to 32 daisy chain devices.

• Provides a convenient platform for evaluating the features and functions of the ADES1754
• Versatile GUI interface for features evaluation
• Plug-and-play architecture for rapid system prototyping
• Force and sense pin headers for precision measurement assessment
• Built-in resistor stack for battery emulation
• Proven PCB layout fully assembled and tested

Contents

1x ADES1754EVKIT# evaluation board, 2x Two Wire CLIK�-Mate 2-wire loop cable 3 inches, 14x shunt 2.54mm pitch open top grip black, 2x two wire CLIK-Mate crossover cable 6 inches.
