Product Overview

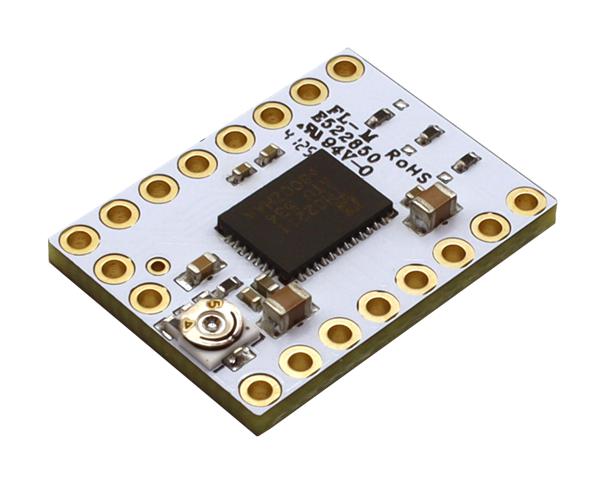

TMC2211STEPSTICK is a TMC2211 Smart pin-configurable integrated stepper driver board. The board allows an uncomplicated first evaluation of the TMC2211 and provides full control of all its features. The TMC2211 is a smart pin-configurable, high-performance, stepper motor controller and driver IC. It features the industry’s most advanced stepper motor driver based on a 256-microstep, built-in indexer and fully integrated 65V, 3A MAX H-bridges. It also includes nondissipative integrated current sensing (ICS). Current ratings per H-Bridge (25°C, typ): 2ARMS (2.8A sine peak) at VS = 24V, 1.7ARMS (2.4A sine peak) at VS = 48V.
- Single-supply voltage range from 4.5V to 65V DC
- 2.2V to 5.5V logic I/O supply voltage
- TMC2211STEPSTICK is intended to be used as a pluggable board
Product details
| Application Sub Type |
Stepper Motor Controller/Driver |
| Kit Application Type |
Power Management - Motor Control |
| Kit Contents |
Evaluation Board TMC2211ATU+ |
| SVHC |
No SVHC (04-Feb-2026) |
| Silicon Manufacturer |
Analog Devices |
| Silicon Core Number |
TMC2211ATU+ |
| Product Range |
- |
Other details
| Brand |
ANALOG DEVICES |
| Part Number |
TMC2211STEPSTICK |
| Quantity |
Each |
| Technical Data Sheet (1.08MB) EN |
View or download |
