Description
Product Overview

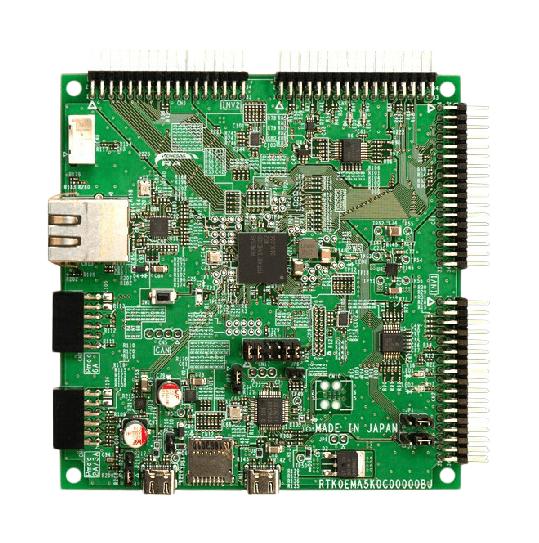

RTK0EMA5K0C00000BJ is a CPU board (MCB-RA8T1) for motor control evaluation. By using this product in combination with an inverter board, motor control using RA8T1 can be easily performed.
- 480MHz CPU max operating frequency, 32-bit bit count, 224 pin BGA package, 2MB/1MB ROM/RAM
- MCU input: clock 24MHz (Generate with external crystal oscillator)
- DC 5V power supply (power is supplied from compatible inverter board or from USB connector)
- J-Link-OB (Onboard debugger circuit)
- Inverter board (2 pair) connector, USB connector for J-Link OB, USB connector for RA8T1
- Ethernet and microSD card connector and through hole for CAN communication
- SCI connector for Renesas Motor Workbench communication
- 20 pin through hole for Arm debugger, Pmod connectors (Type6A + Type2A/3A)
- MCU reset switch and user-controllable LED x4, Power LED x1
- Board size is 109mm (W) x 109mm (L)
Contents
CPU Board (RTK0EMA5K0C00000BJ), USB cable, Screw x4, Standoff x4.
Product details
| Application Sub Type | Motor Control |
| Kit Application Type | Power Management - Motor Control |
| Kit Contents | CPU Board R7FA8T1AHECBD, USB Cable, Screw x 4, Standoff x 4 |
| SVHC | No SVHC (25-Jun-2025) |
| Silicon Manufacturer | Renesas |
| Silicon Core Number | R7FA8T1AHECBD |
| Product Range | - |
Other details
| Brand | RENESAS |
| Part Number | RTK0EMA5K0C00000BJ |
| Quantity | Each |
