| ₹ 5767.06 includes GST and import duties. | |
| B2B customers can avail ₹ 879.48 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

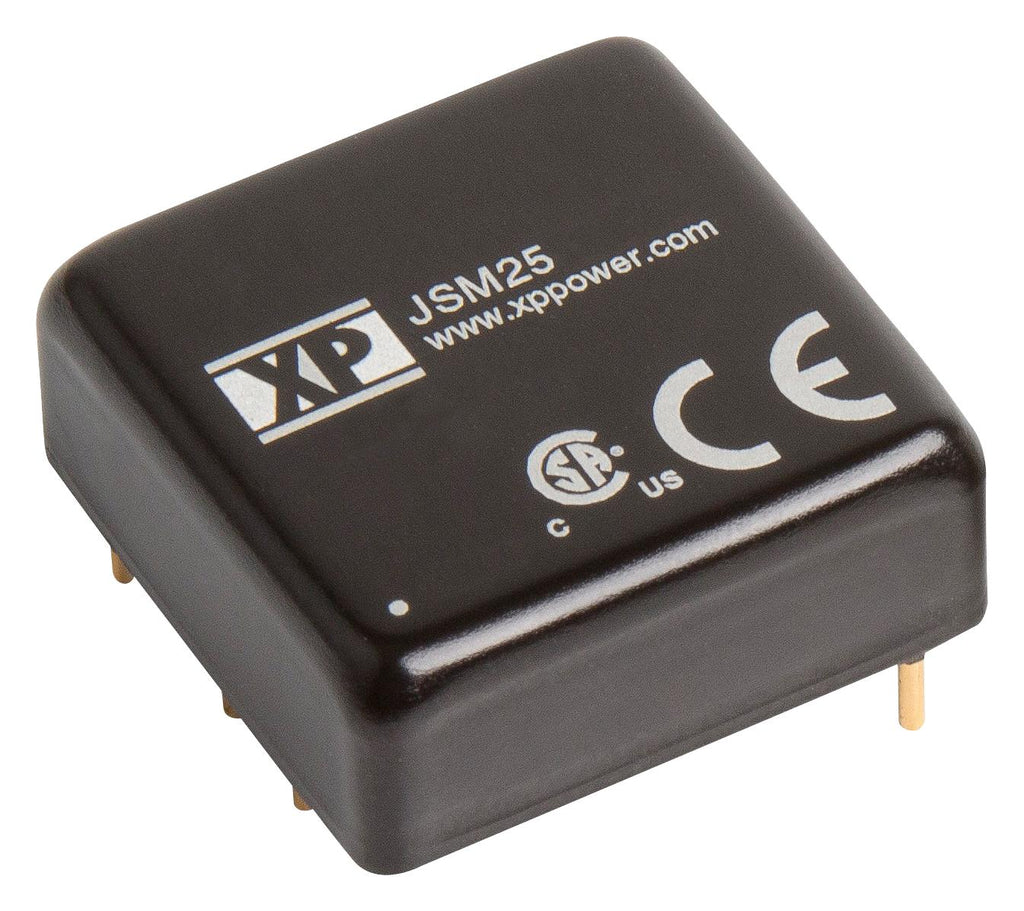

The JSM25 has a 25 Watts output with a 2:1 input range to accommodate nominal inputs of 12VCD (9V to 18VDC), 24VDC (18V to 36VDC) and 48VDC (36V to 75VDC). The series is housed in a high power density 1 x 1 x 0.4" (25.4 x 25.4 x 10.16mm) six-sided metal case with pins for PCB mounting.
- Regulated Single & Dual Outputs
- 2:1 Input Range
- 1" x 1" Package
- 1500VDC Isolation
- Operating Temperature -40°C to 105°C
- ITE Safety Approvals
- Remote On/Off
- High Power Density
- Six Sided Metal Case
- See Technical Note for information about XP Power's plans for the UKCA Marking
Power Management, DC, DC Converters
Other details
| Brand | XP POWER |
| Part Number | JSM2524D15 |
| Quantity | Each |
| Technical Data Sheet EN |  |
| Technical Notes & Articles EN | |
| Certificate of Conformity EN | |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 5651.72 |
| 3-5 | ₹ 5594.05 |
| 5-10 | ₹ 5478.71 |
| 10+ | ₹ 5363.37 |
Bulk discount will be automatically applied during checkout based on quantity.
