- Low cost
- Fully regulated outputs
- 2:1 Input Range
- Operating temperature range -40°C to +100°C
- 1500 VDC Isolation
Product details
| Output Power Max |
3W |
| Input Voltage DC Min |
9V |
| DC / DC Converter Mounting |
Through Hole |
| Output Voltage - Output 2 |
- |
| Output Current - Output 2 |
- |
| Depth |
31.75mm |
| Width |
20.32mm |
| Product Range |
JCB Series |
| DC / DC Converter Type |
DIP |
| Approvals & Standards |
- |
| Output Voltage - Output 3 |
- |
| Output Voltage - Output 1 |
24V |
| Output Current - Output 3 |
- |
| No. of Outputs |
1 Output |
| DC / DC Converter Output Type |
Fixed |
| Input Voltage DC Max |
18V |
| Output Current - Output 1 |
125mA |
| Height |
10.16mm |
Other details
| Brand |
XP POWER |
| Part Number |
JCB0312S24 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |

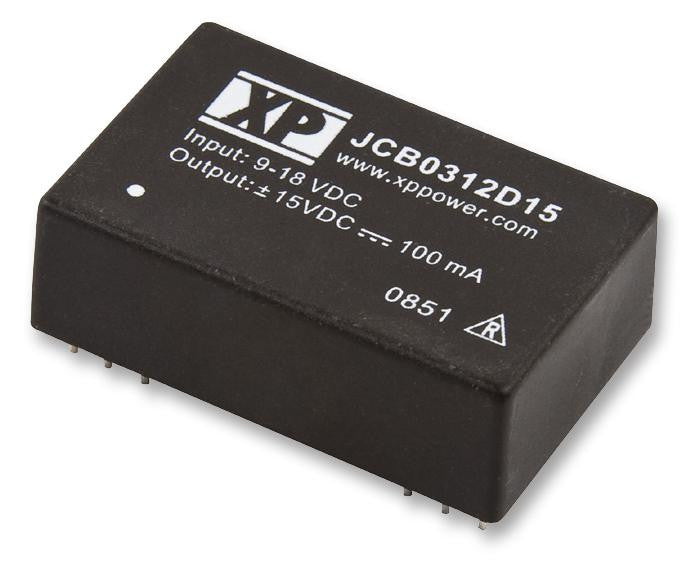

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
