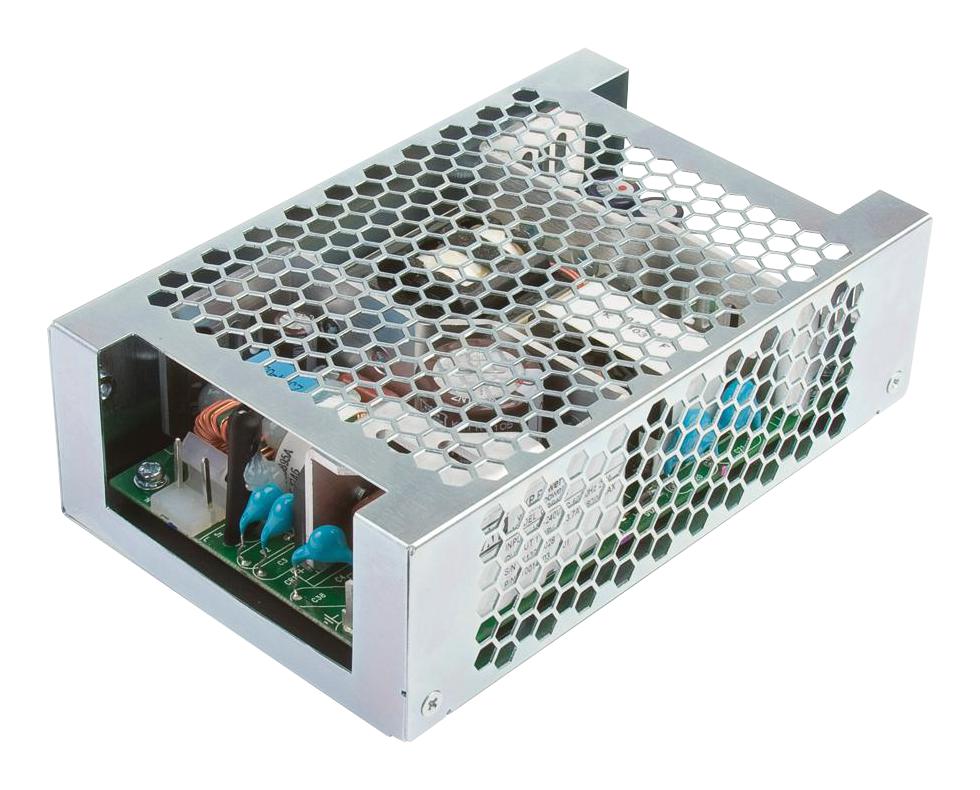

The GCS Series has been designed to minimise the no load power consumption and maximise efficiency in order to facilitate equipment design to the latest environmental legislation. Approved for Class I and Class II applications, this range of single output AC-DC power supplies are packaged in an industry standard 3" x 5" x 1.42" package and achieves EN55011/22 Level B emissions compliance whilst maintaining very low earth leakage currents, making them suitable for a wide range of 1U and other industrial, IT and medical applications The series has single output versions from 12V to 56VDC, dual fusing for compliance with IEC60601-1 and feature minimal excess heat generation as efficiencies reach 94%. They will deliver up to 350W of power over an operating range of -40°C and up to 70°C and are available with a number of cover options.
- Universal input
- 93% Typical efficiency
- 150W Forced Cooled
- 110W Convection Cooled
- IT & Medical Safety Approvals (Class I & II)
- Operating Temperature -40°C to 70°C
- Operating Temperature -40°C to 70°C
- See Technical Note for information about XP Power's plans for the UKCA Marking
Product details
| Power Supply Applications:
ITE & Medical
|
| No. of Outputs:
1Outputs
|
| Output Power Max:
187W
|
| Output Voltage - Output 1:
24VDC
|
| Output Current - Output 1:
6.3A
|
| Output Voltage - Output 2:
-
|
| Output Current - Output 2:
-
|
| Output Voltage - Output 3:
-
|
| Output Current - Output 3:
-
|
| Output Voltage - Output 4:
-
|
| Output Current - Output 4:
-
|
| Input Voltage VAC:
85V AC to 264V AC
|
| Power Supply Output Type:
Adjustable, Fixed
|
| Product Range:
GCS Series
|
Other details
| Brand |
XP POWER |
| Part Number |
GCS180PS24-C |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
