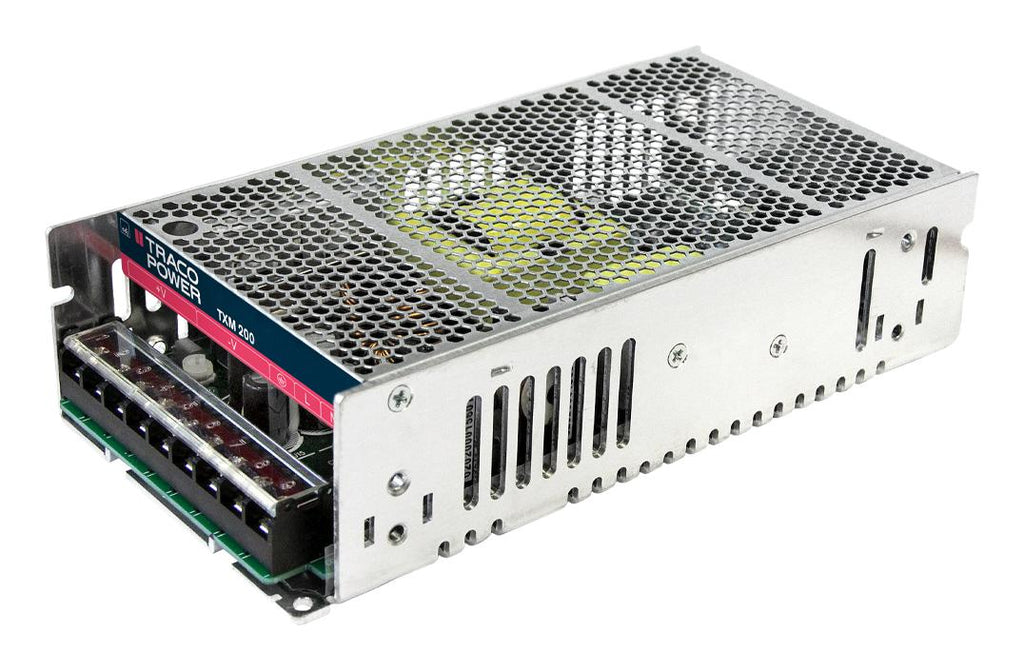

TXM 200 series is a family of 200W encased AC/DC power supplies designed for cost critical applications. It extends the existing TXM series which ranged from 15 to 150Watt with an additional 200Watt series. With a compact metal case and screw terminal block connections, they are easy to install in any equipment. They also feature an universal input and comply with EN 55032 class B and the latest IEC/UL 60950-1 edition to cover a wide range of applications. Complies with EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safety standards. It features protection class I (prepared): connection to PE, pollution degree PD 2, overvoltage category OVC II.
- Compact 200W metal cased power supplies
- Fully convection cooled power supplies
- Cost efficient design
- High operating temperature up to 65°C
- Aluminium housing material
- Active power factor correction >0.95
- Withstand 300VAC surge input for 5s
- Adjustable output voltage, continuous automatic recovery short circuit protection
- Overcurrent limitation
- 3-year product warranty, switching frequency of 80 - 85KHz (PWM)
Other details
| Brand |
TRACO POWER |
| Part Number |
TXM 200-112 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
