Description

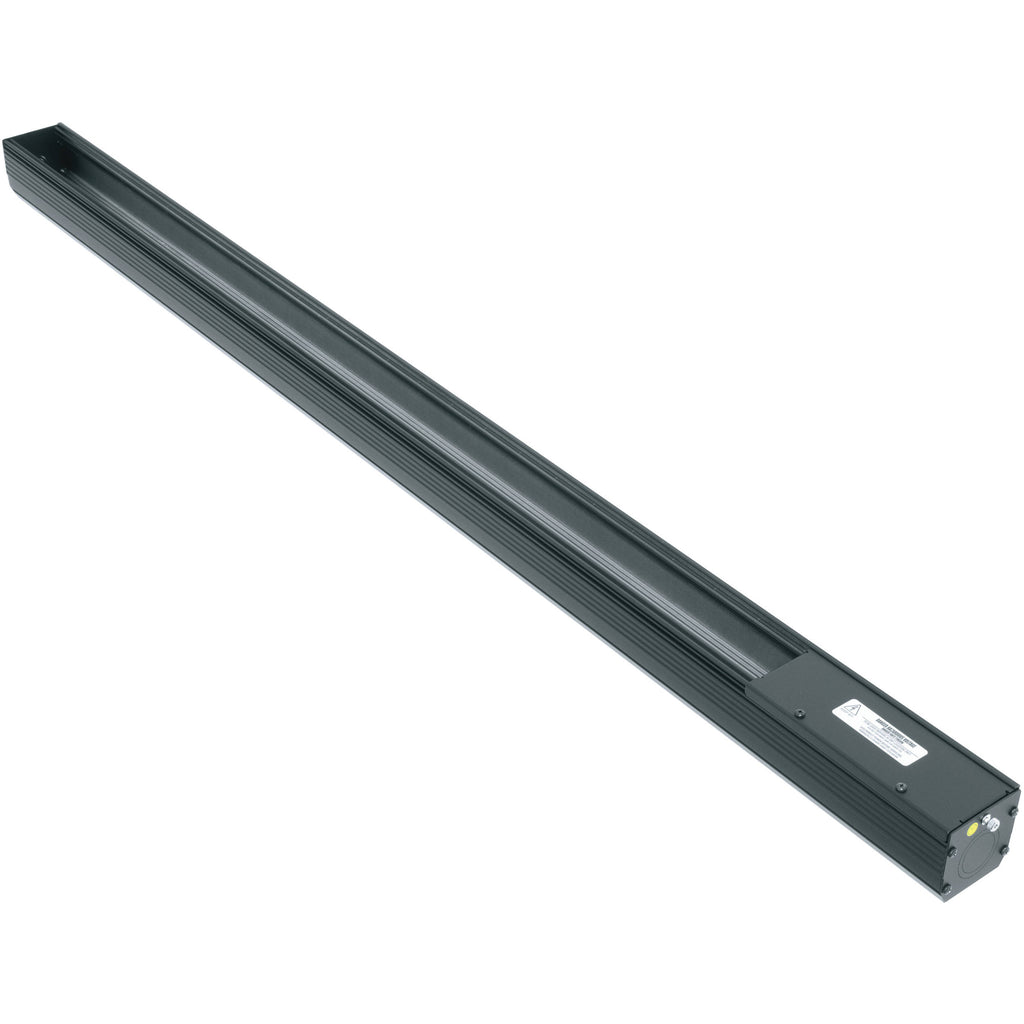

Middle Atlantic MPR-6A Overview
Designed to accommodate 3, 6, 8, or 9 duplex power modules, the Middle Atlantic MPR-3A Modular Raceway provides a rugged housing that allows the user to configure the right power distribution system for each application. Constructed of 18-gauge steel, this raceway features electrical knockouts for cable entry, an integral J-box with a removable cover, and abundant cable lacing points along both sides.
Lets to design and build a custom power distribution system to your specifications
Equipped with electrical knockouts (1/2" and 3/4") on both the ends
Lightweight raceway with back-mount support clip that allows mounting in any position on a vertical or horizontal axis
Raceway can be cut to any custom length of 2.0" (50.8 mm) increments
Modules can be positioned anywhere along the raceway in 2.0" (50.8 mm) increments
Basic and controlled (dry contact) power modules available in 15A, 20A, and 30A
USC-6R, MPR-SEQA, MPR-SEQ-1CA, or any maintained dry contact can be used for control
Standard and isolated ground modules
NEMA, IEC, Twist-lock, and Neutrik receptacles
Convenient genderless connectors ensure fast & safe assembly (no hardwired inter-chassis connections)
A open deep raceway, with no cross divider interference ensures fast and easy assembly
Threaded grooves along the length of extrusion allow attachment of cable management ties for low-voltage control
Multiple junction box options support different wiring applications and circuit termination capacity
Laser Knock-Outs (LKO) in end caps for power connections
Custom laser engraving available
RoHS and CE compliant
In the Box
- Middle Atlantic MPR-6A Modular Raceway
- Integral J-box With Cover
- 3 x Quick-Clip for Mounting
- Limited 3-Year Manufacturer Warranty
Middle Atlantic MPR-6A Specs
| Chassis | Length: 56.0" (1422.4 mm) |
| Module | Useable Mounting Space Using Integral J-Box 48.0" (1219.2 mm) |
Packaging Info
| Package Weight | 9.5 lb |
| Box Dimensions (LxWxH) | 60 x 7 x 5" |
