Description
Product Overview

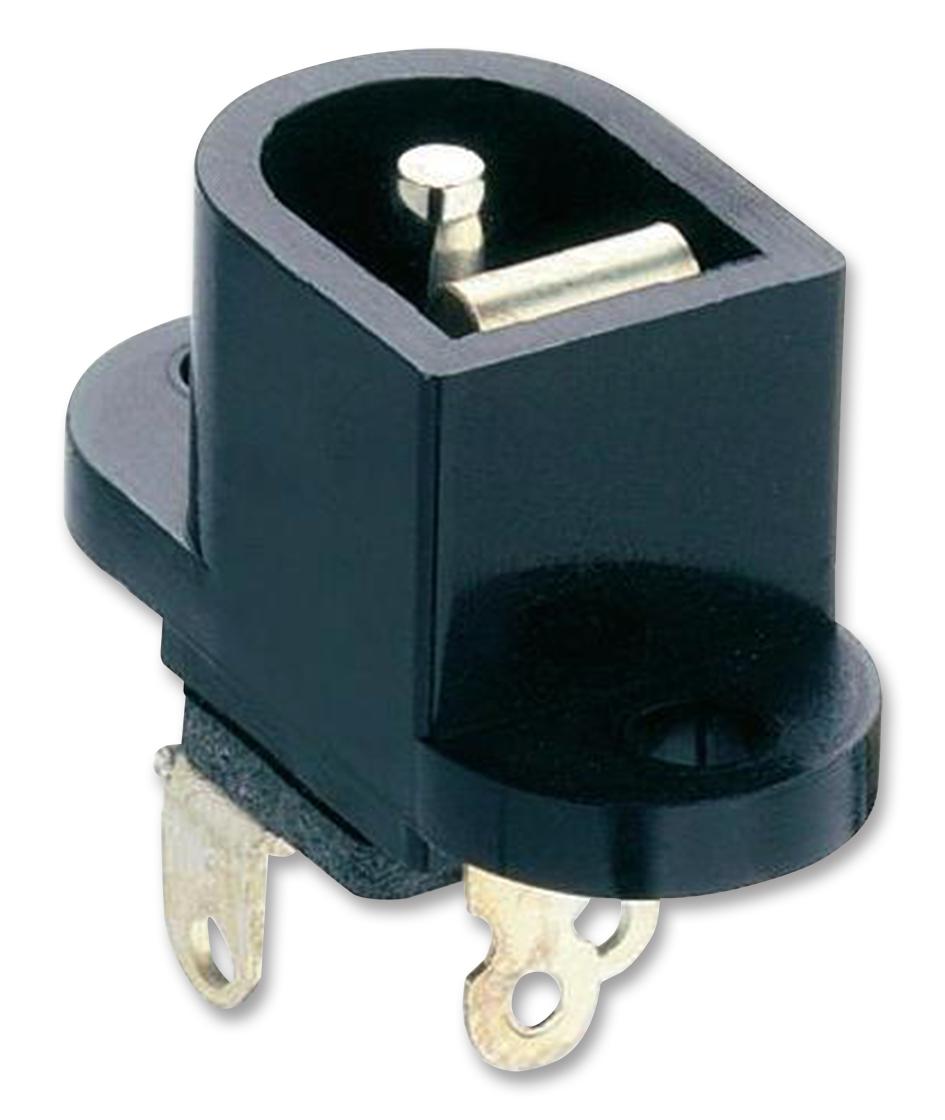

The NEB/J 21 is a 2-pole Power Supply Connector, straight version with fixing flange, break contact and solder eyes. UL94HB flame-rated POM insulating body, nickel/silver-plated copper alloy contacts, phenol formaldehyde (PF) insulation. The socket is suitable for use with 1633 02, NES/J 21, NES/J 21 W, NES/J 210 and XNES/J 210 power supply plugs.
- 4 to 20N Insertion force
- 3 to 15N Withdrawal force
- ≥5000 Mating cycles
- ≤30mΩ Contact resistance
- ≥100MΩ Insulation resistance
Applications
Industrial, Power Management
Product details
| Gender | Jack |
| Pin Diameter | 1.9mm |
| Connector Mounting | Panel Mount |
| Barrel Inner Diameter | - |
| Voltage Rating | 12V |
| SVHC | No SVHC (25-Jun-2025) |
| Current Rating | 500mA |
| Barrel Length | - |
| Contact Termination Type | Solder |
| Barrel Outer Diameter | 6.5mm |
| Product Range | - |
Other details
| Brand | LUMBERG |
| Part Number | NEB/J 21 |
| Quantity | Each |
| Technical Data Sheet (431.41KB) EN | View or download |
| Product Change Notice (622.95KB) EN | View or download |
