Description
Product Overview

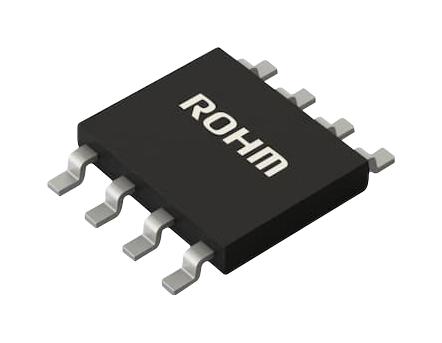

BV1HV050FJ-CE2 is a 1ch high-side switch for automotive applications. It has a built-in hiccup mode overcurrent protection function, thermal shutdown protection function, open load detection function, under voltage lockout function. It is equipped with a diagnostic output function for abnormality detection. Applications include resistance load, inductance load and capacitance load for automotive application.
- AEC-Q100 qualified, built-in hiccup mode overcurrent protection function (OCP)
- Built-in thermal shutdown protection function (TSD)
- Built-in under voltage lockout function (UVLO)
- Built-in open load detection function (OLD)
- Power supply voltage range from 4.5V to 28.0V
- ON-resistance is 50mohm typical at (Tj = 25°C)
- Standby current is 10µA typical at (Tj = 25°C)
- Operating current is 3.5mA typical at (VBB = 14V, VIN = 5V, VOUT = open)
- Dimension W (Typ) x D (Typ) x H (Max is 4.9mm x 6.0mm x 1.65mm
- Maximum junction temperature is +150°C, SOP-J8 package
Product details
Other details
| Brand | ROHM |
| Part Number | BV1HV050FJ-CE2 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 275.91 |
| 3-5 | ₹ 273.09 |
| 5-10 | ₹ 267.46 |
| 10+ | ₹ 261.83 |
Bulk discount will be automatically applied during checkout based on quantity.
