Description

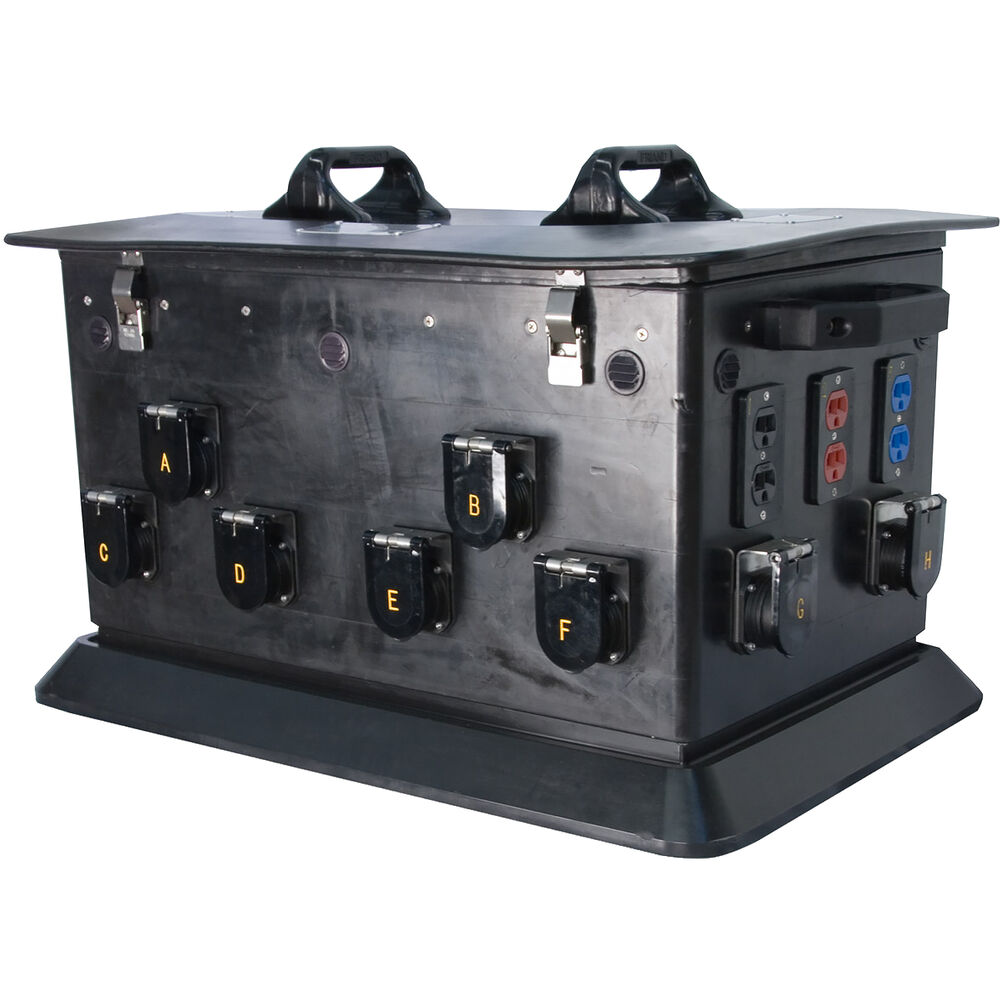

Lex Products Powerstation Jr. Overview
Whether at a concert or other live event, the Lex Products 400A Power Station Jr provides sufficient power to lights, speakers, and other devices. Feed the station from a generator or panel and supply overcurrent-protected power to eight industry-standard, 19-pin, 6-circuit lighting receptacles, as well as three duplex outlets for convenience.
Encased in a heavy-duty rubber enclosure, the station is fully insulated and resistant to shock, impact, and corrosion. Its stackable, compact form factor ensures convenient portability and storage. For added safety, the base elevates the power receptacles above ground level, and the breakers are mounted under a hinged lid.
- Five 16 Series, 400A, single-pole, single-wire, 600 VAC, BRBWG color-coded cover doors, cam-type inlets, and panel mount
- Eight LSC19, 6-circuit, 20A , 2-pole, 3-wire, 125 VAC, 19-pin locking receptacles, and panel mount
- Three NEMA 5-20 (Edison), 20A, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, and panel mount
- One 160 to 400A, 600 VAC triple-pole, adjustable electronic, branch-rated circuit breaker
- 51 20A, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
- 400A, 3-phase (HHHNG), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
- NEMA Type 1 environmental rating (indoor use)
Items Included
- Lex Products 400A Power Station Jr with 19-Pin and Duplex Receptacles
- Limited 1-Year Manufacturer Warranty
Additional Resources
No additional resources available
Lex Products Powerstation Jr. Specs
| Rating |
400 A, 3-Phase (HHHNG), 4-Pole, 5-Wire, 120/208Y VAC, 60 Hz
|
| Environmental Rating |
NEMA Type 1 (Indoor Use)
|
| Input/Output |
5 x CamLock BRBWG Inputs (600 VAC, 400 A)
8 x LSC19 Outputs (6 x 125 VAC, 20 A) 3 x NEMA 5-20 Outputs (125 VAC, 20 A) |
| Overcurrent Protection |
1 x 160-400 A, 600 VAC Circuit Breaker
51 x 20 A, 125 VAC Circuit Breaker |
| Cable Feed Through |
No
|
| Dimensions |
27.5 x 18.5 x 18" / 69.85 x 46.99 x 45.72 cm
|
| Weight |
85 lb / 38.5 kg
|
