Description

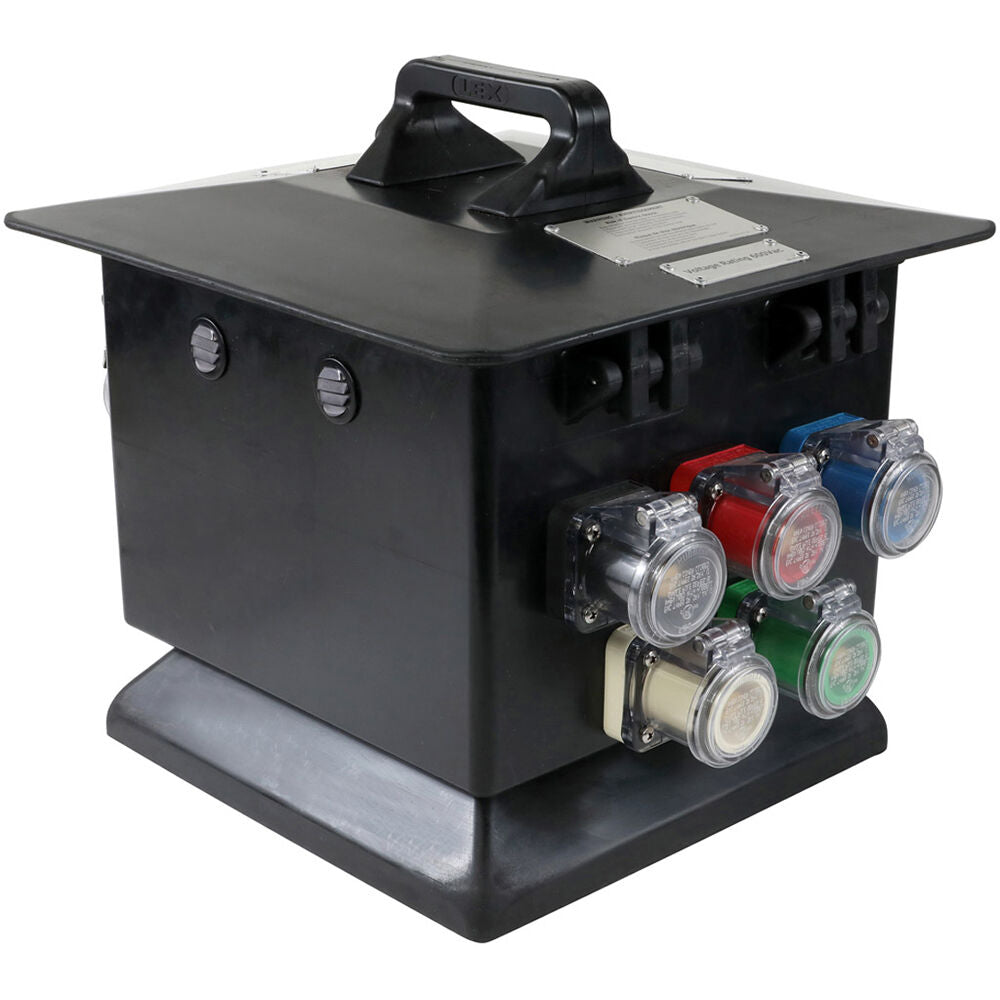

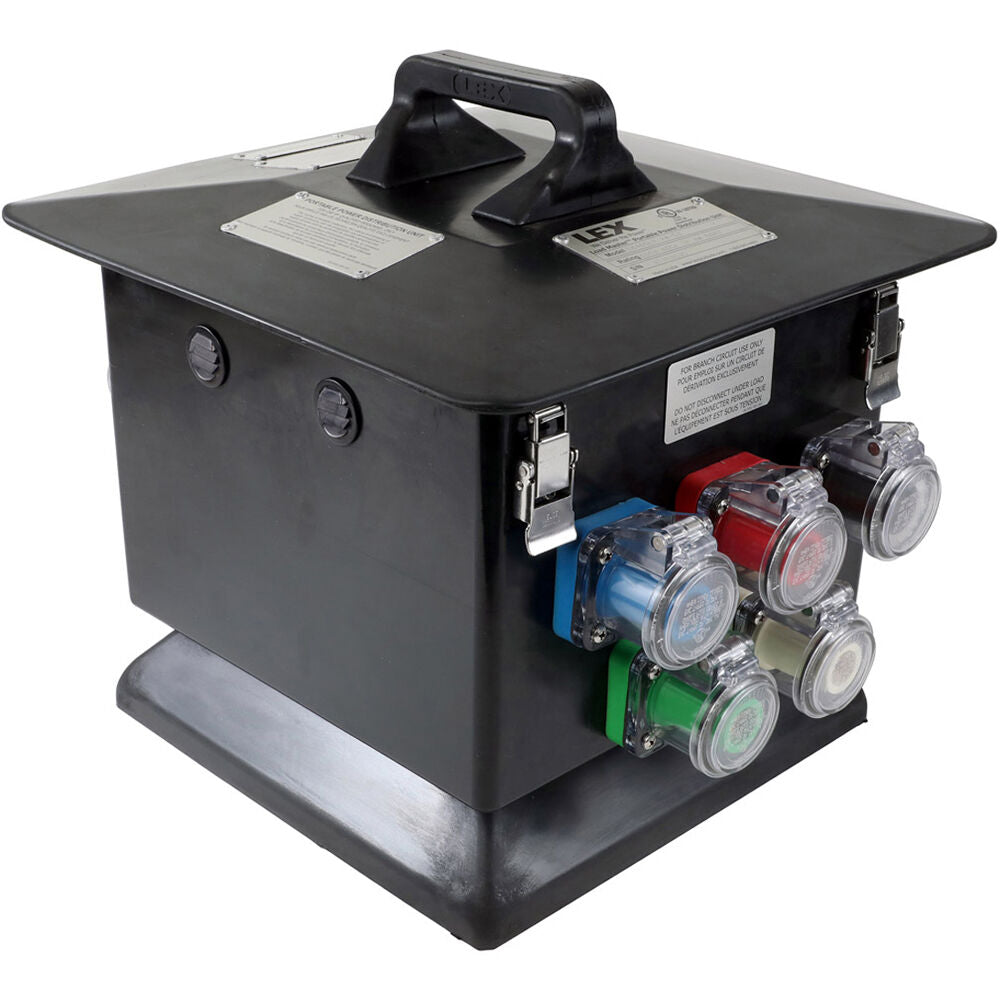

Lex Products Pagoda Load Master Overview
The 160-400A Pagoda Load Master from Lex Products has a three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz rating, and it allows you to provide a main disconnect and overcurrent protection for portable power distribution systems. The current trip setting is adjustable, allowing it to protect a variety of systems with different cable sizes. The unit is made of heavy-duty molded rubber that is fully insulated and resistant to shock, impact, and corrosion. These particular characteristics make it ideal for use in shipyards, emergency and disaster relief, construction, outdoor events, concert touring, and entertainment markets.
Provides a main disconnect and overcurrent protection for portable power distribution systems
The current trip setting is adjustable, allowing it to protect a variety of systems with different cable sizes
Adjustable trip setting allows the box to protect a variety of systems with different cable sizes
Electronic circuit breaker will not nuisance trip due to high ambient temperatures

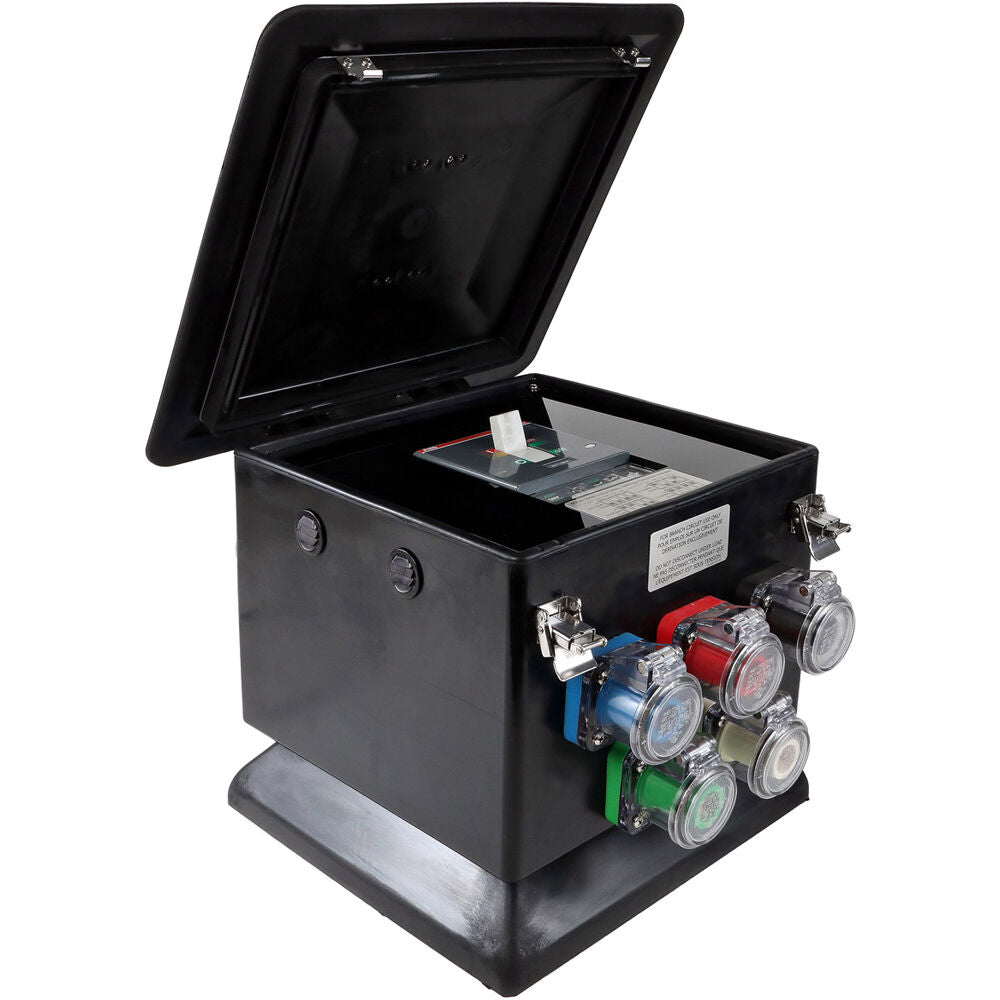

The circuit breaker is mounted under a hinged lid for enhanced protection
Elevated base keeps receptacles above ground level
Markets best served include shipyards, emergency, disaster relief, construction, outdoor events, concert touring, and entertainment
Stackable and compact for easy storage and convenient portability
Heavy-duty molded rubber enclosure is fully insulated and resistant to shock
In the Box
- Lex Products 160-400A Pagoda Load Master (120/208Y VAC)
- Limited 1-Year Warranty
Lex Products Pagoda Load Master Specs
Electrical
| AC Input Power | 120 to 208 VAC, 60 Hz |
| Current | 400 A (Operating) |
General
| Output Connector | 3-Pin XLR Female |
| Certifications | cUL, as per Manufacturer |
Physical
| Dimensions | 14.25 x 14.25 x 14.15" / 36.2 x 36.2 x 35.94 cm |
| Weight | 44 lb / 20 kg |
