| ₹ 478380.0 includes GST and import duties. | |
| B2B customers can avail ₹ 72952.95 ITC on this product | |
| 100% Secure Payments | 100% Genuine product | |
| The product is eligible for Free Shipping |
Description
Lex Products 100 Amp Pagoda Overview

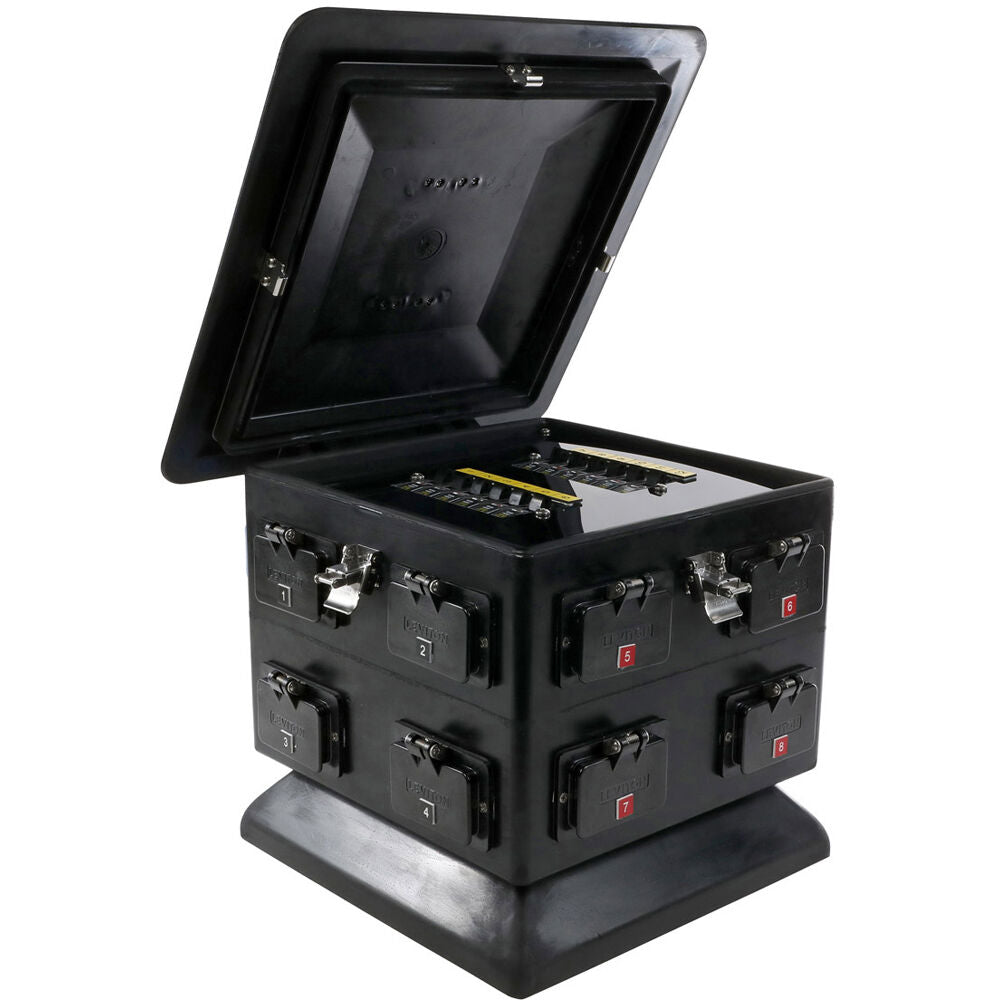

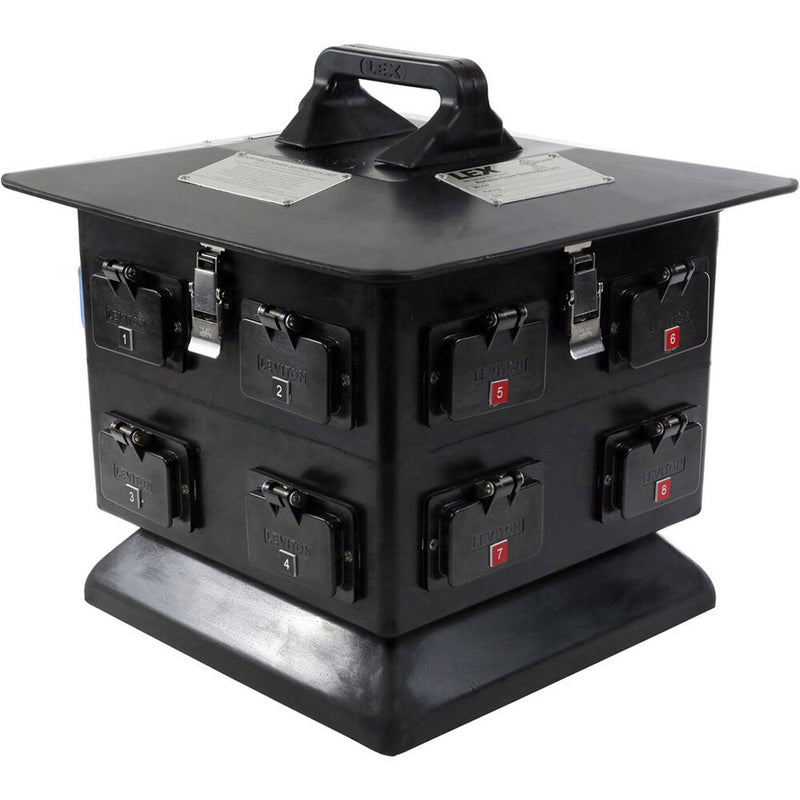

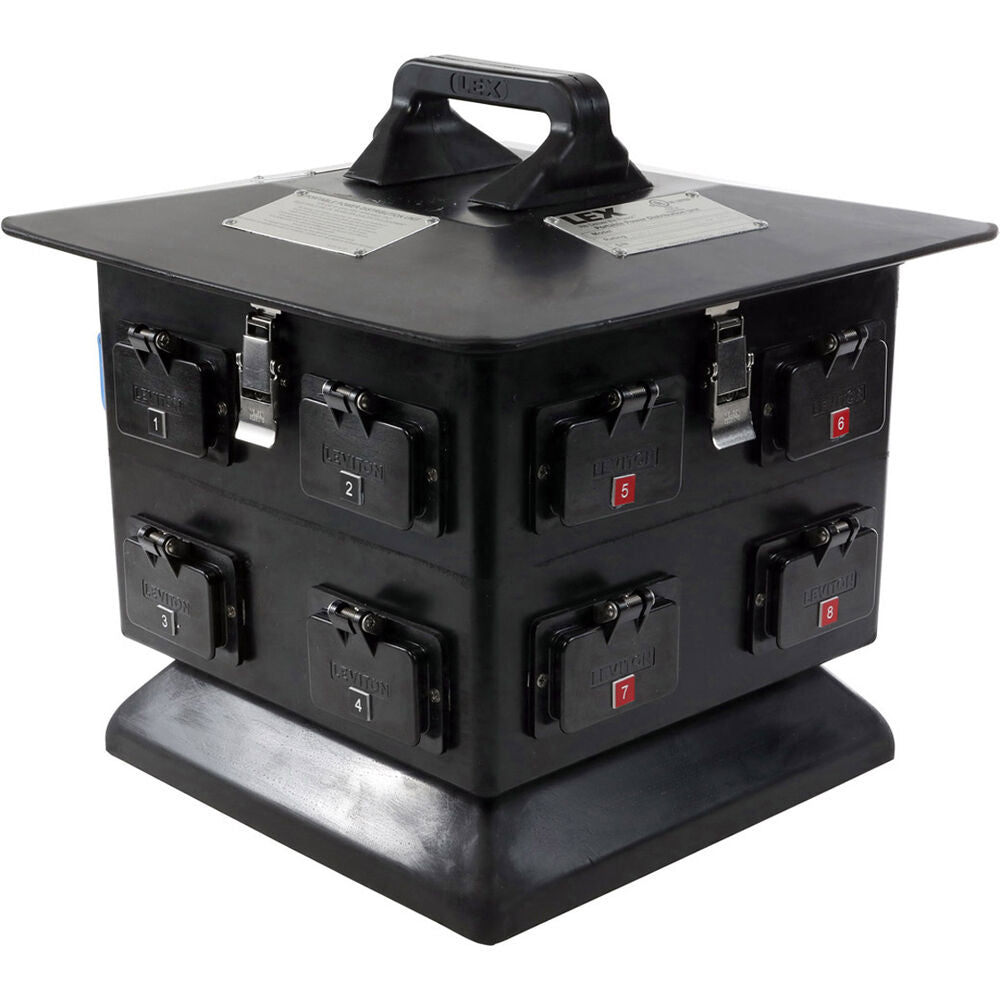

Made for use in live event and industrial scenarios, the weather-resistant 100A Pagoda to GFCI Duplex Receptacles from Lex Products is designed to provide 20A circuits to motion picture and television production, theatrical and live events, shipyards, and industrials scenarios. The unit has a heavy-duty molded rubber enclosure that's fully insulated and shock, impact, and corrosion resistant. The elevated base makes sure the receptacles are above ground level. Circuit breakers are located under the hinged lid for enhanced safety, while the unit is stackable and compact for easy storage and portability.

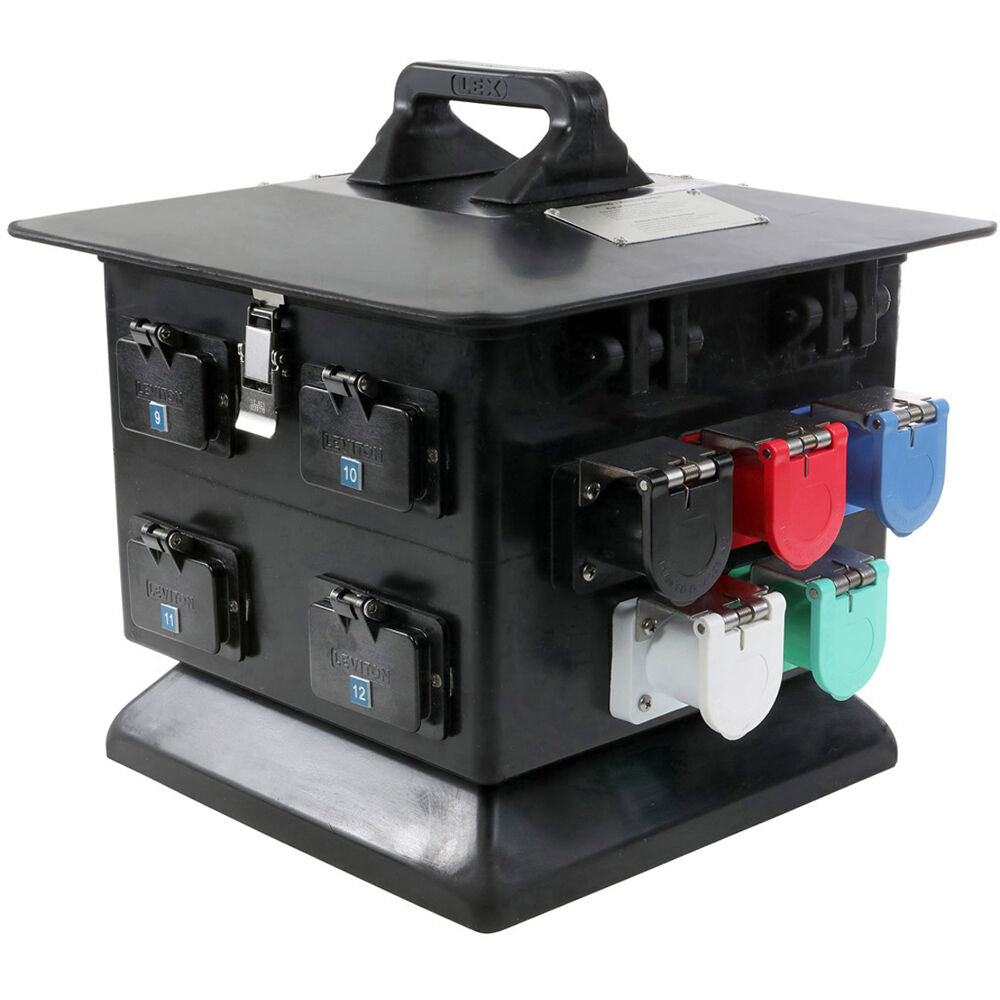

Input is comprised of one set of 16-Series, 400A, single-pole, single-wire, 600 VAC, BRBWG color-coded cover doors, cam-type inlets, and panel mount. The output contains twelve NEMA 5-20 GFCI, 20A, 2-pole, 3-wire, 125 VAC, straight-blade duplex receptacles, cover doors, and panel mount.
In the Box
- Lex Products 100A Pagoda to GFCI Duplex Receptacles
- Limited 1-Year Warranty
Lex Products 100 Amp Pagoda Specs
| AC Input Power | 120 to 208 VAC, 50 / 60 Hz |
| Current | 100 A (Operating) |
| Output Connector | Proprietary |
| Certifications | UL, as per Manufacturer |
| Dimensions | 14.25 x 14.25 x 14.15" / 36.2 x 36.2 x 35.94 cm |
| Weight | 32 lb / 14.5 kg |
| Package Weight | 39.225 lb |
| Box Dimensions (LxWxH) | 19.2 x 18.4 x 14.9" |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 468812.4 |
| 3-5 | ₹ 464028.6 |
| 5-10 | ₹ 454461.0 |
| 10+ | ₹ 444893.4 |
Bulk discount will be automatically applied during checkout based on quantity.
