Description
Elation Professional SIP650 Overview

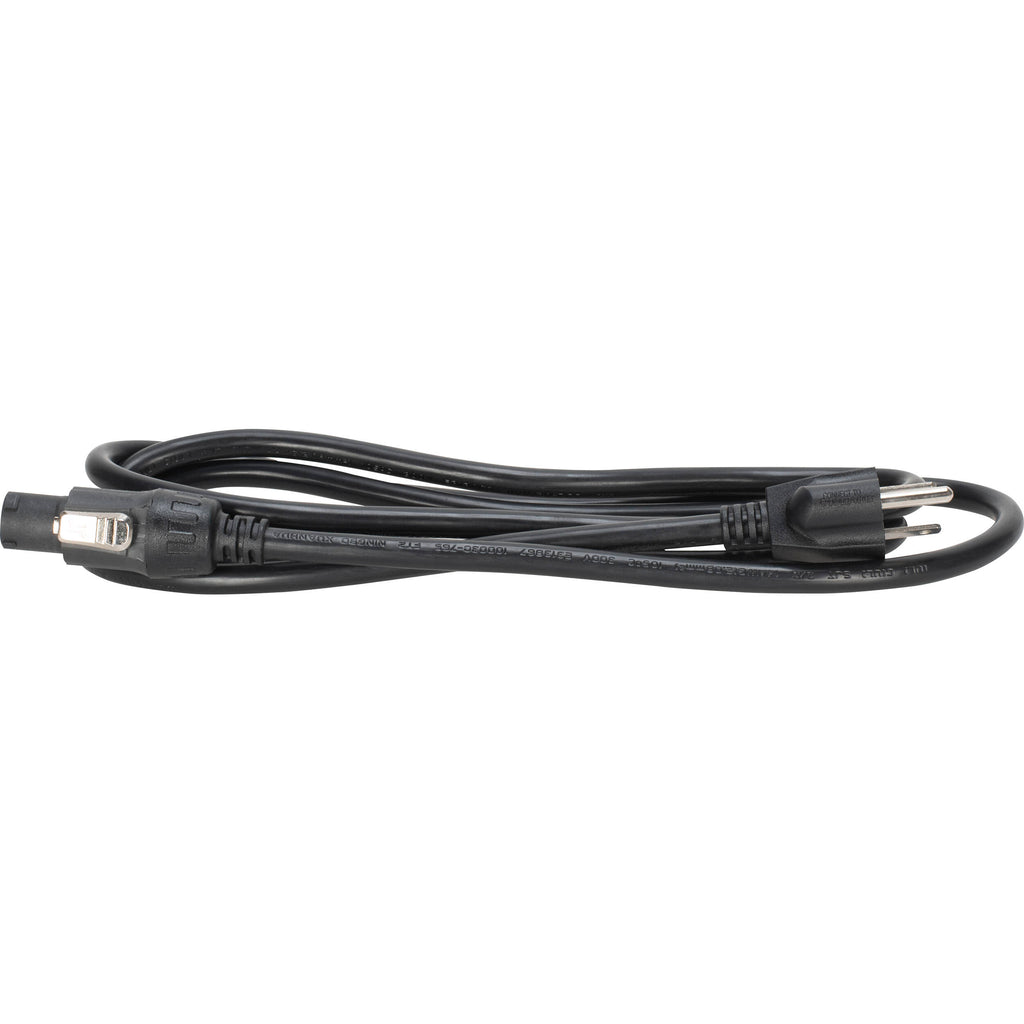

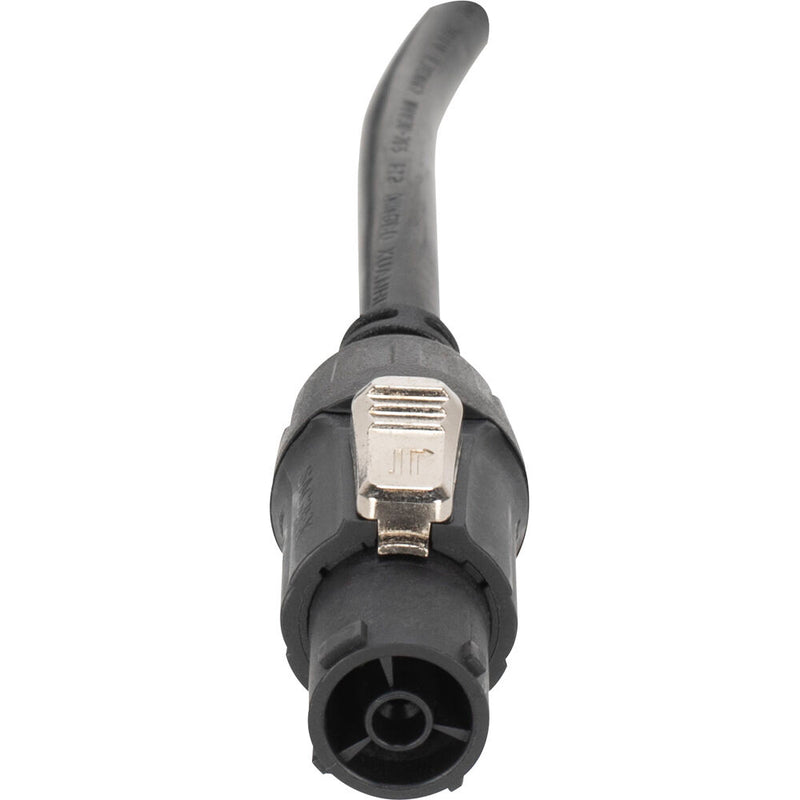

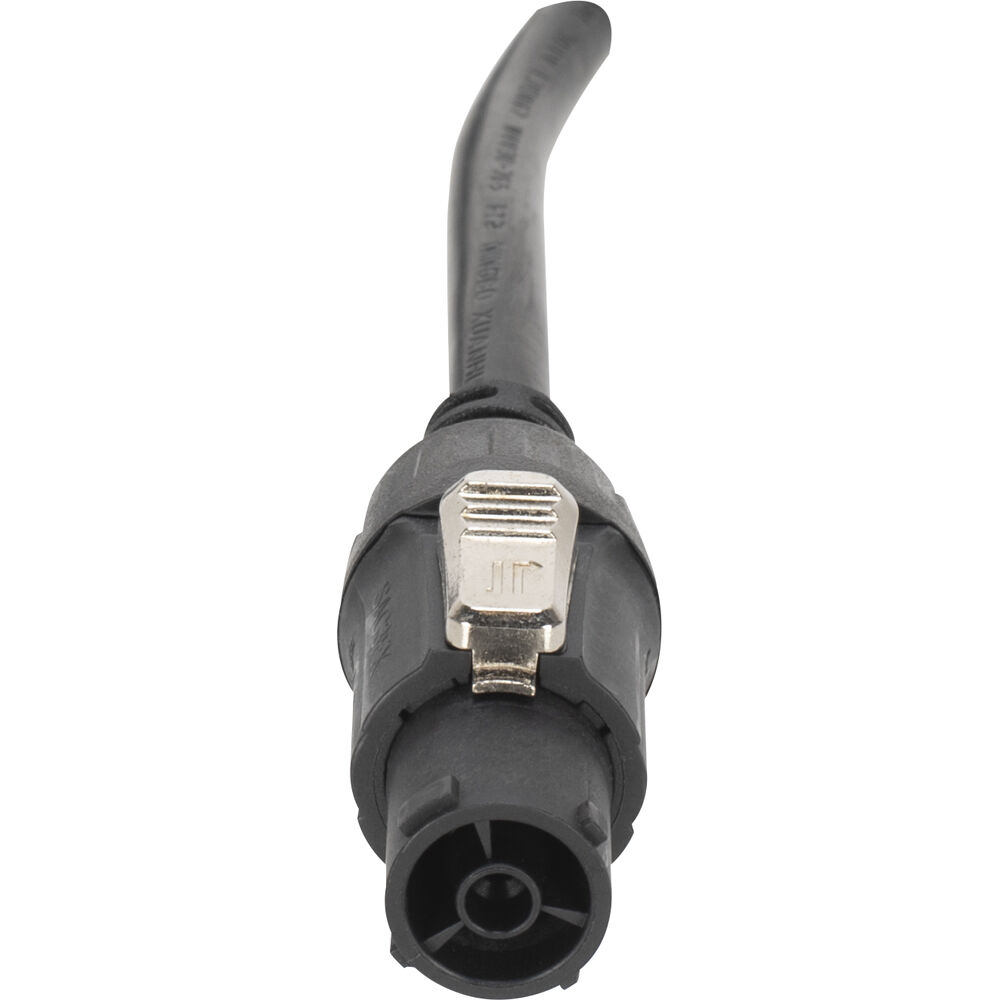

The Molded Locking IP65 Fixture Side Connector from Elation Professional is a 120V power cord for select fixtures. It has IP65 ingress protection and an IP20 male Edison plug.
Specifications
Contacts: 2+PE
Rated Current: 15A
Rated Voltage: 250 VAC VDE (300V AC UL)
Contact Resistance: ?5m?
Dielectric Strength: 4000 VDC (1600V/min AC UL)
Insulation Resistance: >1000M?
Service Life: >1000 Mating Cycles
Shell: PA
Contacts: Cu Alloy
Contact Surface Ag
Ingress Protection: IP65
Flame-retardant Grade UL94-V0
Temperature Range: -22 to 176°F / -30C to +80°C Standard: IEC61984/UL98
Rated Current: 15A
Rated Voltage: 250 VAC VDE (300V AC UL)
Contact Resistance: ?5m?
Dielectric Strength: 4000 VDC (1600V/min AC UL)
Insulation Resistance: >1000M?
Service Life: >1000 Mating Cycles
Shell: PA
Contacts: Cu Alloy
Contact Surface Ag
Ingress Protection: IP65
Flame-retardant Grade UL94-V0
Temperature Range: -22 to 176°F / -30C to +80°C Standard: IEC61984/UL98
UPC: 810087370039
In the Box
- Elation Professional Molded Locking IP65 Fixture Side Connector
- Limited 1-Year Manufacturer Warranty
Elation Professional SIP650 Specs
General
| Connector 1 |
Proprietary Male
|
| Connector 2 |
NEMA 5-15 Male
|
| Cable Length |
Not Specified by Manufacturer
|
