Description
- For Connecting DMX Lights and Effects
- 22 AWG
- Stranded Tinned Copper Conductors
- PVC Jacket

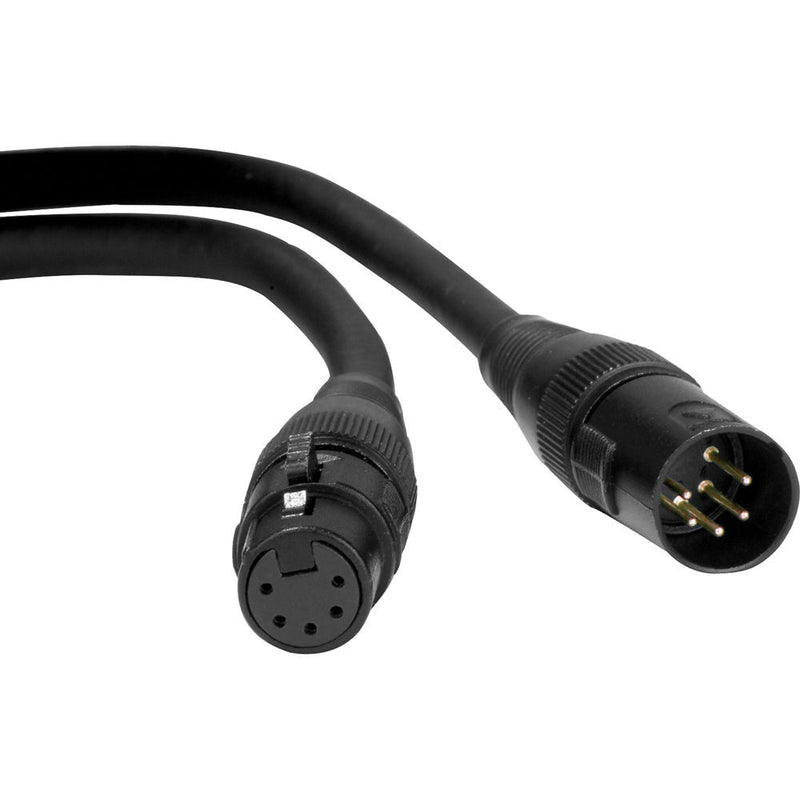

The 100' American DJ Accu-cable 5-pin DMX Cable is designed for connecting DMX controllers, DMX lights, and other 5-pin DMX devices into a stage lighting or effect system for live performance applications. The cables are constructed of 22 AWG stranded tinned copper conductors insulated by polyethylene within a PVC jacket.
UPC: 819730011206
| Construction | Tinned copper conductors Polyethylene twisted pair insulation Polyethylene inner jacket, Duofoil® (100% coverage) and cotton plus a tinned copper braid shield (85% coverage) PVC jacket |
| Pairs | 2 |
| Conductor | 4 |
| AWG | 22 |
| Stranding | 0.15 x 19 |
| Diameter | Conductor: 0.0354" Inner jacket: 0.055" Overall: 0.295" |
| Conductor | TC-tinned copper |
| Insulation | PE polyethylene |
| Lay Length | 1.1" |
| Jacket Material | Inner: PE-polyethylene Outer: PVC-polyvinyl chloride |
| Outer Shield | Trade name: Duofoil Type: Tape/Braid |
| Outer Shield Material | Layer Number:1, Material Trade Name: Dufoil®, Type: Tape, Material: Aluminum Foil-Polyester, Coverage %: 100 Layer Number: 2, Material Trade Name: Dufoil®, Type: Braid, Material: TC-Tinned Copper, Coverage %: 85 |
| Mechanical | |
|---|---|
| Operating Temperature Range | -22 to 167°F (-30 to 75° C) |
| Minimum Bend Radius | 3.5" |
| Pulling Tension | Maximum 22 lb (10 kg) |
| Length | 100' (30.5 m) |
| Electrical | |
|---|---|
| Impedance | 110 ? |
| Capacitance | Conductor to conductor at 1 kHz: 12.5 pF/ft Conductor to conductor and shield: 23 pF/ft |
| Velocity of Propagation | 76% |
| Delay | 1.6 Nanoseconds per foot |
| DC Resistance | Conductor at 20°C: 24 ?/1000 ft Outer shield at 20°C: 15 ?/1000 ft |
| Attenuation | At 1 MHz: 0.6 dB/100 ft |
| Current | 2.1 A mps per conductor at 25°C |
| General | |
|---|---|
| Length | 100' (30.5 m) |
| Weight | Bulk wire: 5.0 lb (2.3 kg) |
| Packaging Info | |
|---|---|
| Package Weight | 4.4 lb |
| Box Dimensions (LxWxH) | 12.0 x 10.0 x 3.0" |
In the Box
American DJ Accu-cable 5-pin DMX Cable (100')
- Limited 1-Year Warranty
