Tripp Lite 5PX G2 Overview
Ensure the operation of your electronically powered systems remains uninterrupted with this Eaton 5PX G2 2U Rack UPS from Tripp Lite. Tripp Lite has designed this UPS to feature pure sinewave AC output in the single NEMA L5-30R output and the six NEMA 5-20R outputs. This line-interactive 2U rackmount tower unit protects your connected equipment with automatic voltage regulation and surge/noise protection.

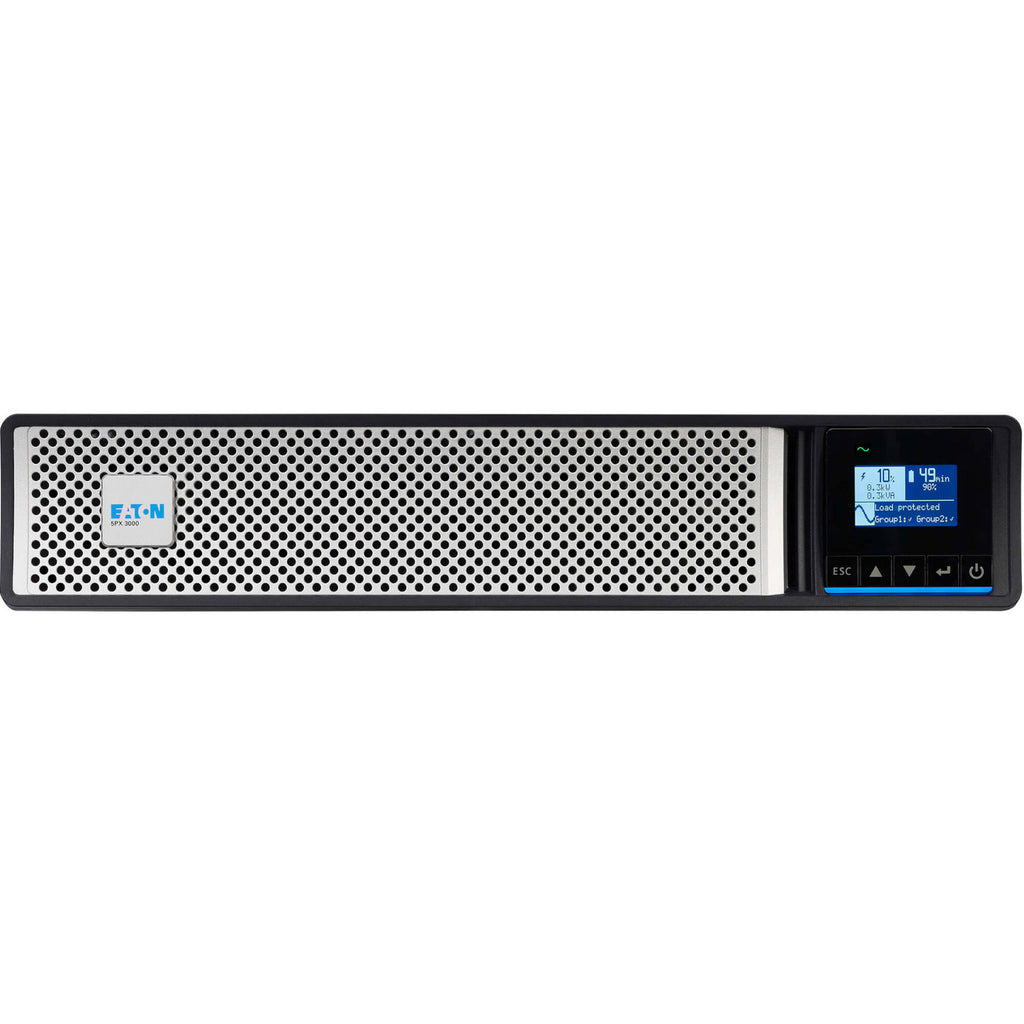

The rotatable front panel LCD display and the LED lights inform you of the status of your connections and their electrical readings, so you can remain confident in the security of your connections. At full load the runtime of this UPS is three minutes, while at half-load the runtime is nine minutes. The batteries are both hot-swappable and user-replaceable so you can supply this UPS with new batteries to keep your devices running when one battery is out of power. Additionally, four outlets are grouped into two load banks that let you shed non-critical loads to extend runtime for critical loads. The RS-232 and USB ports connect to a serial-enabled device for a variety of communication options. Moreover, the RPO/ROO port permits emergency shutdown or remote start of all connected equipment. All of these features position this UPS as a reliable workhorse for your small businesses, classrooms, server rooms, and more.
Items Included
- Tripp Lite Eaton 5PX G2 2U Rack UPS (3000VA / 3000W)
- Rack-Mounting Hardware
- USB Cable
- Tower Support Stands
- RS-232 Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
Tripp Lite 5PX G2 Specs
| Total Outlets |
1x NEMA L5-30R
6x NEMA 5-20R |
| Plug Type |
NEMA L5-30P
|
| Surge Protection |
Yes
|
| Maximum Wattage |
3000 W
|
| Full-Load Runtime |
3 Minutes
|
| Total Outlets |
1x NEMA L5-30R
6x NEMA 5-20R |
| Plug Type |
NEMA L5-30P
|
| SmartSlot Interface |
No
|
| Coax Protection |
No
|
| Data Line Protection |
No
|
| Communications I/O |
USB, Serial via DE-9/DB-9
|
| Topology |
Line Interactive
|
| Surge Protection |
Yes
|
| Maximum Wattage |
3000 W
|
| Nominal Input Voltage |
3000 VAC
|
| Nominal Output Voltage |
3000 VAC
|
| Output Voltage Range |
110 to 125 VAC
|
| Output Frequency |
50/60 Hz
|
| Load Capacity |
3000 VA
|
| Chemistry |
Lead-Acid
|
| Full-Load Runtime |
3 Minutes
|
| Half-Load Runtime |
9 Minutes
|
| Number of Batteries |
1
|
| User Replaceable |
Yes
|
| Replacement Battery |
744-A3122
|
| Hot-Swap Support |
Yes
|
| Certifications |
CE, ENERGY STAR, NOM, REACH, RoHS, cUL
|
| Cable Length |
10' / 3 m
|
| Rackmount Size |
2 U
|
| Dimensions (W x H x D) |
23.7 x 17.2 x 3.4" / 602 x 436.9 x 86.4 mm
|
| Weight |
74.5 lb / 33.8 kg
|
| Package Weight |
86 lb
|
| Box Dimensions (LxWxH) |
31 x 23 x 9"
|
