Description
Tripp Lite 9PX2000RTN Overview

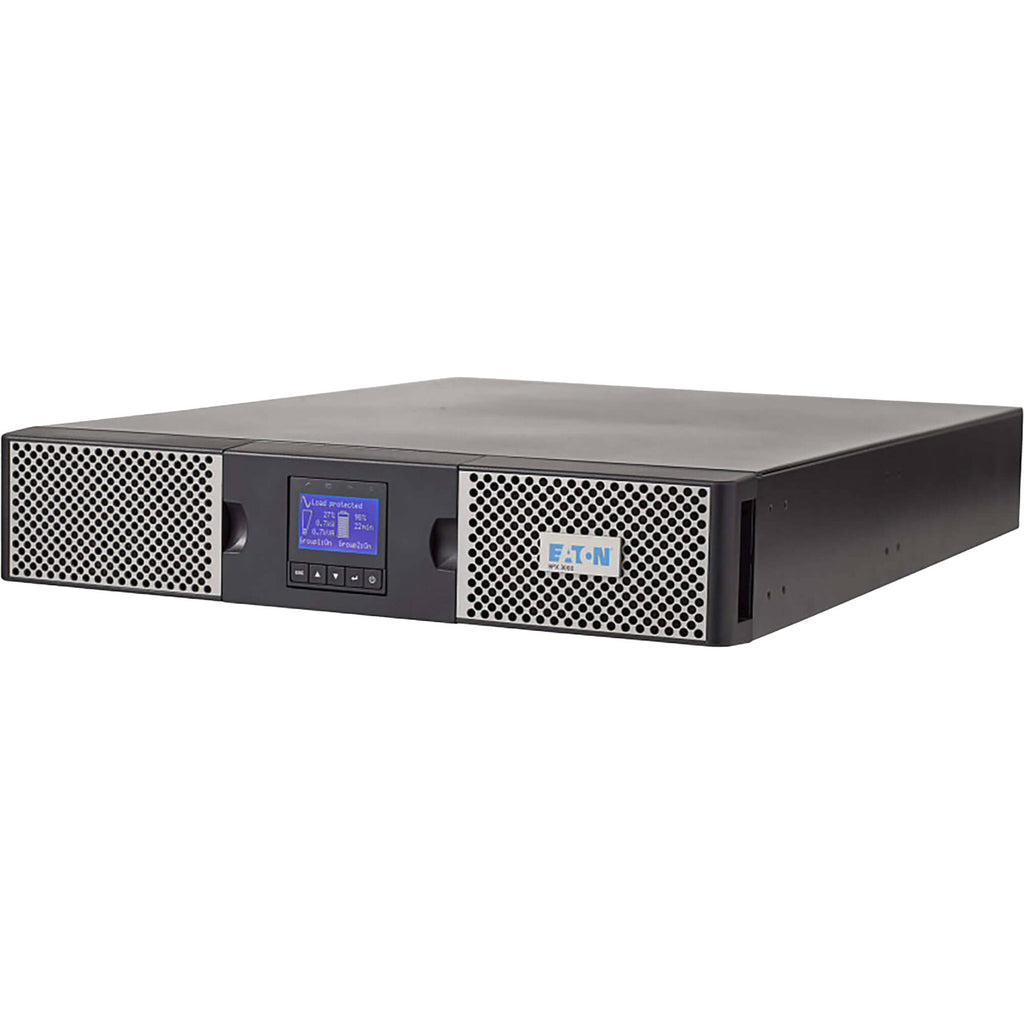

Keep your network running smoothly through emergencies with the 9PX2000RTN Eaton 9PX 2 RU Online Double-Conversion UPS from Tripp Lite. The onboard 2kVA/1.8kW/120V battery backup keeps your system on during a power outage so you can make necessary saves to prevent file damage. Get more runtime with up to four separately available battery modules, which are field-replaceable and hot-swappable, to ensure all preparations are complete for a full shutdown.
The 9PX2000RTN also comes with the NETWORK-M3 Gigabit network card, which enables full remote configuration and management as well as remote UPS firmware flashing without needing to bring the system down to update.

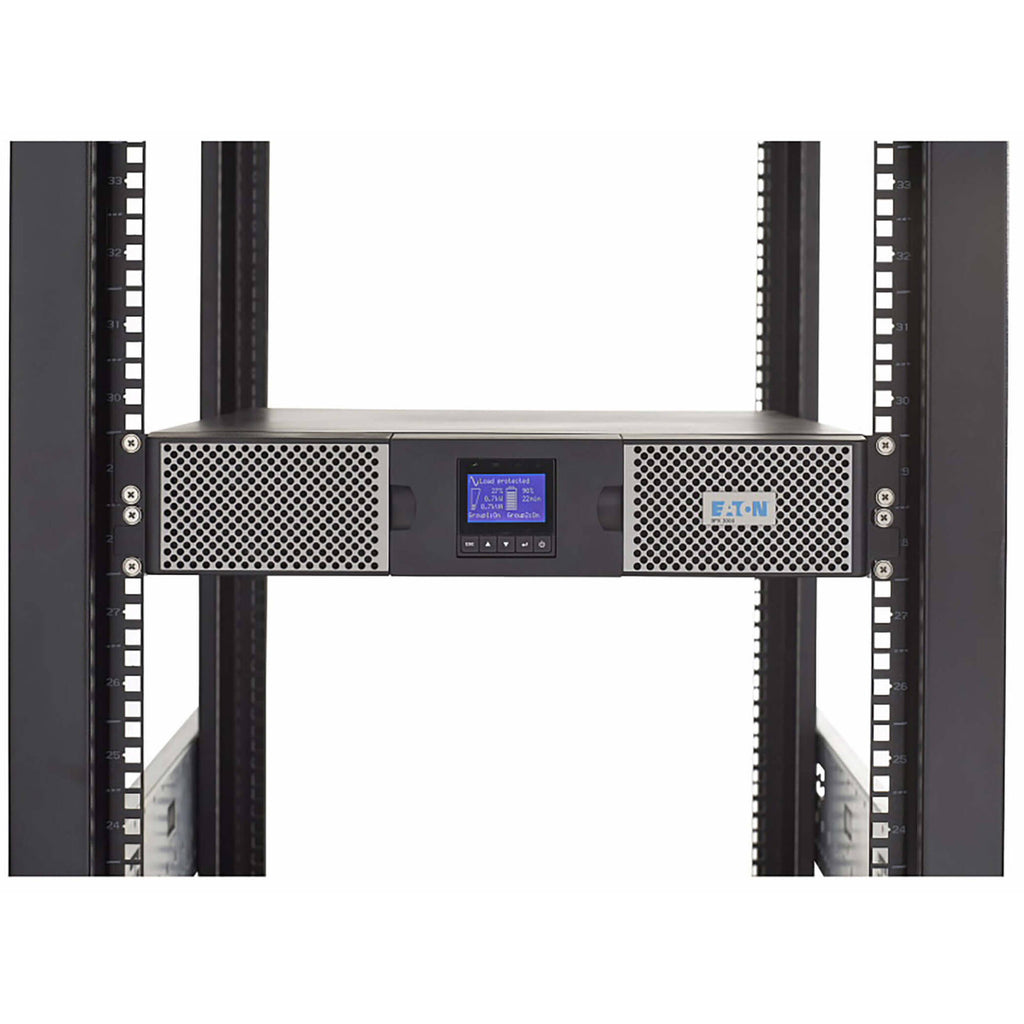

Segmented, managed power outlets allow you to monitor power consumption at a group level. Two of the groups can be de-powered separately from the others in order to preserve battery power during emergencies and extend runtime for critical systems. Serial ports allow for advanced communication options including remote power on and off and remote on/off functions. All of this is built into a 2 RU standard 19-inch rackmount profile, but tower support stands are included if you want to place it vertically.

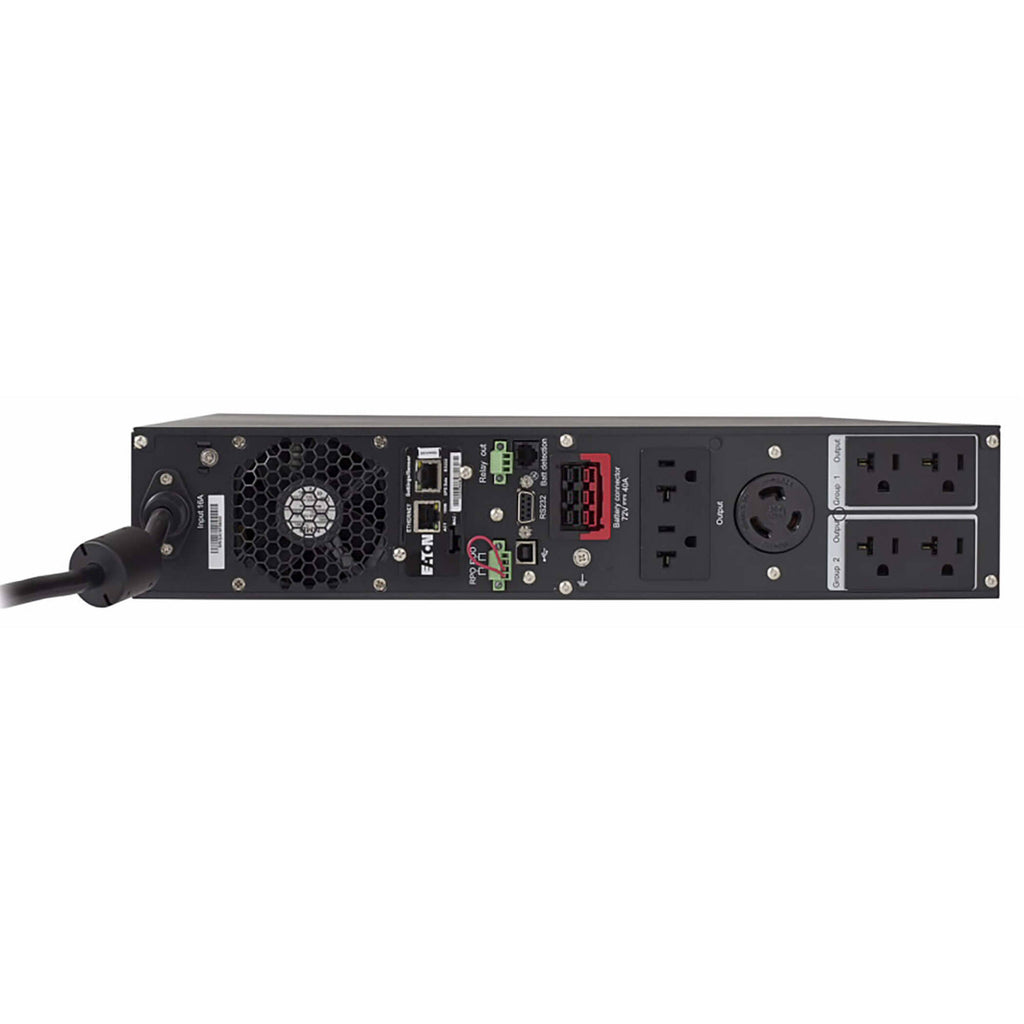

The 9PX2000RTN has seven total outlets?one L5-20R to make sure there are no accidental physical disconnects and six 5-20R outlets for general use. Four of the 5-20Rs are grouped into sets of two that can be separately de-powered in an emergency situation to lighten the power load being sustained by the battery.
- NETWORK-M3 card meets both UL 2900-1 and IEC 62443-4-2 standards
- Network connection allows for remote management including safe powerdown in case of emergency
- Designed for education, commercial, financial, or healthcare networking components
Items Included
- Tripp Lite 9PX2000RTN Eaton 9PX 2 RU Online Double-Conversion UPS (2000VA / 1800W)
- NETWORK-M3 Gigabit Network Card
- USB Cable
- RS-232 Cable
- Rack-Mounting Hardware
- 2 x Tower Support Stand
- Limited 3-Year Manufacturer Warranty
Additional Resources
Tripp Lite 9PX2000RTN Specs
| Total Outlets |
6x NEMA 5-20R
|
| Plug Type |
NEMA 5-20P
|
| Surge Protection |
Yes: 190 Joules
|
| Maximum Wattage |
1800 W
|
| Full-Load Runtime |
8 Minutes
|
| Total Outlets |
6x NEMA 5-20R
|
| Plug Type |
NEMA 5-20P
|
| SmartSlot Interface |
No
|
| Coax Protection |
No
|
| Data Line Protection |
No
|
| Communications I/O |
USB, Serial via DE-9/DB-9
|
| Emergency Power Off (EPO) Support |
Yes
|
| Surge Protection |
Yes: 190 Joules
|
| Maximum Current |
16 A
|
| Maximum Wattage |
1800 W
|
| Nominal Output Voltage |
120 VAC
|
| Output Frequency |
50/60 Hz
|
| Load Capacity |
2000 VA
|
| Circuit Breaker Rating |
16 A
|
| Crest Factor |
3:1
|
| Waveform |
Sine Wave
|
| Chemistry |
Lead-Acid
|
| Full-Load Runtime |
8 Minutes
|
| Half-Load Runtime |
20 Minutes
|
| Number of Batteries |
1
|
| User Replaceable |
Yes
|
| Replacement Battery |
744-A3121
|
| Hot-Swap Support |
Yes
|
| External Battery Connection |
No
|
| Operating Conditions |
32 to 104?F / 0 to 40?C at 0 to 96% Humidity
|
| Certifications |
CE, EN, ENERGY STAR, FCC, NOM, RoHS, VCCI, cUL
|
| Rackmount Size |
2 U
|
| Dimensions (W x H x D) |
23.8 x 17.3 x 3.4" / 604.5 x 439.4 x 86.4 mm
|
| Weight |
75 lb / 34 kg
|
