Description

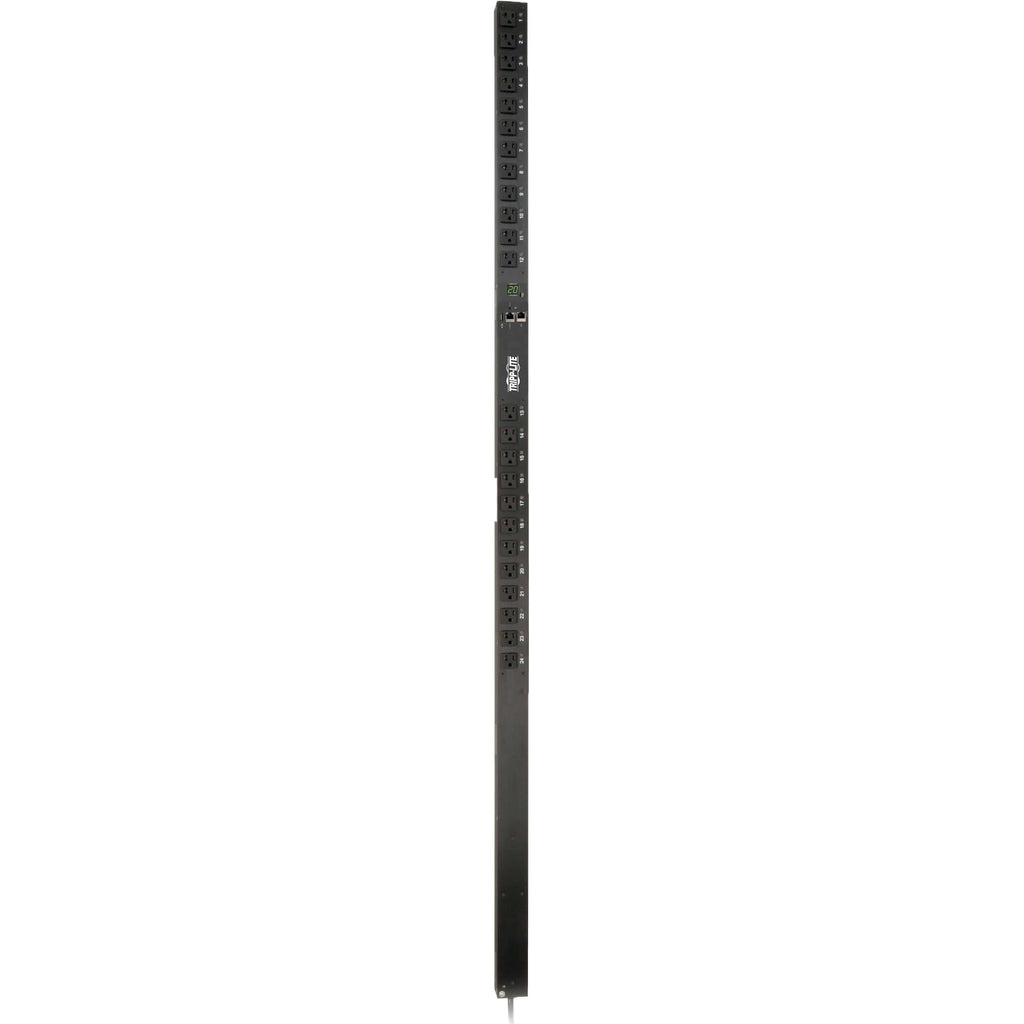

Tripp Lite PDUMV20NETLX Overview
- 1Description
- 2Network-Grade AC Power Distribution
- 324 Outlets
- 4Digital Ammeter
- 5Built-In LX Platform Interface
- 6Easy 0 RU Installation in EIA-Standard 19" Racks
- 7TAA-Compliant

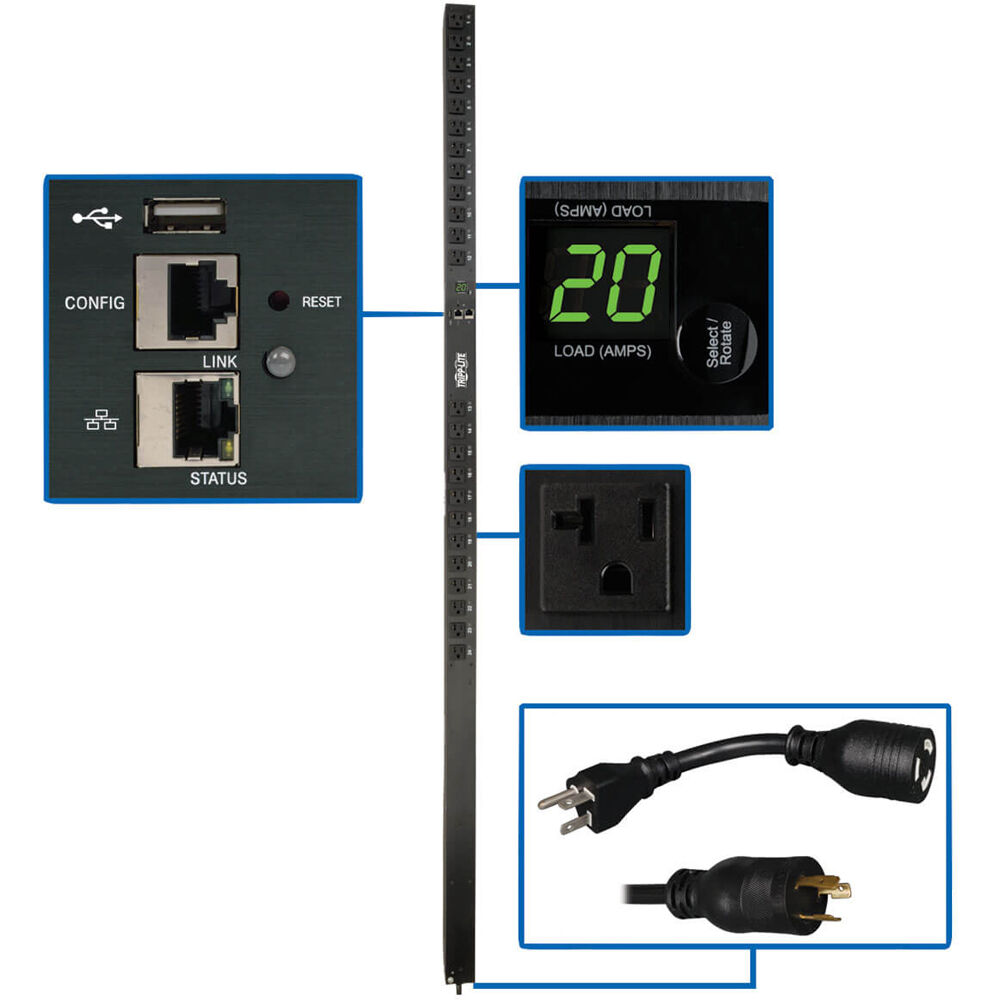

Meter and control power to a host of equipment with the 1920W Single-Phase Switched Power Distributer from Tripp Lite. Featuring a 1920W capacity, this power distributer is compatible with 120V at 20A inputs, and provides an output of 120V at 16A. Connect devices to 24 NEMA 5-15/20R outlets. Outlets support individual remote control, allowing you to power up, power down, reboot, or lock out devices by outlet.

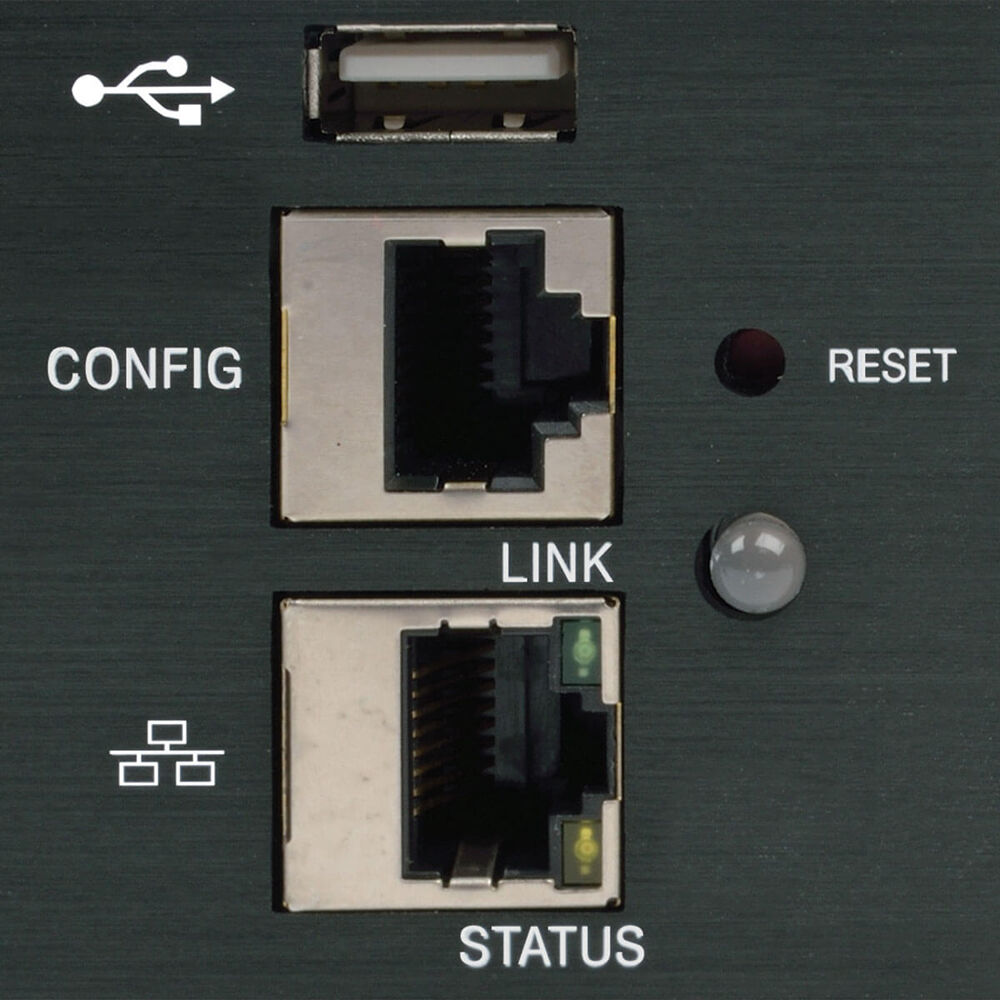

Connect to a network via two RJ45 ports; interface with environmental or control modules via the USB Type-A port. An LCD screen shows output current in amps and can be swiveled 180° for easier viewing. Utilizing a 0 RU form factor, this PDU mounts vertically inside standard 19" server racks using the included mounting hardware. An integrated 10' input cable terminates in a NEMA L5-20P plug, and a NEMA L5-20R to 5-15/20P plug adapter is included.
Network-Grade AC Power Distribution
Recommended for network applications requiring individual outlet control, load shedding, and remote monitoring of critical network components, this single-phase switched power distribution unit delivers up to 1920W of power at 120V via 24 NEMA 5-15/20R outlets. Connecting to a compatible AC power source via an integrated 10' cable with a NEMA L5-20P plug, this PDU supports firmware upgrades for an extended life cycle.

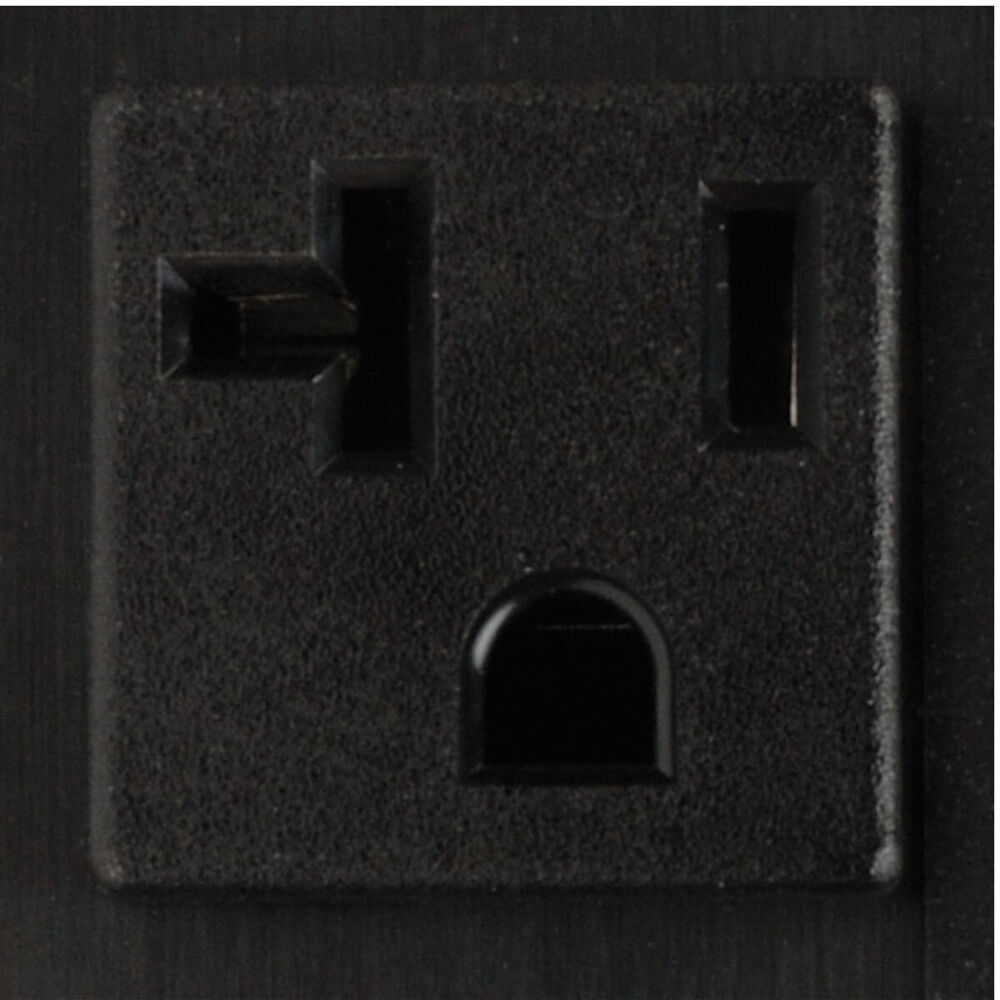

24 Outlets
Individual outlets can be remotely controlled to power up, power down, reboot, or lock out devices. Cable retention brackets prevent cables from becoming accidentally disconnected.

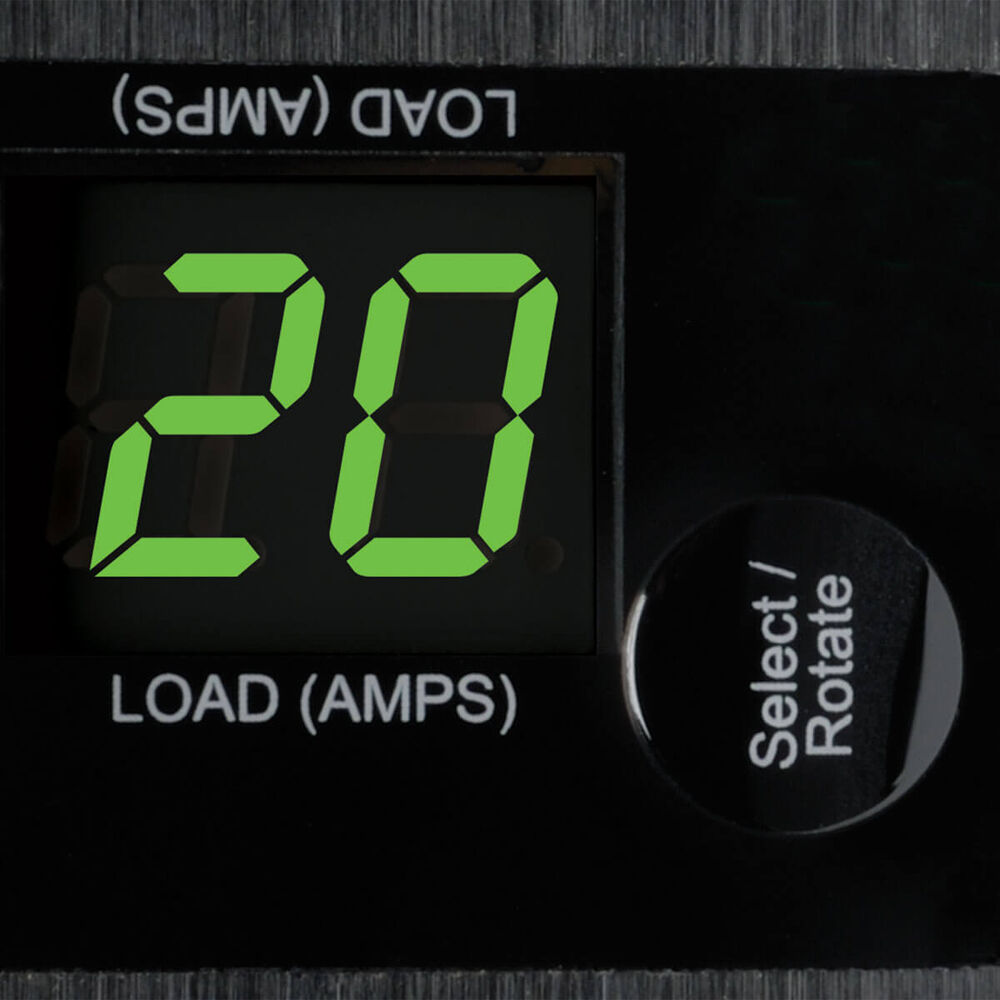

Digital Ammeter
Built-in metering reports total PDU load in real time. Furthermore, this PDU Supports IP-address self-identification and the integrated LCD rotates 180° for easy reading.
Built-In LX Platform Interface
The preinstalled WEBCARDLX with the latest version of PowerAlert Device Manager firmware (PADM20) provides enhanced remote management capabilities. PADM20 and PowerAlert Element Manager (PAEM) form a powerful tool for expanding maintenance functions in large installations, including firmware update checks, as well as backups and restorations of device configurations. IPbased Auto Probe detects lost connectivity and restores service autonomously.

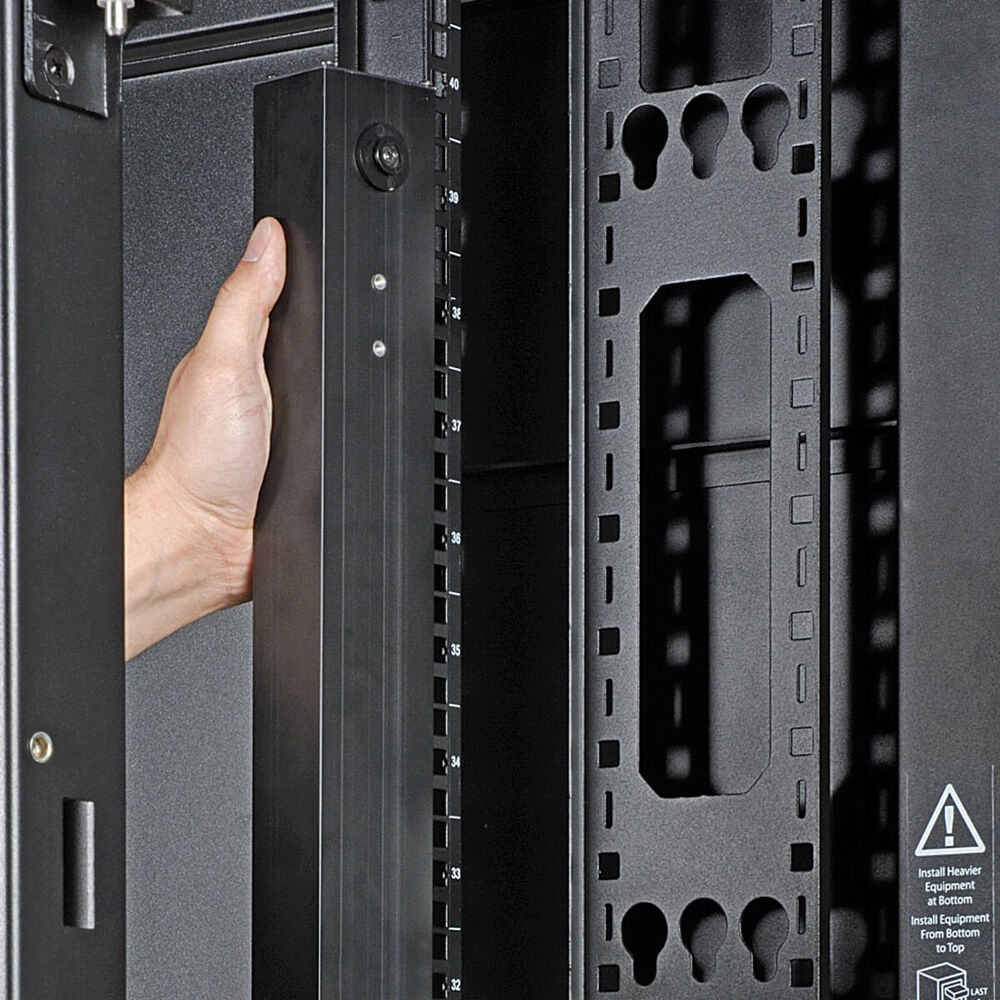

Easy 0 RU Installation in EIA-Standard 19" Racks
This vertical PDU easily mounts to standard 19" server racks using the included toolless buttons or rack-mounting brackets. Plus, the included PDUMVROTATEBRKT mounting accessory allows mounting with rear-facing outlets.
TAA-Compliant
This Tripp Lite PDU is compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
UPC: 037332205315
In the Box
- Tripp Lite 1920W Single-Phase Switched Power Distributer
- NEMA L5-20R to 5-15/20P Plug Adapter
- Configuration Cable
- Set of 24 Cable Ties
- 2 x Cable Retention Brackets
- Rack-Mounting Hardware
- PDUMVROTATEBRKT Mounting Bracket Accessory
Table of Contents
- Description
- Network-Grade AC Power Distribution
- 24 Outlets
- Digital Ammeter
- Built-In LX Platform Interface
- Easy 0 RU Installation in EIA-Standard 19" Racks
- TAA-Compliant
Tripp Lite PDUMV20NETLX Specs
| Form Factor | Strip |
| Type | Distributor |
| Rated Current | 16 A |
| Number of Circuits | Not Specified by Manufacturer |
| Metering | Yes |
| Battery Backup | No |
| Integrated Lamps | None |
Connections
| Outlets | 24 x NEMA 5-15R (Switched) |
| Wall Plug Type | NEMA L5-20P (Straight) |
| AC Power I/O | Hardwired Input |
| USB Ports | 1 x USB Type-A |
| Ethernet | 2 |
| Coaxial | None |
| RJ11 | None |
| Remote | None |
| Lamp Connectors | None |
Electrical
| AC Input Power | 120 VAC, 50 Hz (20 A) |
| Output Voltage | 120 VAC |
| DC Output Power | Not Specified by Manufacturer |
| Output Current | 16 A (Maximum) |
| Load Capacity | 1920 W |
| Sequencing Delay | None |
Protection & Conditioning
| Circuit Breaker | No |
Environmental
| Certifications | NOM, RoHS, TAA, UL *as per Manufacturer |
| Operating Temperature | 32 to 104°F / 0 to 40°C |
| Operating Humidity | 5 to 95% (Non-Condensing) |
| Storage Temperature | -22 to 140°F / -30 to 60°C |
Physical
| Cable Length | 10' / 3 m |
| Dimensions | 70.1 x 2.6 x 2.2" / 178 x 6.7 x 5.6 cm |
| Weight | 8.51 lb / 3.86 kg |
Packaging Info
| Package Weight | 14 lb |
| Box Dimensions (LxWxH) | 73.25 x 6.38 x 5.13" |
