Description
Middle Atlantic UPX-RLNK-2000R-2 Overview
- 1Description
- 2Out-of-Box Experience
- 3User-Friendly Customization
- 4Information At-a-Glance
- 5Pure Sine Wave
- 6RackLink Remote Management

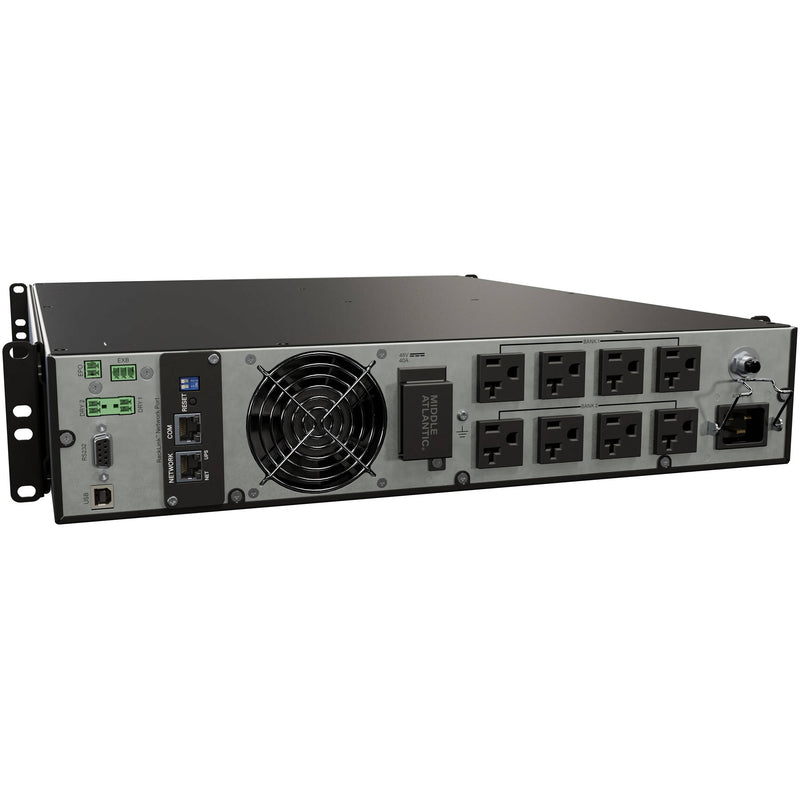

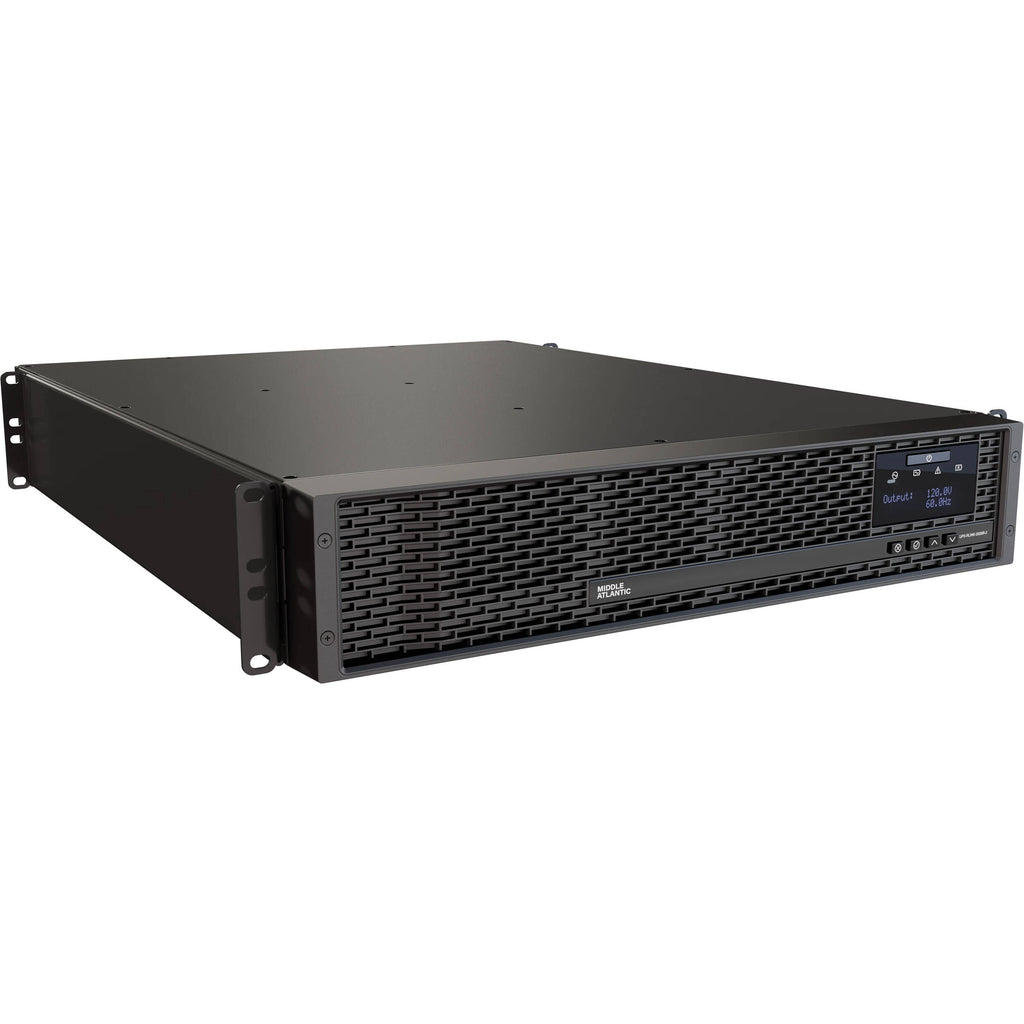

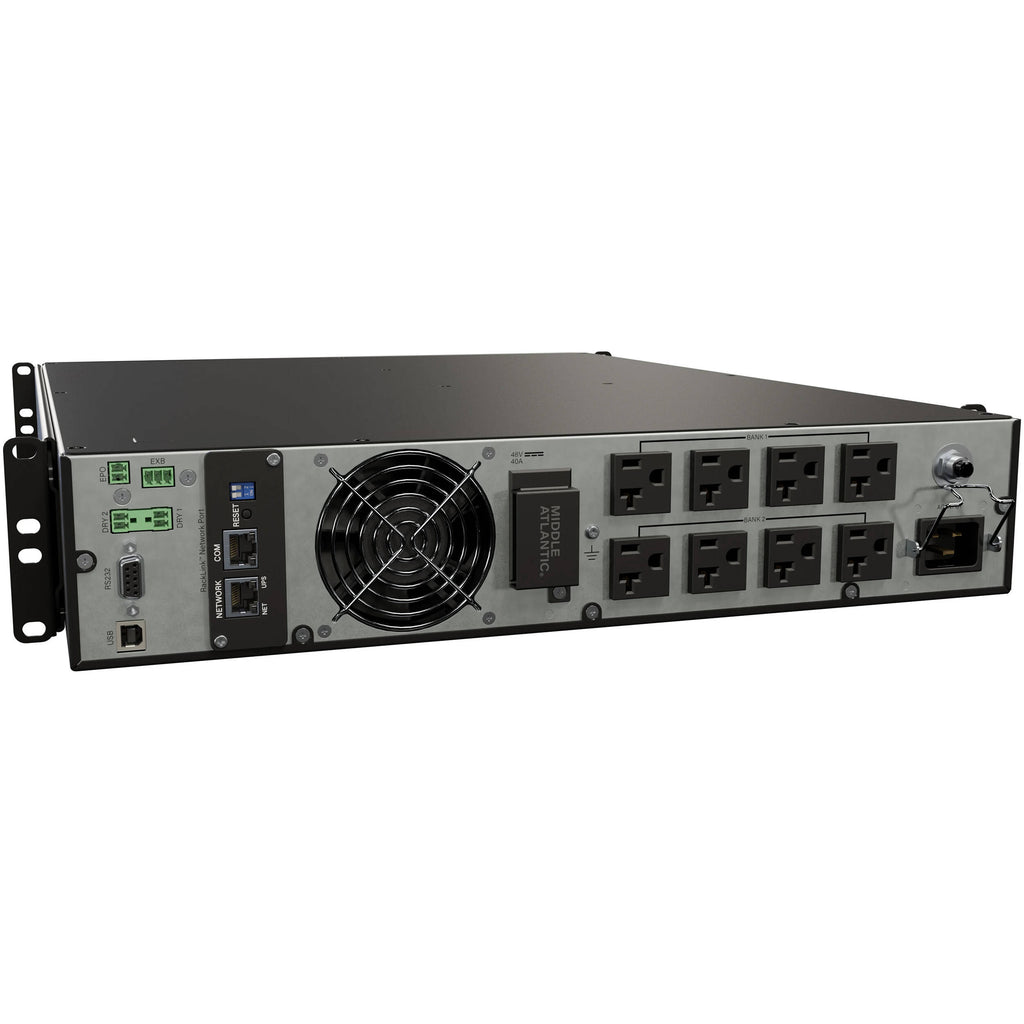

Protect your professional AV equipment with the Middle Atlantic NEXSYS UPX-RLNK-2000R-8 UPS Backup Power System. This rack-mountable uninterrupted power supply is ready to install out of the box and features eight surge and battery-protected outlets with 1800W watts of power.
The NEXSYS UPX-RLNK-2000R-8 supports line-interactive technology, a surge rating of 1000 joules, Pure Sine Waveform, and AVR. When power is lost, the hot-swappable lead-acid battery provides up to ten minutes of run time at half-load, and up to three minutes at full-load, allowing your connected devices time to shut down. The front panel provides access to the hot-swappable lead-acid battery and an LCD screen, allowing quick access to the battery and important system information.
Out-of-Box Experience
The NEXSYS Line Interactive UPS aims to save you time during installation. It's ready to rack mount out of the box, with rack ears and battery pre-assembled and connected. The hot-swappable battery allows uninterrupted operation, with easy front panel access.
User-Friendly Customization
Utilizing the NEXSYS Power Management Software on your PC allows you to customize settings and configurations, set reminders for when the battery needs replacement, as well as set specific thresholds to switch battery power quality.

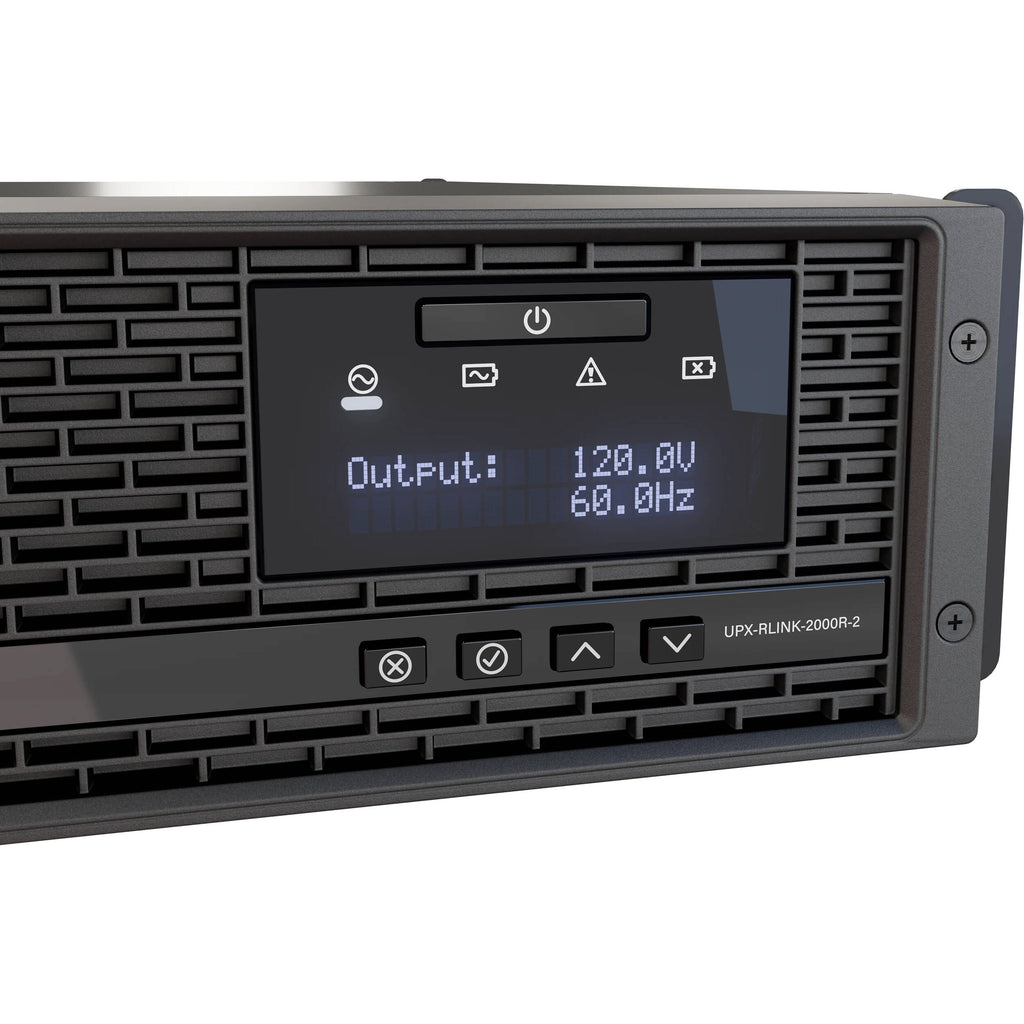

Information At-a-Glance
The front LCD panel provides convenient access to system information, such as IP and MAC address location, and device names.
Pure Sine Wave
All NEXSYS models provide a Pure Sine Wave output and Automatic Voltage Regulation (AVR), enabling clean power to your connected equipment.
RackLink Remote Management

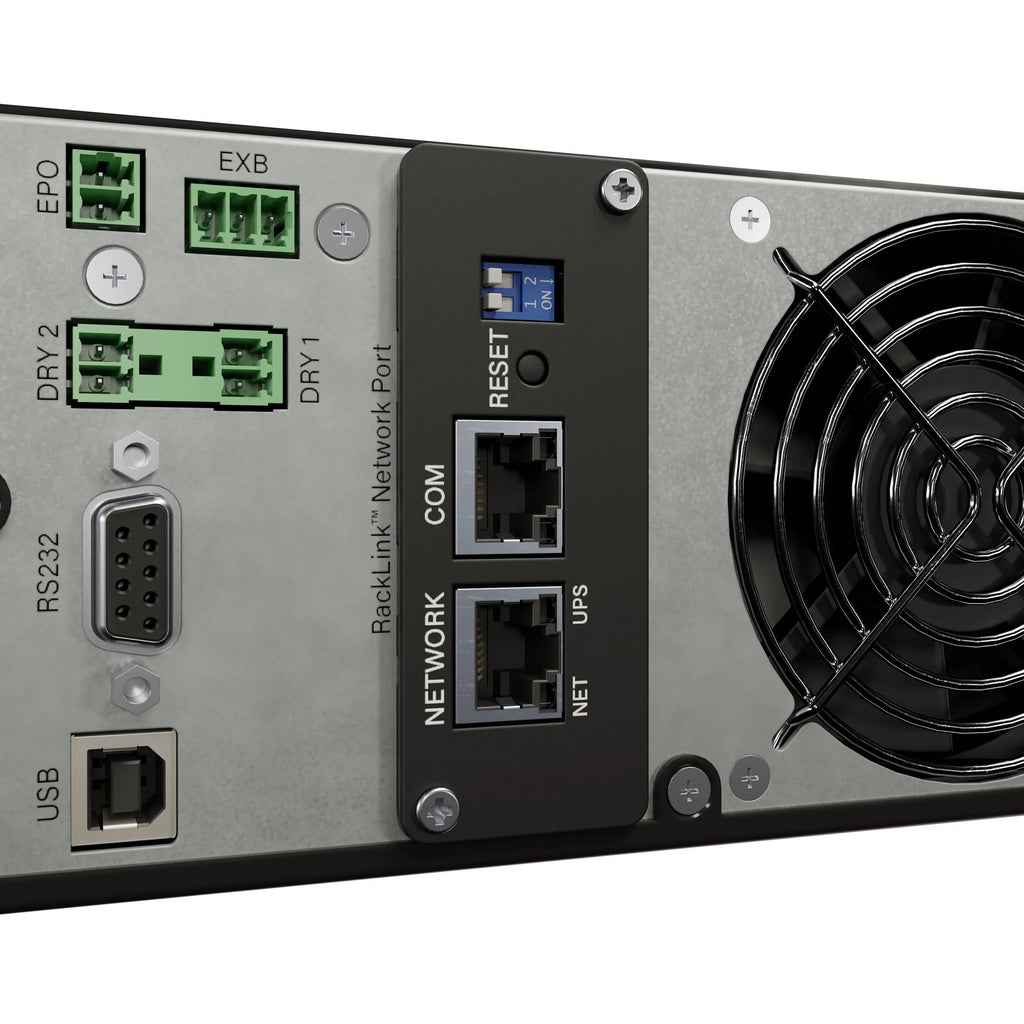

The NEXSYS UPS is RackLink enabled out of the box and works with the RackLink Discovery Tool on Windows, macOS, and Android. Local management is achievable with USB, Ethernet, and RS-232 port communication.
UPC: 656747395598
In the Box
- Middle Atlantic NEXSYS UPX-RLNK-2000R-8 UPS Backup Power System
- Power Cord
- USB-A to USB-B Cable (3')
- RS-232 Cable
- 3 x EPO and Dry Contact Connector
- Limited 3-Year Manufacturer Warranty
- Limited 2-Year Manufacturer Warranty (Battery)
Table of Contents
- Description
- Out-of-Box Experience
- User-Friendly Customization
- Information At-a-Glance
- Pure Sine Wave
- RackLink Remote Management
Middle Atlantic UPX-RLNK-2000R-2 Specs
Key Specs
| Total Outlets |
8 x NEMA 5-20R
|
| Plug Type |
NEMA 5-20P Offset
|
| Surge Energy Rating |
1000 Joules
|
| Maximum Wattage |
1800 W
|
| Full-Load Runtime |
3 Minutes
|
General
| Total Outlets |
8 x NEMA 5-20R
|
| Protected Outlets |
8 x NEMA 5-20R (Battery and Surge)
|
| Plug Type |
NEMA 5-20P Offset
|
| USB Charging Ports |
No
|
| SmartSlot Interface |
1
|
| Coax Protection |
No
|
| Data Line Protection |
RJ45
|
| Communications |
USB via Type-B
Serial via DE-9/DB-9 Ethernet (Unspecified) via RJ45 |
| Emergency Power Off (EPO) Support |
Yes
|
| Topology |
Line Interactive
|
| Transfer Time |
4 to 10 ms
|
Power
| Surge Energy Rating |
1000 Joules
|
| Maximum Wattage |
1800 W
|
| Nominal Input Voltage |
127 VAC
|
| Input Voltage Range |
80 to 158 VAC
|
| Input Frequency |
50/60 Hz (Auto Sensing)
|
| Nominal Output Voltage |
120 VAC
|
| Output Voltage Range |
90 to 146 VAC
|
| Output Frequency |
50/60 Hz ± 0.5 Hz (Auto Sensing)
|
| Load Capacity |
2000 VA
|
| Crest Factor |
3:1
|
| Waveform |
Sine Wave
|
Battery
| Chemistry |
Lead-Acid
|
| Full-Load Runtime |
3 Minutes
|
| Half-Load Runtime |
10 Minutes
|
| Recharge Time |
6 to 8 Hours
|
| User Replaceable |
Yes
|
| Replacement Battery |
UPX-RPLBATT-C
|
| Hot-Swap Support |
Yes
|
| External Battery Connection |
1 x IEC Jumper
|
Environmental
| Operating Temperature |
32 to 104°F / 0 to 40°C
|
| Operating Humidity |
0 to 95% (Non-Condensing)
|
| Storage Temperature |
5 to 113°F / -15 to 45°C
|
| Operating Altitude |
9842' / 3000 m
|
| Noise Level |
50 dBA
|
| Certifications |
CSA, cTUVus, FCC, REACH, RoHS
|
Physical
| Cable Length |
6' / 1.8 m
|
| Rackmount Size |
2 RU (with Included Hardware)
|
| Dimensions (W x H x D) |
19 x 3.5 x 22" / 48.3 x 8.9 x 55.9 cm
|
| Weight |
63 lb / 28.6 kg
|
Packaging Info
| Package Weight |
71 lb
|
| Box Dimensions (LxWxH) |
30 x 23.63 x 7.63"
|
