Description
Middle Atlantic PDX-220C-SP Overview

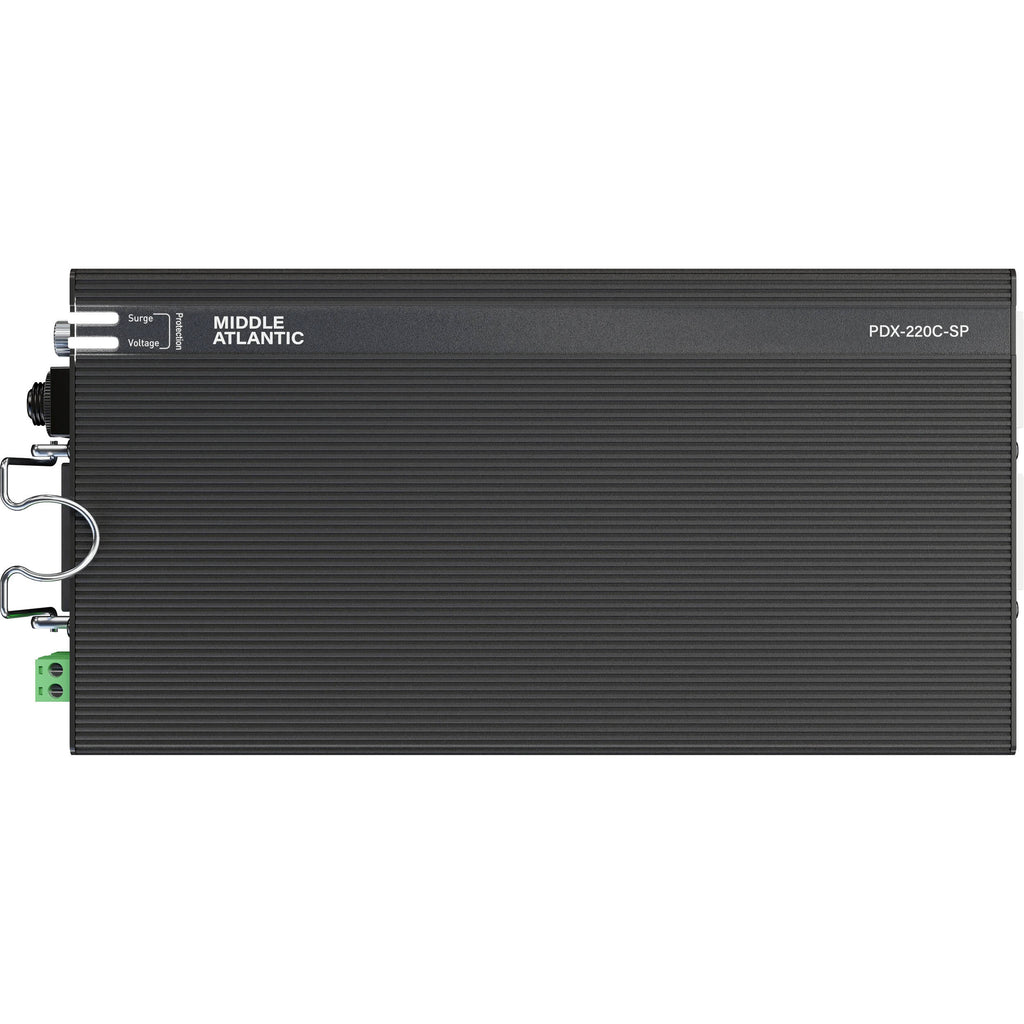

The 0 RU NEXSYS Compact 2-Outlet Power Distribution Unit with Series Surge Protector from Middle Atlantic provides a 120V, 15A output. This PDU distributes power to two NEMA 5-15R receptables from a single NEMA 5-15P input Voltage protection can be toggled on to protect your equipment by automatically turning the outlets off when the voltage is over or under the acceptable range. The two outlets are oriented for easier plugging of DC transformers and the PDU's compact design makes it ideal for fitting it neatly behind other devices. The included L-brackets and clamp offer multiple mounting options.
UPC: 656747396458
Items Included
- Middle Atlantic NEXSYS Compact 2-Outlet Power Distribution Unit with Series Surge Protector (20A)
- Power Cord (2')
- L-Brackets Set
- Clamp
- Limited 12-Year Manufacturer Warranty
Additional Resources
No additional resources available
Middle Atlantic PDX-220C-SP Specs
Key Specs
| Metering |
None
|
| Battery Backup |
No
|
| Outlets |
2x NEMA 5-15R
|
| Additional I/O |
No
|
| Surge Protection |
Yes
|
| Type |
Distributor
|
| Amp Rating |
20 A
|
| Number of Circuits |
Not Specified by Manufacturer
|
| Metering |
None
|
| Battery Backup |
No
|
| Typical Backup Runtime |
Not Specified by Manufacturer
|
| Integrated Lamps |
No
|
Connections
| Outlets |
2x NEMA 5-15R
|
| Wall Plug Type |
NEMA 5-15P
|
| Lamp I/O |
No
|
| Additional I/O |
No
|
| Wireless |
No
|
Electrical
| AC Input Power |
80 to 140 VAC, 60 Hz
|
| Output Voltage |
120 VAC
|
| DC Output Power |
Not Specified by Manufacturer
|
| Load Capacity |
Not Specified by Manufacturer
|
| Sequencing Delay |
Yes
|
Protection & Conditioning
| Protection Types & Modes |
Overvoltage, Undervoltage
|
| Circuit Breaker |
Yes
|
| Undervoltage Protection |
< 100 V
|
| Overvoltage Protection |
> 135 V
|
| Surge Protection |
Yes
|
| EMI/RFI Noise Filtration |
40 dB (400 kHz)
|
Physical
| Rackmount Size |
0 U
|
| Cable Length |
2' / 0.6 m
|
| Certifications |
FCC Class B, ICES 7, UL 62368, UL 1283, UL 1449
|
| Cable Management |
No
|
| Dimensions |
9 x 4.6 x 1.7" / 229 x 118 x 44 mm
|
| Weight |
3.75 lb / 1.7 kg
|
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
