Description
APC AP9614 Overview

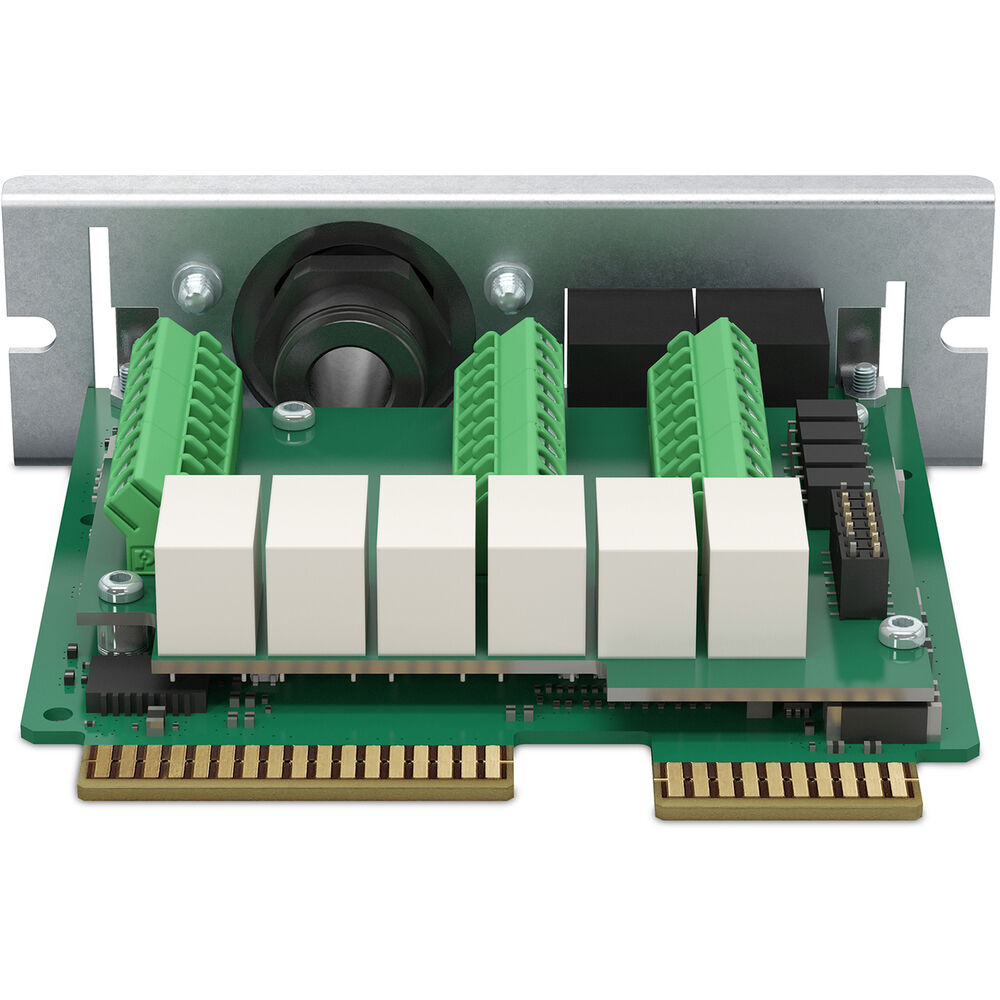

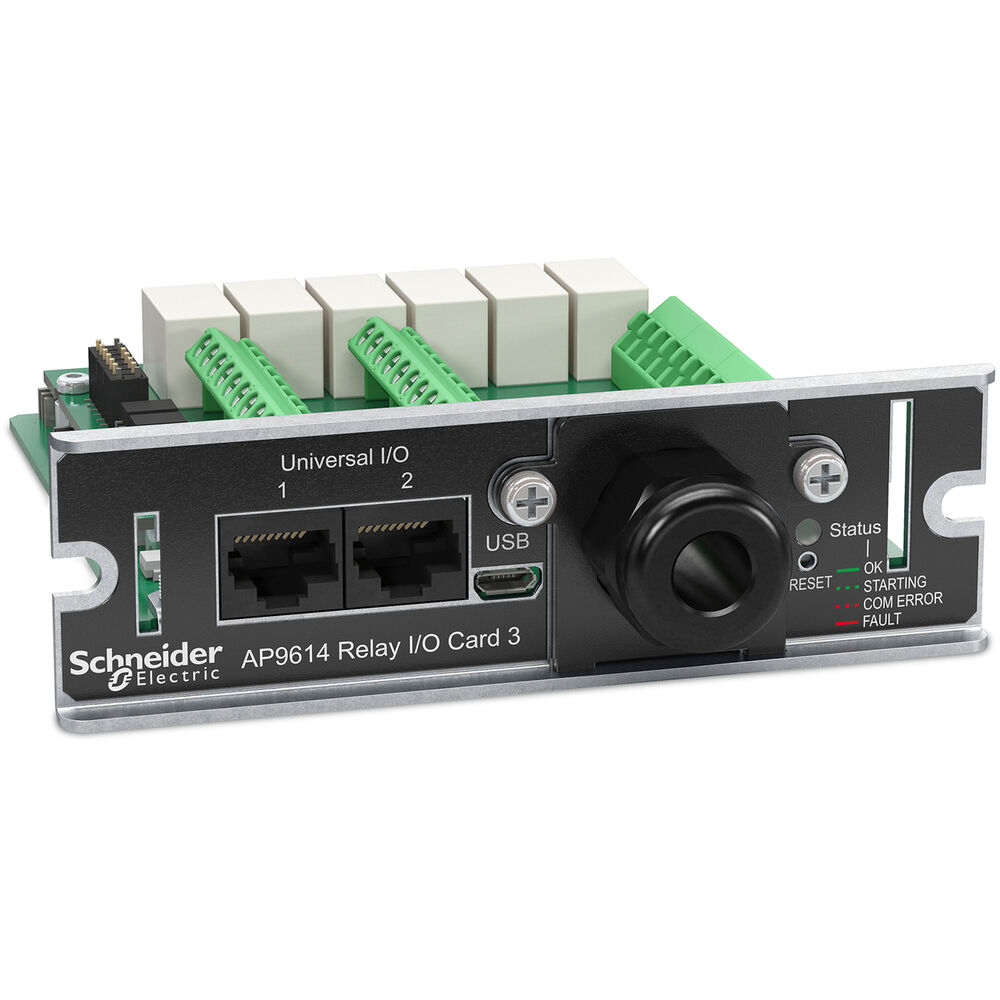

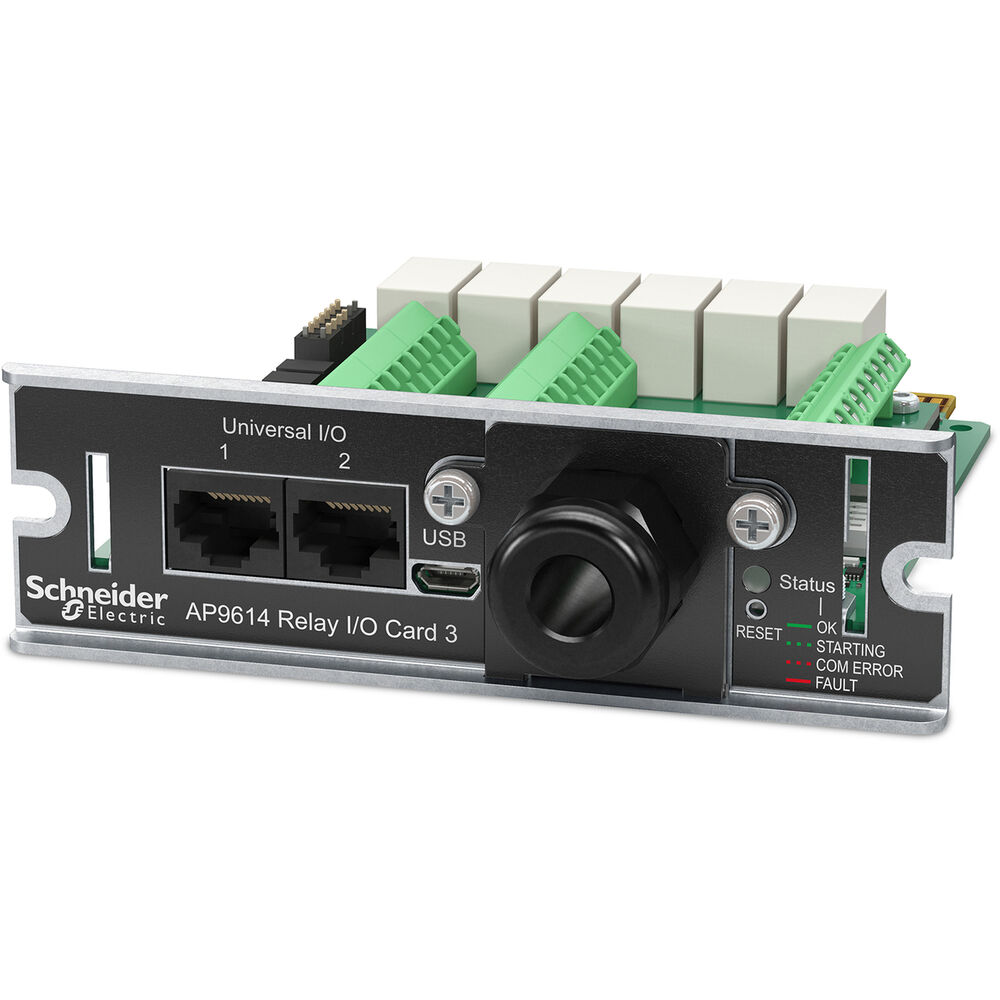

Connect peripheral devices like buttons, door sensors, alarm panels, or float switches to your UPS with the Dry Contact I/O SmartSlot Card from APC Designed for UPS devices with a SmartSlot rated 160 kVA or below, this card provides six configurable output relays, four input contacts, and two universal I/O ports for a temperature or temperature/humidity probe, or a dry contact I/O accessory. Users will also be able to monitor connected devices via a dynamic web UI, configure actions to status changes or UPS events via the web UI, and more. Included is a mini-USB to USB-A cable.
User Friendly Web Interface
Monitor your device from anywhere with the intuitive web user interface.
Security
Advanced technology and features keep sensitive data secure with improved security compliance.
Streamlined Firmware Updates
Easily update your device's firmware through the updated web interface, making maintenance simple.
UPS Support
- Smart-UPS, 1-Ph Symmetra, 3-Ph Symmetra PX
- Smart-UPS Ultra 5-20 kW, Smart-UPS Modular Ultra
- Galaxy VS (coming Q3 2025)
UPC: 731304733065
Items Included
- APC Dry Contact I/O SmartSlot Card
- Mini-USB to USB-A Cable (0.522')
- Limited 2-Year Manufacturer Warranty
Additional Resources
APC AP9614 Specs
General
| Compatibility |
Not Specified by Manufacturer
|
| Ports |

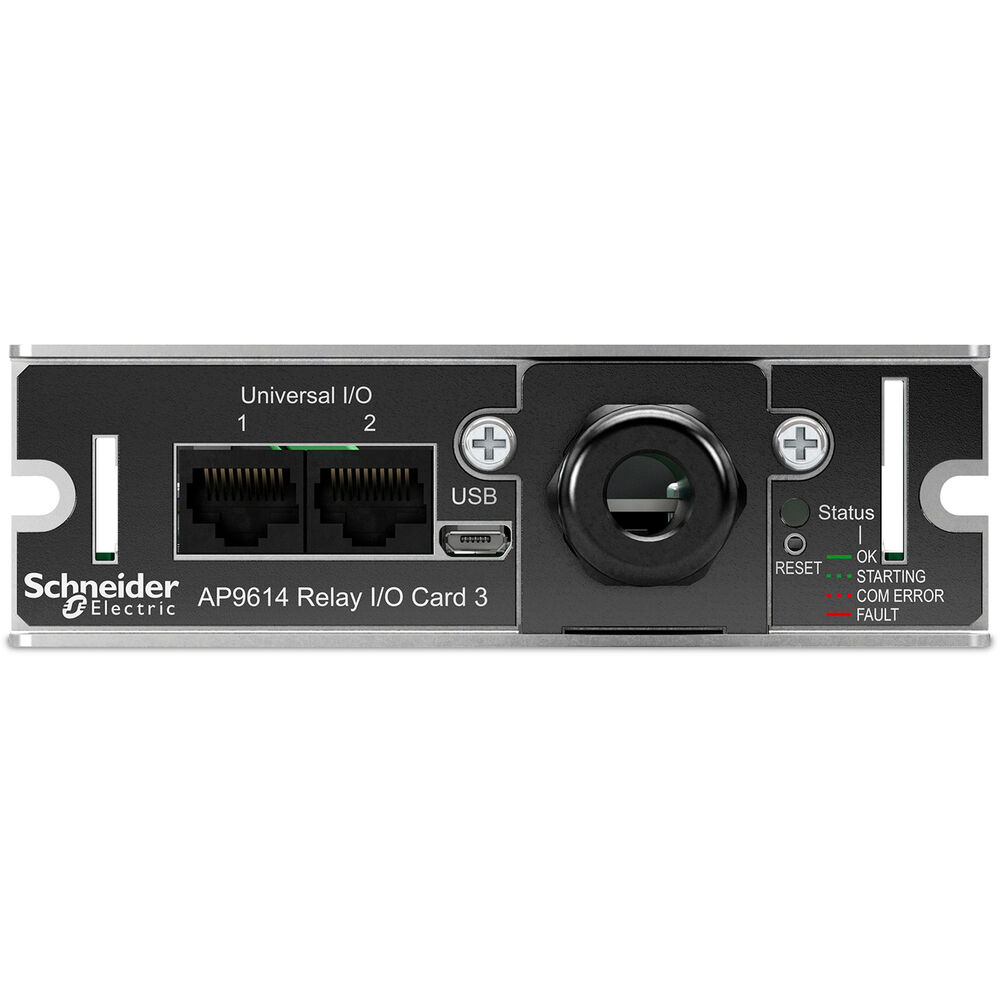

2 x Universal I/O Ports
1 x mini-USB Port 6 x Output Relay Terminals 4 x Input Contact Terminals |
| Power |
Rated Voltage: 24 V
Line Rated Current: 0 to 200 mA |
Physical
| Color |
Black
|
| Certifications |
EN 55032, EN 61000-6-3, EN/IEC 61000-3-2, EN 61000-6-1 (2007), EN 55035, EN 61326-2, EN 61000-4-5, EN 61000-4-8, EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-6, EN 61000-4-11, EN 61000-6-3 (2007), EN 62040-2, FCC Part 15 Class A, FCC CFR 47 Part 15, ICES-003 Class A, IEC 62040-2, VCCI Class A
|
| Operating Conditions |
32 to 104?F / 0 to 40?C
|
| Dimensions |
5.04 x 4.76 x 1.5" / 12.8 x 12.09 x 3.8 cm
|
| Weight |
0.44 lb / 0.2 kg
|
Packaging Info
| Package Weight |
0.95 lb
|
| Box Dimensions (LxWxH) |
9.4 x 6.3 x 2"
|
