Description
Proton PCI-4K Overview

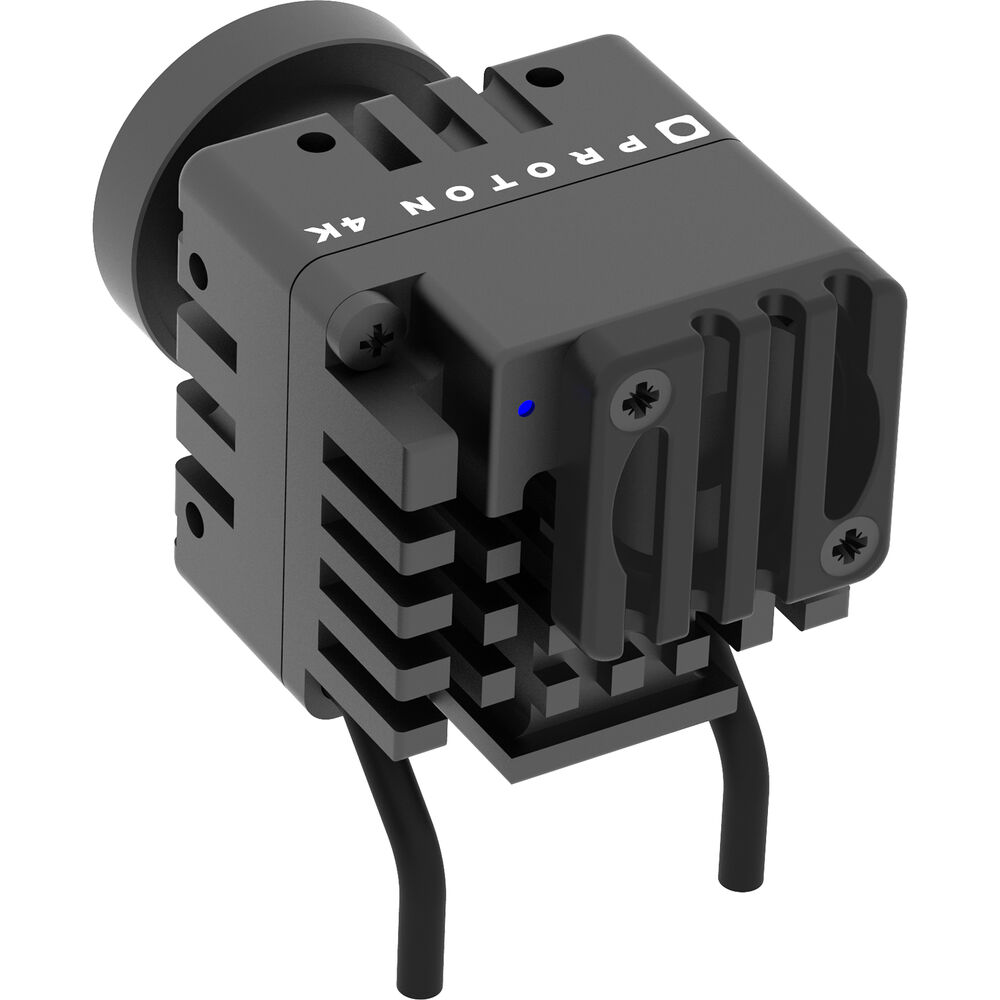

The cube-sized Proton 4K Mini Broadcast Camera supports HDR and is equipped with 12-bit sensor technology and high sensitivity. The versatile camera captures vibrant images even in low light, boasting an ultrawide angle of up to 124? when used with an optional 2.2mm lens. Its compact housing features a total of eight 2.5mm holes for individual mounting options, as well as a bracket that can be attached to the top or bottom of the camera to provide an additional 1/4"-20 thread for tripod mounting or another type of stand or truss.
The distortion-free 3.2mm f/2.3 lens comes already mounted on the camera's M12/S lens mount, but it can be swapped with other optional lenses. The camera supports resolutions up to UHD 4K60 with optional downscaling to 1080p60, RS-485 control, and a rolling shutter. A 6' cable with BNC/SDI connectivity is included with the camera. There are status LEDs on the front and rear of the camera, as well as an integrated tally light.
Items Included
- Proton 4K Mini Broadcast Camera
- 3.2mm f/2.3 Lens (M12/S Mount)
- SDI Cable (6')
- Limited 6-Month Manufacturer Warranty
Additional Resources
Proton PCI-4K Specs
| Video I/O |
1x BNC (12G-SDI) Output
|
| Power Source |
Plug-In Power (Built-In)
|
| DC Input Power |
10.5 to 25 VDC
|
| Power Consumption |
6 W
|
| Lens Mount |
M12/S
|
| Field of View |
Horizontal: 124? with 2.2mm Lens
Vertical: 85? with 2.2mm Lens Horizontal: 97? with 3.2mm Lens Vertical: 64? with 3.2mm Lens |
| ISO Range |
75-2400
200-6400 (Low Light Mode) |
| Shutter |
6 ?s, 1 fps
|
| Resolutions |
UHD 4K at 23:98/24/25/29:97/30/47/48/50/59:94/60 fps
1080p at 23:98/24/25/29:97/30/47/48/50/59:94/60 fps 1080i at 50/59:94/60 fps |
| Microphone Type |
Integrated Stereo Microphone
|
| Mounting |
1x 1/4"-20 Thread
8x M2.5 Thread |
| Color |
Black
|
| Certifications |
EU, FCC, RoHS
|
| Operating Conditions |
-22 to 140?F / -30 to 60?C
|
| Cable Length |
6' / 1.8 m
|
| Dimensions |
1.4 x 1.1 x 1.1" / 34.5 x 28 x 28 mm
|
| Weight |
1.3 oz / 37 g (Body)
0.2 oz / 5.5 g (Lens) 2 oz / 57 g (Cable) |
| Package Weight |
0.3 lb
|
| Box Dimensions (LxWxH) |
7.2 x 5.4 x 1.75"
|
