Description
Amimon Nano Overview

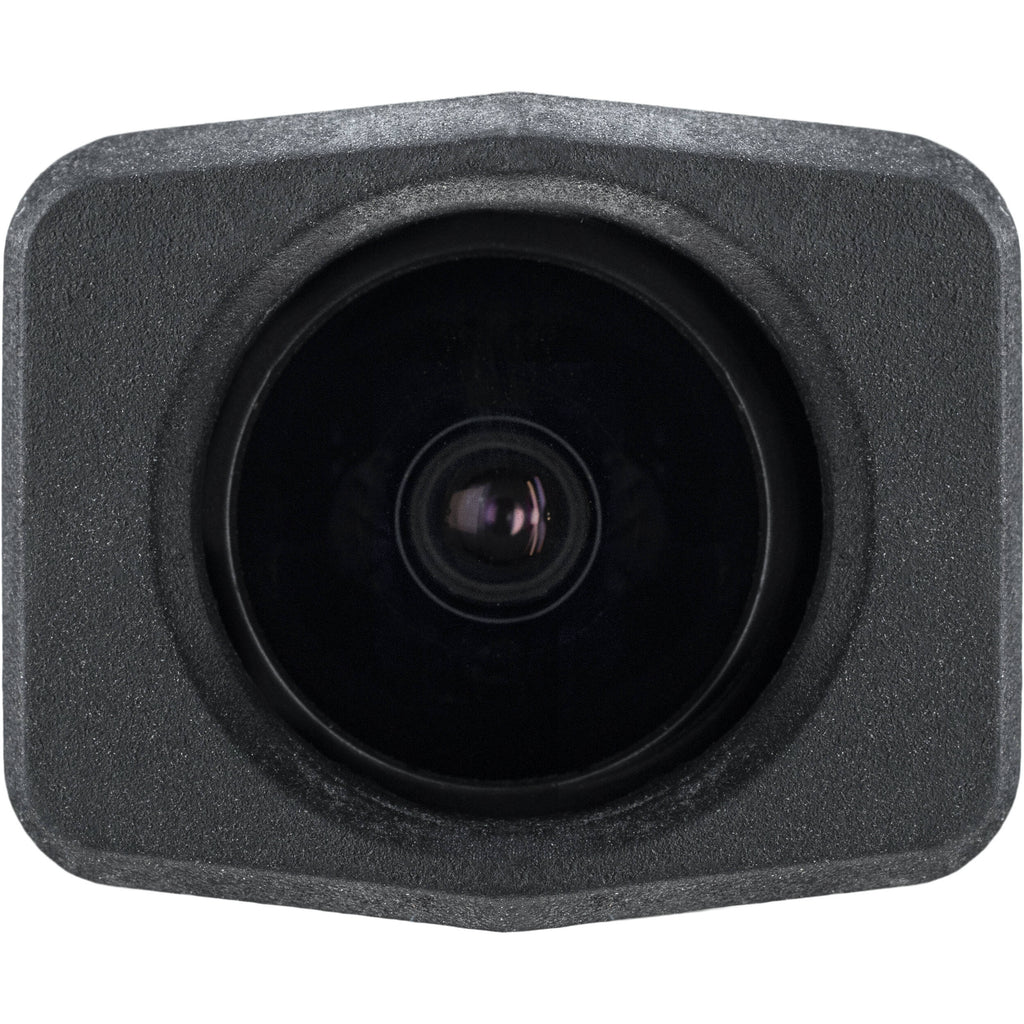

The CONNEX Nano HDR Camera is an HDR camera that is a part of the CONNEX real-time wireless video system, used for industrial applications, cranes, machine vision, and UAV uses. The compact, lightweight camera is designed to send video directly to a separately available CONNEX transmitter, which then sends video to unlimited optional receivers and monitors via HDMI.

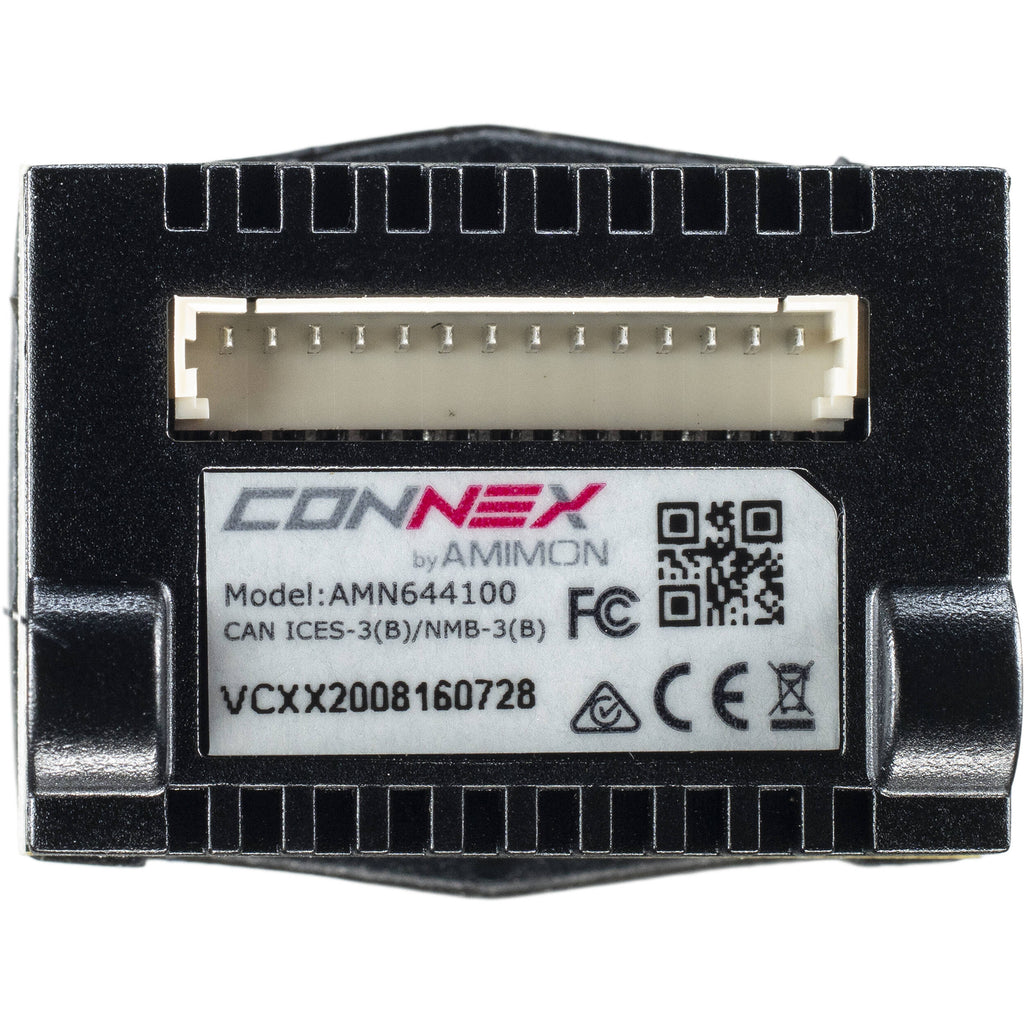

The camera features a fixed lens with a 105° field of view, and it outputs up to 720p30 or 720i60 HDR video via a proprietary 14-pin MIPI connector to a transmitter. The transmitter also provides power to the camera. The camera mounts using two M2 threads.
Key Features
The CONNEX Nano HDR is a compact industrial camera used within an advanced digital, zero-delay, wireless video system.
Used for remote monitoring of industrial applications, including cranes, UGVs, and UAVs.
The Nano system gives you a zero-latency video stream from the Nano camera to a separately available Nano transmitter and receivers with HDMI output.
Supports up to 720p30 and 720i60 video output.
A 105° field of view using its fixed lens.
Powered by a separately available transmitter.
Compact, lightweight plastic housing.
In the Box
- Amimon CONNEX Nano HDR Camera
- MIPI Cable
Amimon Nano Specs
General
| Compatibility | Amimon CONNEX Nano TX Amimon CONNEX Nano RX |
Power
| Power Source | Proprietary Interface |
| DC Input Power | 5 VDC |
| Power Consumption | 100 mW (Typical) |
Environmental
| Operating Temperature | 32 to 72°F / 0 to 40°C |
| Operating Humidity | 10 to 90% |
| Storage Temperature | 14 to 167°F / -10 to 75°C |
Physical
| Mounting | 2 x M2 |
| Material of Construction | ABS Plastic |
| Dimensions | 1.1 x 1.1 x 0.8" / 28 x 27 x 20 mm |
| Weight | 0.5 oz / 13 g |
Amimon Nano Reviews
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 42527.1 |
| 3-5 | ₹ 42093.15 |
| 5-10 | ₹ 41225.25 |
| 10+ | ₹ 40357.35 |
Bulk discount will be automatically applied during checkout based on quantity.
