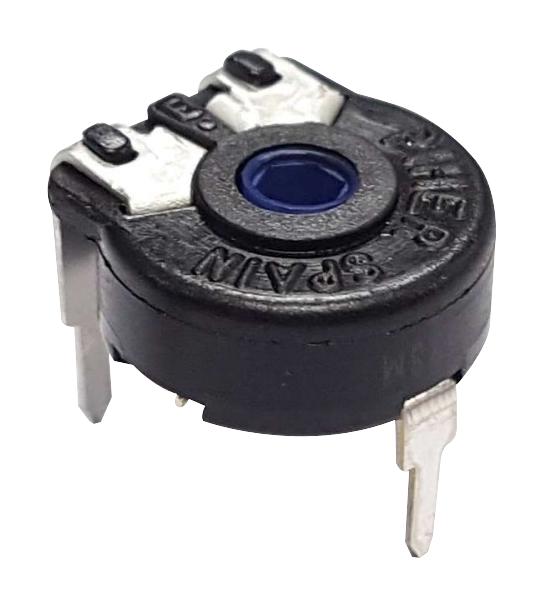

This is a Trimpot, Vertical Adj, Single Turn, Carbon, Top Adjust, 1 kohm, Through Hole, 1 Turns product from AMPHENOL PIHER SENSORS AND CONTROLS with the model number PT10MV10-102A2020-S
Product details
| Trimpot Type |
Single Turn |
| Element Material |
Carbon |
| Adjustment Type |
Top Adjust |
| Track Resistance |
1kohm |
| Potentiometer Mounting |
Through Hole |
| No. of Turns |
1Turns |
| Product Range |
PT10 Series |
| Power Rating |
150mW |
| Resistance Tolerance |
? 20% |
| Temperature Coefficient |
? 300ppm/?C |
| Trimpot Shape / Size |
10 mm Round |
| Automotive Qualification Standard |
- |
Other details
| Brand |
AMPHENOL PIHER SENSORS AND CONTROLS |
| Part Number |
PT10MV10-102A2020-S |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
