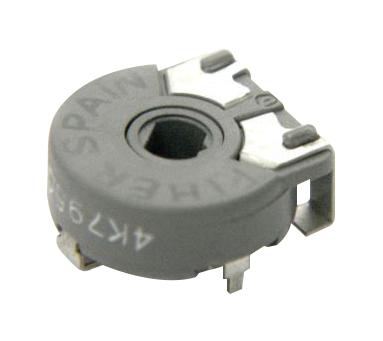

This is a PS15NV60-103A3030-PM Trimpot , Single Turn, Carbon, Top Adjust, 10 kohm, Surface Mount, 1 Turns product from AMPHENOL PIHER SENSORS AND CONTROLS with the model number PS15NV60-103A3030-PM
Product details
| Trimpot Type |
Single Turn |
| Element Material |
Carbon |
| Adjustment Type |
Top Adjust |
| Track Resistance |
10kohm |
| Potentiometer Mounting |
Surface Mount |
| No. of Turns |
1Turns |
| Product Range |
PS-15 Series |
| Power Rating |
250mW |
| Resistance Tolerance |
± 30% |
| Temperature Coefficient |
± 1500ppm/°C |
| Trimpot Shape / Size |
15 mm Round |
| Automotive Qualification Standard |
- |
Other details
| Brand |
AMPHENOL PIHER SENSORS AND CONTROLS |
| Part Number |
PS15NV60-103A3030-PM |
| Quantity |
Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |
 |
