Description
- 4-Ch Video + Unbalanced Stereo Audio
- 4 On-Board Composite BNC Connectors
- 4 Stereo Audio Inputs via 8-RCA Breakout
- Optional Component/S-Video/XLR Supported
- Two or More Deployable in Single Chassis

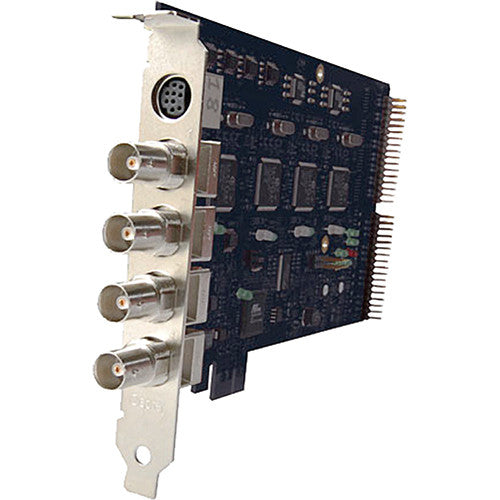

The Osprey 460e is a 4-channel analog Composite BNC capture card ideal for high density capture on modern PC platforms. The 4 inputs are on-board, and four unbalanced stereo audio inputs are also available via an 8-RCA breakout cable. Furthermore, an optional AV expansion add-on can be incorporated to integrate Component, S-Video, and XLR balanced stereo audio via additional breakout cables.
Two or more cards can be deployed in a single PC chassis for maximum versatility.
- Driver Support
-
- Microsoft DirectShow drivers are available for compatibility with most software
- Linux
- Windows SDK lets you create custom applications
- Driver Based Pre-Processing (Windows DirectShow Only)
-
- Closed-caption extraction/rendering
- Logo/bitmap overlay
- Scaling, cropping, de-interlacing and inverse telecine
- Osprey SimulStream Ready
- SimulStream is an optional Osprey feature which allows each input to produce multiple parallel output streams with completely independent settings for color space, cropping, scaling, closed caption, and overlays, facilitating simultaneous delivery to multiple applications.
- AV Expansion Option
- The Osprey 460e AV option provides additional video inputs and 4 stereo balanced audio inputs to the rear panel connectors. The optional video inputs include the selection of component or Y/C (S-Video) for each of the 4 channels or 3 additional composite inputs for a total of 16 switchable composite inputs per card.
UPC: 850189006054
In the Box
Osprey 460e Video Capture Card
Osprey Osprey 460e specs
| Format | 1 x PCIe Slots: x1, x4, x8, or x16 PCIe 2.0 |
| Breakout Cable Connector | 15-pin connector (breakout cable included) |
| Video Input | On-Board: 4 x Composite on BNC (BNC to RCA adapters included) *Component and S-Video inputs supported via optional Osprey AV option board |
| Video Modes | NTSC/PAL 720 x 480 29.97, 30/i (NTSC) 852 x 480, 29.97, 30/i (NTSC Wide Screen) 720 x 576 25/i (PAL) Wide Screen Signaling (WSS) |
| Audio Input | Via Breakout Cable: 4 x Unbalanced stereo via 8 RCA connectors *4 unbalanced stereo inputs via 8 XLR connectors supported via optional Osprey AV option board |
| Power Consumption | 11 W |
| Operating Temperature | 32 to 104°F (0 to 40°C) |
| Storage Temperature | -40 to 167°F (-40 to 75°C) |
| Operating Relative Humidity | 5 to 80% (non-condensing) |
| Storage Relative Humidity | 95% RH (non-condensing); gradient 30% per hour |
| Dimensions | L x H: 6.6 x 4.4" (16.8 x 11.1 cm) Full height/half length |
| Weight | 0.5 lb (227 g) |
| Package Weight | 1.0 lb |
| Box Dimensions (LxWxH) | 9.0 x 5.2 x 2.0" |
