Description

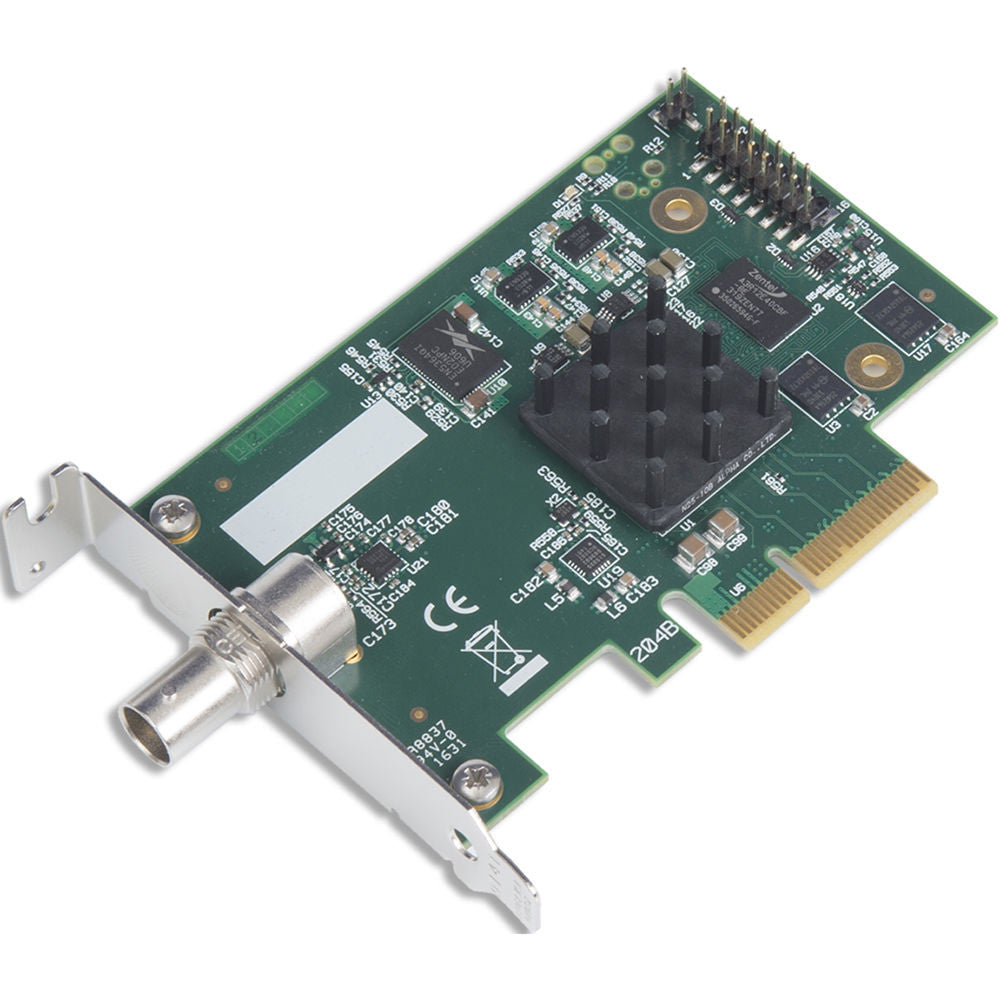

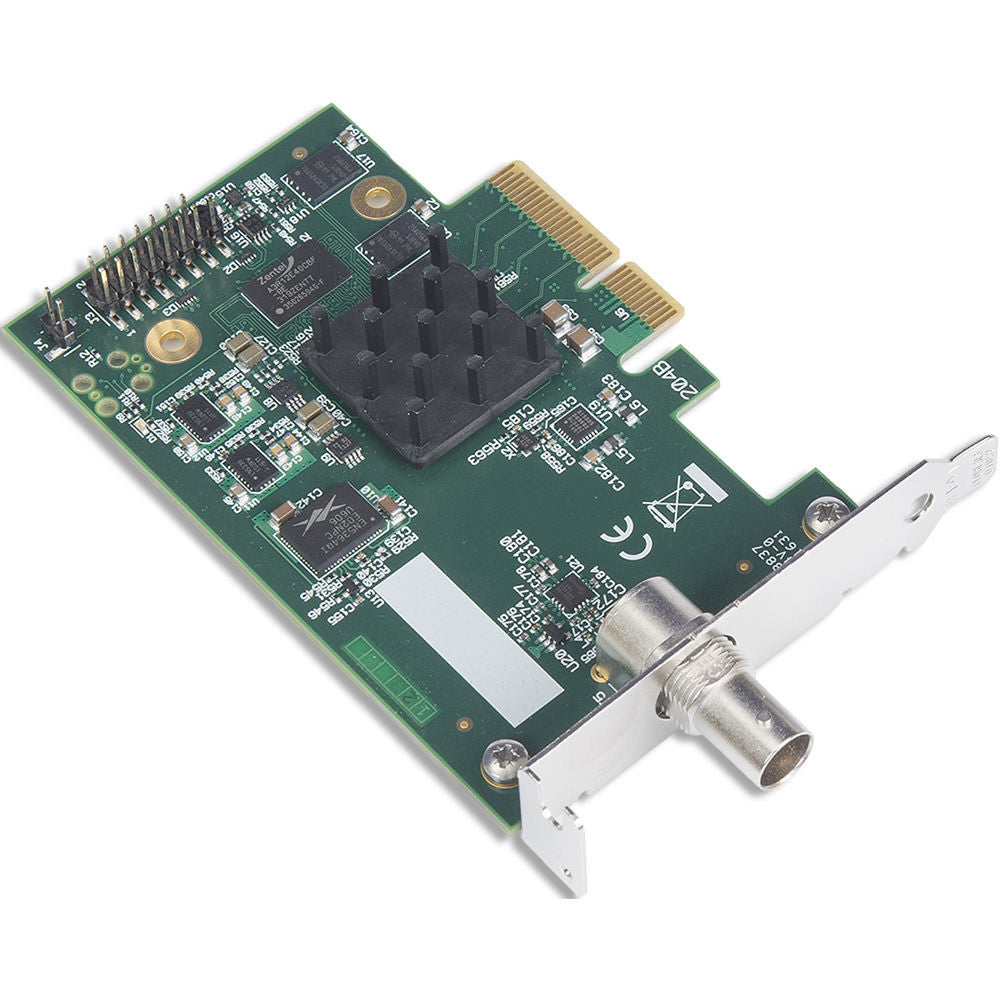

The VisionLC-SDI Single-Channel LiveStream Capture Card from Datapath provides tri-band SDI capture for small form factor appliances being used in medical environments, simulation systems, lecture capture, real-time streaming, and videoconferencing. The card allows captured video to be processed and delivered in real time to a processor or graphics card. It supports onboard color space conversion and scaling, providing the ability to efficiently transfer the video signal in a suitable format for rendering or encoding applications.
The VisionLC-SDI capture card natively supports 32-, 24-, 16- and 12-bit YUV and RGB formats. Built upon the Microsoft AV Stream framework, the card's inputs can be accessed and enumerated by any DirectShow or Media Foundation supported application. A Video for Linux (V4L) driver package is available for download.
- Single SDI capture channel
- Maximum capture resolution of SD / HD / 3G at 60 Hz
- 800 Mb/s DMA bandwidth
- High-performance up and down scaling
- Color space conversion to support output formats
- PCI Express Gen 1 x 4 low profile
- Datapath unified Windows and Linux driver support
- Tested applications include Microsoft Media Encoder, VLC, Telestream WireCast, vMix, VirtualDub, VidBlaster, OBS Project, and Adobe Flash Media Encoder
| Card Type | PCIe Gen 1 x 4 plug-in card |
| Connector | 1 x SDI-BNC |
| Capture Resolution | Maximum: SD-HD-3G Level A and Level B at 60 Hz |
| Transfer Rate | 800 Mb/s maximum DMA transfer rate |
| Input Mode Select | Supports SMPTE-352 Payload identifiers |
| Color Space Conversion | 32-/ 24- / 16-bit RGB (4:4:4) 16-bit YUV (4:2:2) 12-bit YUV, NV12, YV12 (4:2:0) |
| Audio Support | Stereo pair PCM audio via SDI input at 16 bits in depth, sampling options include 44.1/ 48/ 96 kHz |
| Video Modes | SD-SDI (480i/576i) ST-259, EBU 3276 HD-SDI (up to 1080i) ST-260, 274,296 3G-SDI (up to 1080p) ST-274, 296 2K Digital Cinema modes ST-2048-2 |
| Low Latency | LiveStream: Capture Single frame time plus DMA transfer of final line |
| Operating System Support | Linux Windows Server 2003, 2008, Vista, XP, 7, 8/8.1, and 10 |
| Power Requirements | Maximum Current at 1 A at 3.3 V Maximum Power: 3.3 W |
| Operating Temperature | 32 to 96°F (0 to 35°C) |
| Storage Temperature | -4 to 158°F (-20 to 70°C) |
| Relative Humidity | 5 to 90% non-condensing |
| Dimensions | 4.1 x 2.5" (103 x 64 mm) |
| Packaging Info | |
|---|---|
| Package Weight | 0.5 lb |
| Box Dimensions (LxWxH) | 12.7 x 6.3 x 3.4" |
- VisionLC Software CD
- Limited 3-Year Warranty
