Description
AVMATRIX UC1118 Overview

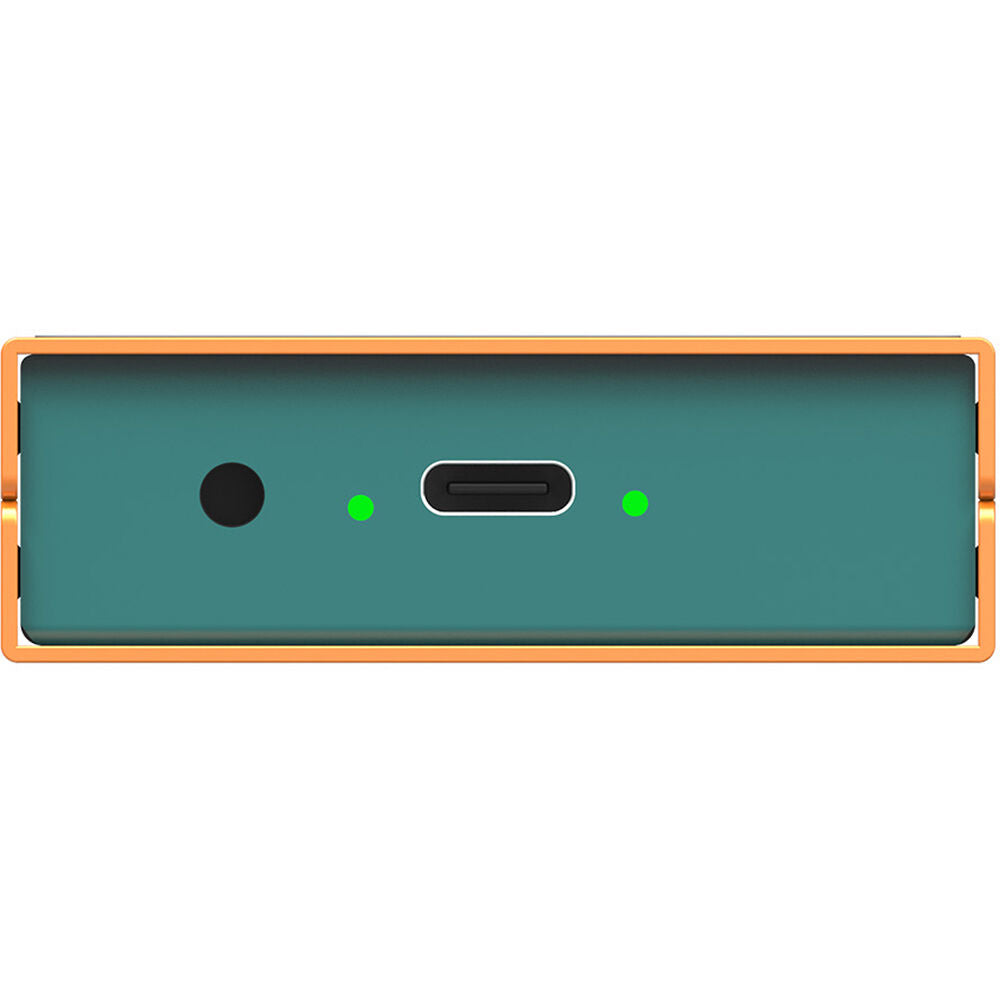

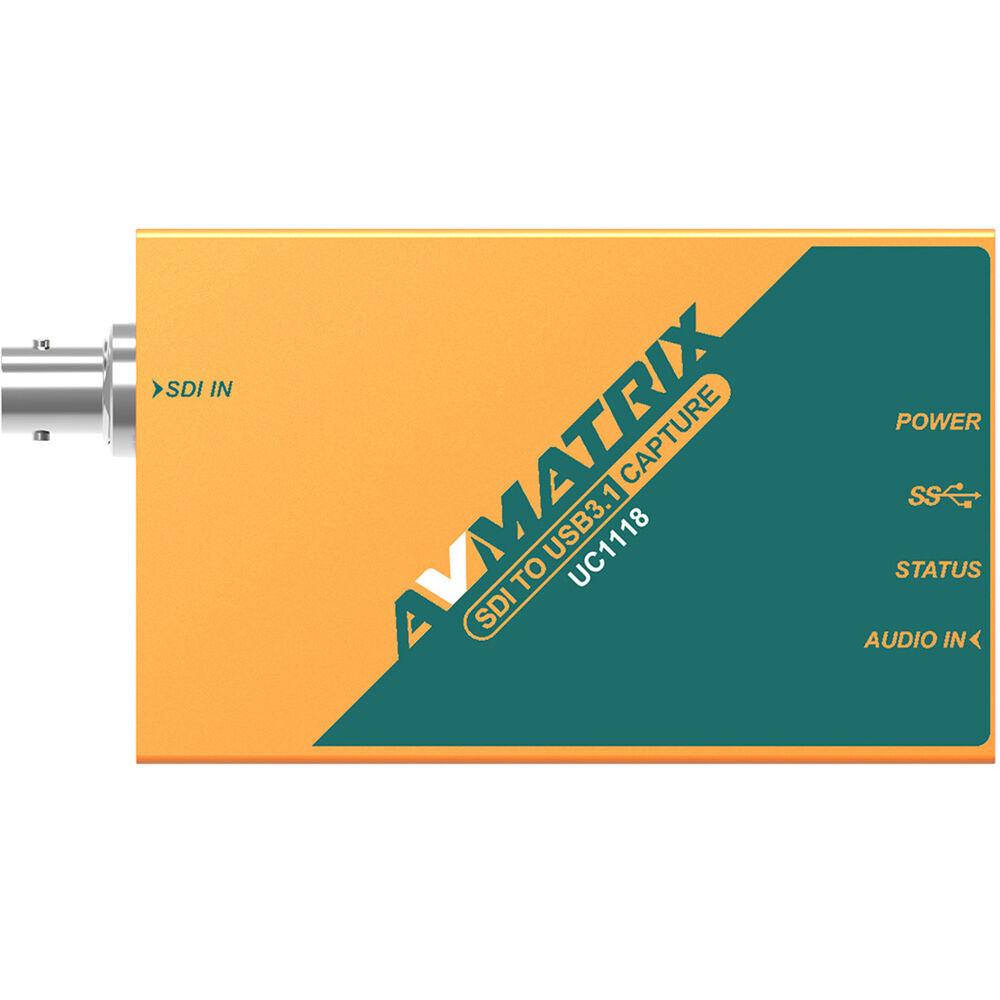

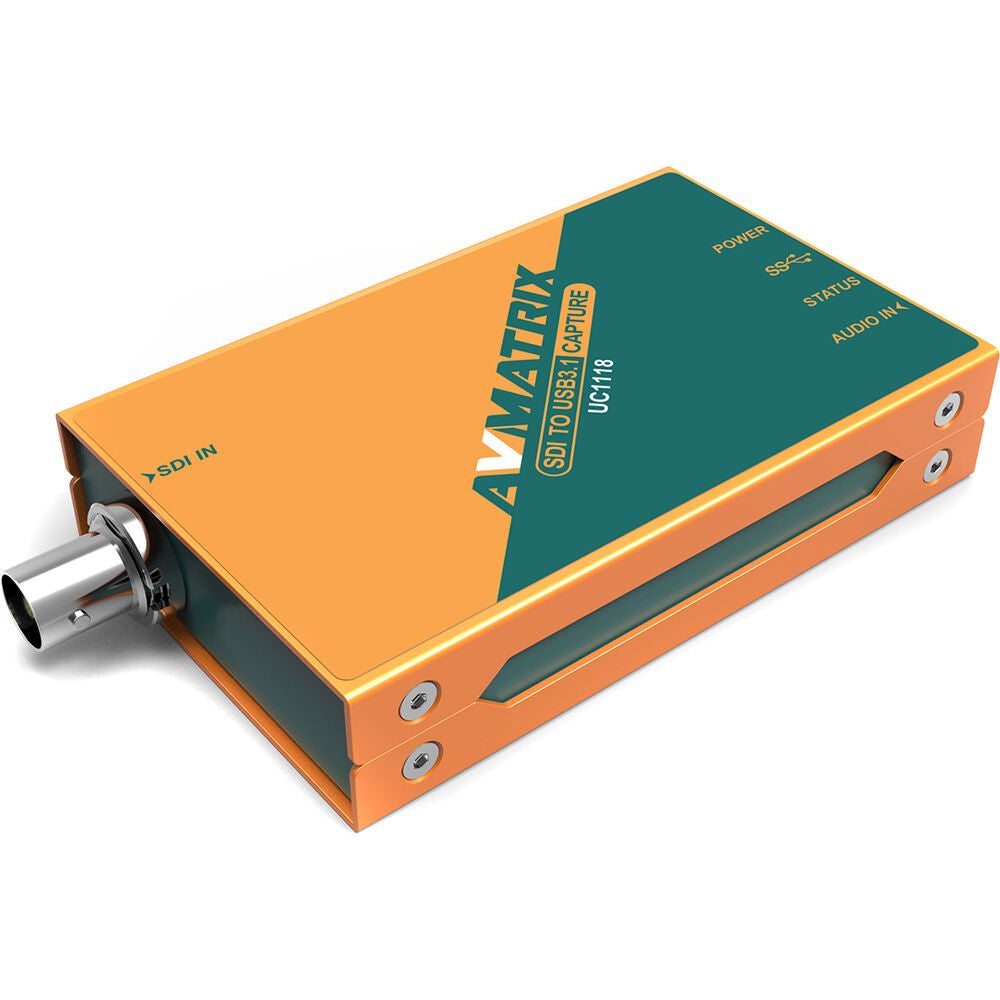

Use the compact UC1118 SDI to USB 3.1 Type-C Video Capture device from AVMATRIX to record or stream an SDI signal via USB 3.1. With its 3G-SDI BNC input, this capture device supports video resolutions up to 1920 x 1080p60. It automatically detects the incoming video format and transmits it via USB 3.1 at up to 200 MB/s. It supports UVC and UAC video capture, as well as YUV video output. On the audio side, it has a 3.5mm stereo line input and supports 2-channel, 16-bit, 48 kHz PCM audio.
This plug-and-play device offers driver-free and power-free operation. The UC1118 is compatible with Windows, Linux, and macOS, and it works with OBS, Zoom, Teams, Twitch, and other platforms.
Features
Compatibility
- OBS Studio
- Skype
- Zoom
- Teams
- Google Meet
- YouTube Live
- QuickTime Player
- FaceTime
- Wirecast
- Camtasia
- Ecamm Live
- Twitch
- Additional platforms
Compatible operating systems:
- Windows
- macOS
- Linux
In the Box
- AVMATRIX UC1118 SDI to USB 3.1 Type-C Video Capture
- USB Type-A Cable
- Limited 1-Year Warranty
AVMATRIX UC1118 Specs
| Video Input Connectors | 1 x BNC (3G-SDI / HD-SDI / SD-SDI) |
| Input Video Format | SDI 1080p: 24/25/29.97/30/50/59.94/60 fps 1080PsF: 23.98/24/25/29.97/30 fps 1080i: 50/59.94/60 fps 720p: 23.98/24/25/29.97/30/50/59.94/60 fps 576i / 625 lines: 50 fps 480i / 525 lines: 59.94 fps |
| Audio Input Connectors | 1 x 1/8" / 3.5 mm TRS Stereo |
| Input Audio Format | Analog: 48 kHz / 16-Bit |
| Embedded Audio Input | SDI |
| Output Video Format | USB Type-C 1080p WUXGA (1920 x 1200) WUXGA+ (1680 x 1050) UXGA (1600 x 1200) WXGA+ (1440 x 900) FWXGA (1366 x 768) 1280 x 960 SXGA (1280 x 1024) WXGA (1280 x 800) 720p XGA (1024 x 768) 1024 x 576 960 x 540 856 x 480 SVGA (800 x 600) PAL (768 x 576) 480p VGA (640 x 480) 640 x 360 |
| Output Audio Format | USB Audio |
| Embedded Audio Output | USB Type-A: 2-Channel |
| OS Compatibility | Windows Linux macOS |
| Power Consumption | Device: 3.5 W |
| Operating Temperature | -4 to 140°F / -20 to 60°C |
| Storage Temperature | -22 to 158°F / -30 to 70°C |
| Operating Humidity | 20 to 90% |
| Dimensions | 36.2 x 22.8 x 7.5" / 92 x 58 x 19 cm |
| Weight | 7.2 oz / 205 g |
| Warranty Length | Limited 1-Year Warranty |
| Package Weight | 0.695 lb |
| Box Dimensions (LxWxH) | 5.9 x 4.6 x 1.7" |
