Description
AVMATRIX TB-P51 Overview

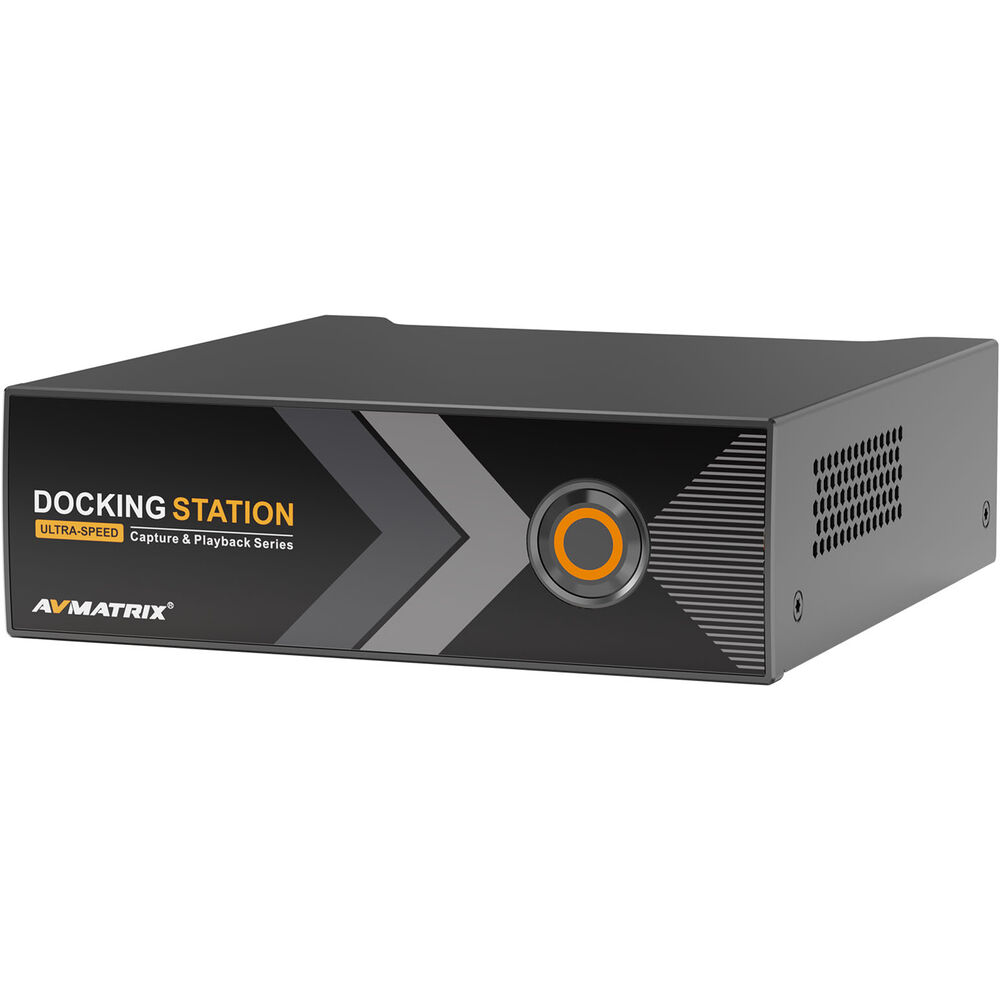

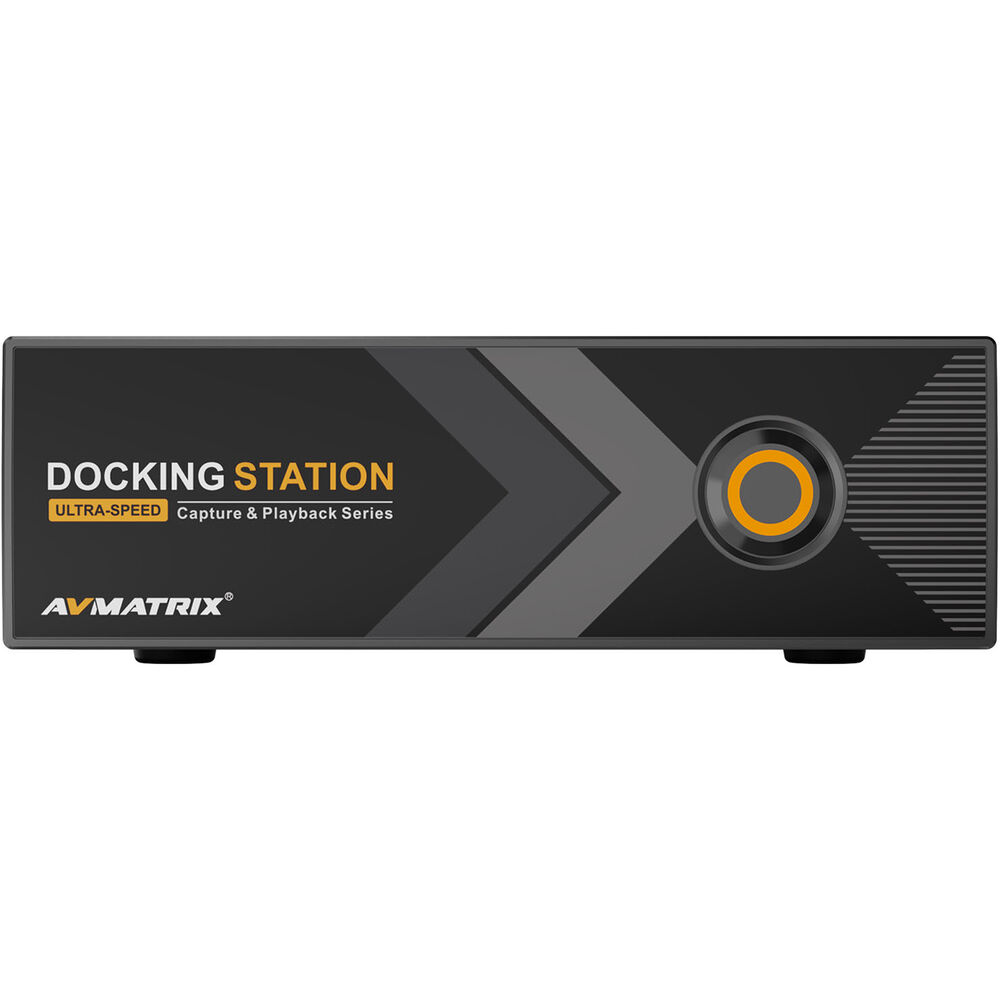

The TB-P51 3G-SDI Capture & Playback Thunderbolt Series Docking Station from AVMATRIX features two ultra-speed 40 Gb/s Thunderbolt ports. Equipped with built-in coiling for continuous 24/7 use, the unit is equipped with five-channel 3G-SDI connectivity supporting resolutions up to 1080p60. It also has a DisplayPort output and a USB-3.1 Gen2 USB-A port. The device supports daisy-chaining via its Thunderbolt connectors, and it works with Windows and Linux operating systems with SDK.
Items Included
- AVMATRIX TB-P51 3G-SDI Capture & Playback Thunderbolt Series Docking Station
- 12 VDC, 3A Power Adapter
- High-Speed USB-C Cable
- Limited 3-Year Manufacturer Warranty
Additional Resources
No additional resources available
AVMATRIX TB-P51 Specs
Inputs/Outputs
| System Connection |
USB-C (Thunderbolt)
|
| Video I/O |
Input

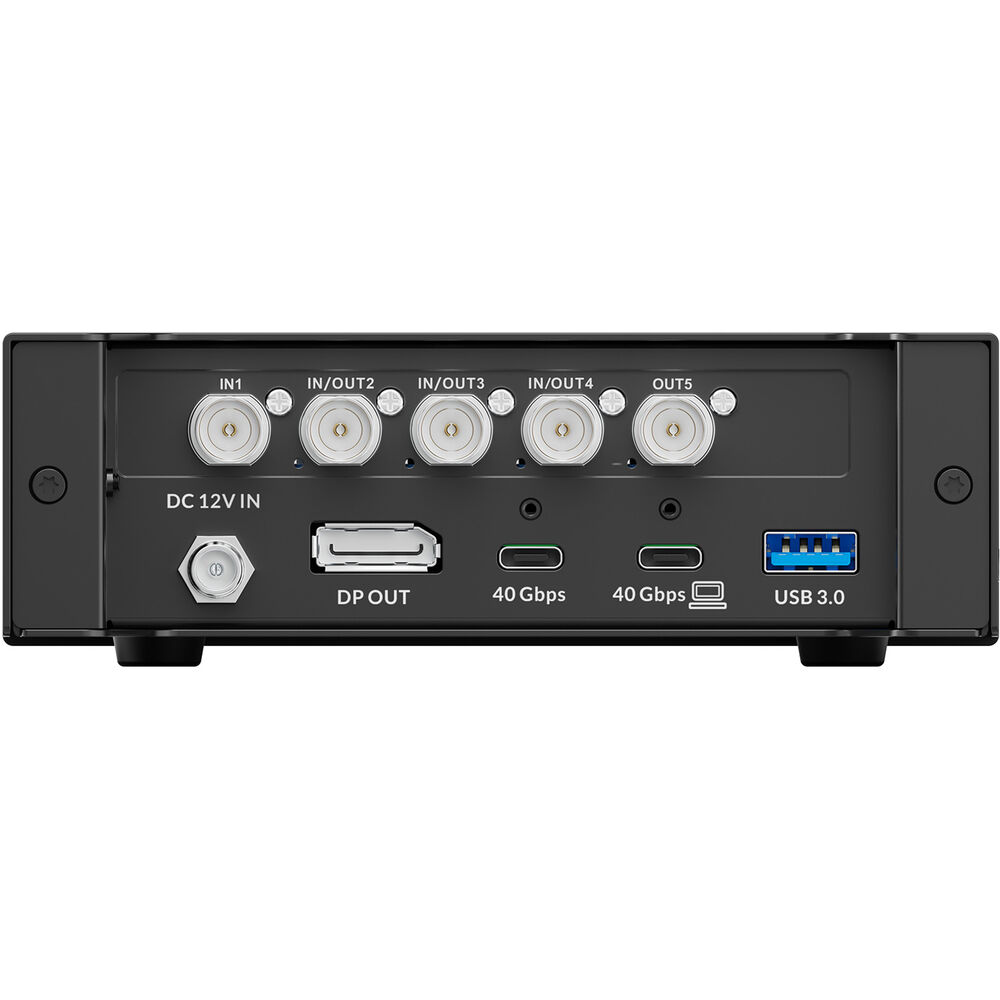

1x BNC (3G-SDI) Female Input/Output 3x BNC (3G-SDI) Female Output 1x BNC (3G-SDI) Female 1x DisplayPort 1.4 Female 2x Thunderbolt Female |
| Audio I/O |
No
|
| Other I/O |
Input/Output
1x USB-A 3.1/3.2 Gen 2 |
Format Support
| Video Resolution |
BNC Input/Output (8-Bit 4:2:2 YUV)
1920 x 1080 up to 60 fps |
| Audio Format |
Unspecified Digital Signal Input/Output: 48 kHz / 24-Bit
|
| Embedded Audio |
HDMI/SDI
|
Hardware
| OS Compatibility |
Windows
Linux |
Power
| Power I/O |
1x Barrel (12 to 21 VDC ) Input
|
| Power Consumption |
12 W
|
General
| Operating Conditions |
32 to 104?F / 0 to 40?C at 0 to 90% Humidity
|
| Dimensions |
5.5 x 5.4 x 1.7" / 138.8 x 138 x 42.6 mm
|
Packaging Info
| Package Weight |
3.275 lb
|
| Box Dimensions (LxWxH) |
11.3 x 7.6 x 3.5"
|
