Description

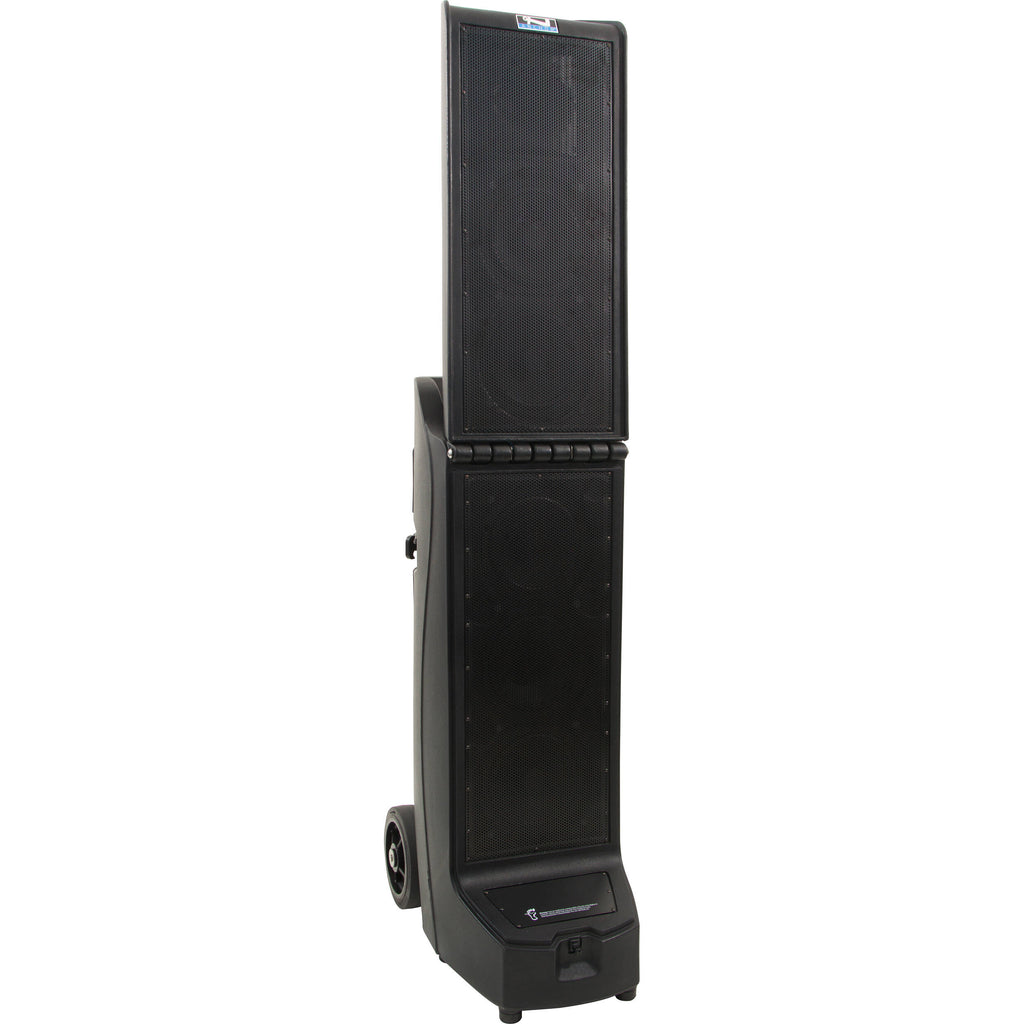

Delivering professional amplification for announcements, music, and more, the Anchor Audio Bigfoot 3 Hub 2 combines the Bigfoot 3 portable line-array PA system with the AnchorFlex audio transceiver, AnchorLink wireless mic receiver for two microphones, and two wireless handheld microphones.
Designed to deliver versatile and powerful amplification to crowds of up to 2500 people, the Anchor Audio Bigfoot 3 Hub with AnchorLink and AnchorFlex is a portable line-array PA system that's built to dominate crowds while amplifying to anywhere with deeper bass, seamless connectivity, and limitless flexibility. With a 150 x 150' coverage area, the Bigfoot 3 Hub is well suited for sports venues, educational facilities, and various indoor and outdoor events. The 300W amplifier drives five 8" neodymium woofers and a single neodymium compression driver, which combine to provide a 100 Hz to 15 kHz frequency response and a maximum 130 dB SPL, plenty of volume to cover your audience.
AnchorLink is a wireless microphone receiver that can accept up to two microphones at a distance of up to 300'. AnchorFlex is a transceiver that allows you to connect up to 1000 speaker systems in stereo or mono, with a distance up to 300'.
The built-in Bluetooth receiver allows streaming of music from your smartphone, tablet, or laptop. Two combo XLR-1/4" inputs accommodate wired microphones, while a 1/4" TS input accepts line level and Hi-Z inputs. A 3.5mm input is also available for connecting your favorite portable devices. The balanced 1/4" output can be routed to another PA system or an audio recorder. The integrated mixer functions include volume controls and a 2-band equalizer. Power the via AC power or the three 12V lithium iron phosphate (LiFePo4) rechargeable batteries, which offer a playback time of 7" hours and a 5 hour recharge time. The large, oversized wheels ensure easy transport across fields and gymnasiums.
- Three built-in rechargeable lithium-ion batteries (7+ hours of playtime)
- Class 1 Bluetooth with 150' range, so you can stream audio right to your speaker
- Line-array components that include five 8? neodymium woofers, and one neodymium compression driver
- Two balanced XLR-1/4" combo inputs for wired microphones, one 1/4" unbalanced line in for mixers and instruments, one 1/4" line out for connecting companion speakers
- Folding design that's easy to set up with just one person
- Rugged, weatherproof case designed to keep your electronics safe when you play or transport your speaker
- Heavy-duty wheels designed to go everywhere
- Separate frequency range 1.9 GHz
- Long range, 300'
- High level of security against interception
- Encryption 64-bit
Professional Grade
- Can have up to 30 systems in one room
- Very energy-efficient
- Better quality of audio frequency response 60 Hz to 12 kHz
- Latency 14 ms
- Battery operating time min 10 hrs - up to 20 hrs depending on volume
- Average output 10mW
- Switch speakers from transmitting to receiving mode on the go
- Switch between mono and stereo with the push of a button
- Use only one transmitting speaker to feed 1 stereo connection or up 1000 receiving speakers, all with crystal-clear sound
- AnchorFlex is available on Series 3 Connect models
The Anchor Audio WH-LINK is a classic wireless handheld microphone compatible with sound and PA systems equipped with AnchorLink Series receivers. The mic operates in the less-populated 1.9 GHz frequency range with automatic frequency hopping to deliver a clear signal with reduced interference, at a range of up to 300'.
Pairing the WH-LINK to your sound system is a quick and easy one-time operation done by pressing just two buttons, and doesn't have to be repeated every time you turn on your system.
The WH-LINK features volume and mute buttons which enable you to conveniently mute and adjust the volume of the microphone without having to go to your speaker. The mic can operate up to eight hours on two AA batteries.
- 1.9 GHz wireless frequency range?a less-populated frequency band for reduced signal interference
- Automatic frequency hopping ensures a clear transmission without having to manually change the channel
- 300? line-of-sight wireless range
- Volume and mute control on the microphone
- Lightweight design
- One-time pair function allows you to pair your mic with your system once without having to repeat the operation
- Runs up to eight hours on two AA batteries
- Bigfoot
- Beacon
- Liberty
- Go Getter
- MegaVox
- MiniVox
- AN-Mini
- AN-1000X+
- AN-130+
- CouncilMAN
- Acclaim
Items Included

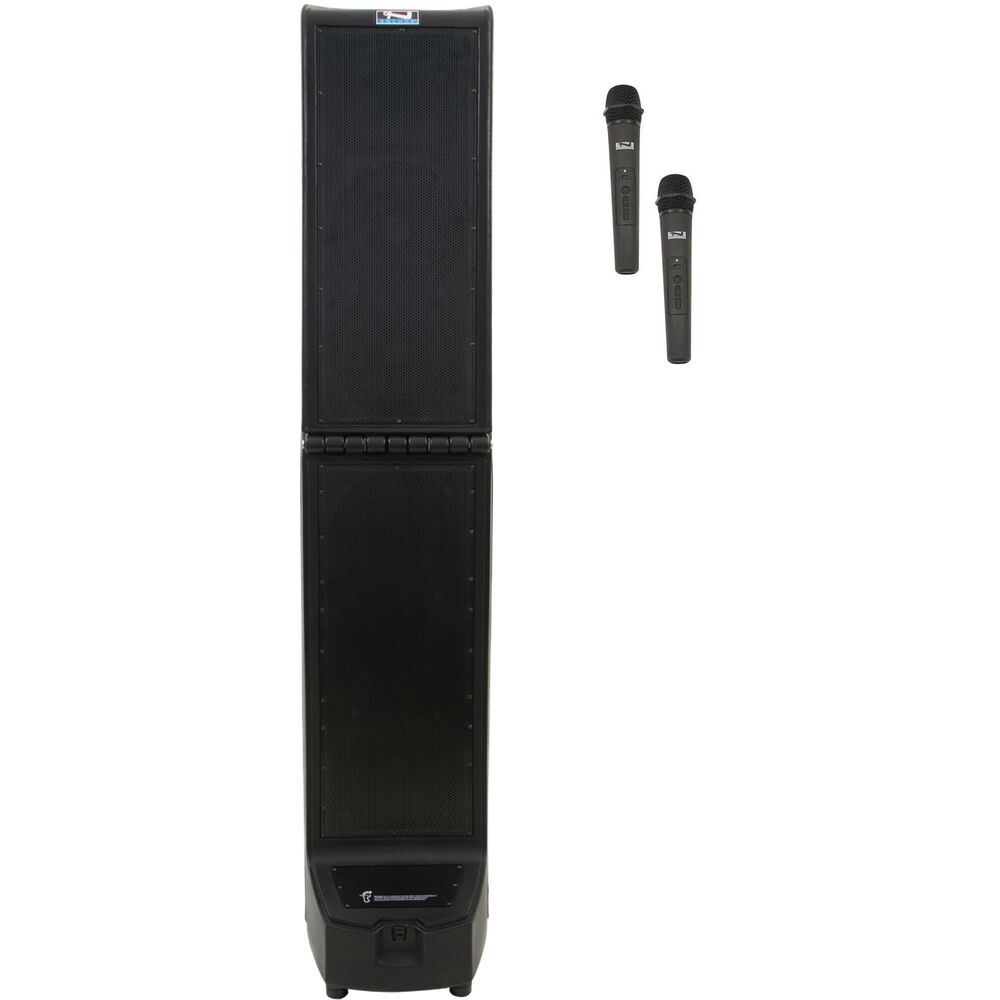

- Anchor Audio Bigfoot 3 Hub Portable Line Array PA System with Bluetooth, AnchorFlex Transceiver, and AnchorLink Wireless Mic Receiver with 2-Mic Capacity
- Power / Charging Cable
- Limited 6-Year Manufacturer Warranty (Line Array)
- Limited 4-Year Manufacturer Warranty (Battery)
- 2 x Anchor Audio WH-LINK Wireless Handheld Microphone (1.9 GHz)
- Limited 2-Year Manufacturer Warranty
Additional Resources
No additional resources available
Anchor Audio Bigfoot 3 Hub Portable Line Array PA System with Bluetooth, AnchorFlex Transceiver, and AnchorLink Wireless Mic Receiver with 2-Mic Capacity
| Speaker Configuration |
1x 2-Way Loudspeaker
|
| Number of Input Channels |
3 (3 x Mono, 1 x Stereo)
|
| Amplifier Power Rating |
300 W
|
| HF Driver |
1x Compression Driver
|
| LF Driver |
5x 8" / 20.3 cm Woofer
|
| Audio I/O |
2x Combo XLR-1/4" 3-Pin Female Balanced Mic Input
1x 1/4" TS Female Unbalanced Line/Hi-Z Input 1x 1/8" / 3.5 mm TRS Female Unbalanced Line Input 1x 1/4" TS Female Unbalanced Line Output 1x speakON NL4 Speaker Output |
| Bluetooth |
Yes
|
| Speaker Configuration |
1x 2-Way Loudspeaker
|
| Number of Input Channels |
3 (3 x Mono, 1 x Stereo)
|
| Amplifier Power Rating |
300 W
|
| Enclosure Type |
Bass-Reflex
|
| HF Driver |
1x Compression Driver
|
| LF Driver |
5x 8" / 20.3 cm Woofer
|
| Magnet |
HF Driver/LF Driver:
Neodymium |
| EQ |
1x HF Shelf
1x LF Shelf |
| Semi-Parametric EQ |
No
|
| Effects |
No
|
| Filters |
No
|
| Dynamic Processing |
No
|
| Frequency Response |
100 Hz to 15 kHz
|
| Maximum SPL |
130 dB
|
| Max Coverage Distance |
150' / 45.7 m
|
| Max Coverage Area |
150 ft? / 45.7 m?
|
| I/O Impedance |
Combo XLR-1/4" Mic Input:
10 Kilohms 1/4" Line Output: 600 Ohms |
| Audio I/O |
2x Combo XLR-1/4" 3-Pin Female Balanced Mic Input
1x 1/4" TS Female Unbalanced Line/Hi-Z Input 1x 1/8" / 3.5 mm TRS Female Unbalanced Line Input 1x 1/4" TS Female Unbalanced Line Output 1x speakON NL4 Speaker Output |
| Phantom Power |
+34 V
|
| Mobile App Compatible |
No
|
| Network I/O |
No
|
| Wireless Connectivity |
Bluetooth, RF Transmitter
|
| Max Wireless Range |
Bluetooth:
150' / 45.7 m Speaker Link: 300' / 91.4 m |
| Bluetooth |
Yes
|
| Battery Type |
3x Rechargeable 12 V Lithium (Replaceable)
|
| Approximate Battery Life |
7 Hours
|
| Battery Charging Time |
5 Hours
|
| Internal Battery Capacity |
7.5 Ah
|
| AC Input Power |
100 to 240 VAC, 50 / 60 Hz
|
| Current Consumption |
3.5 A
|
| AC Power I/O |
1x IEC 2-Pin
|
| Transport Options |
1x Handle (Top)
2x Wheels (Bottom) |
| Dimensions |
68.5 x 23 x 14" / 174 x 58.4 x 35.6 cm (Full Assembly)
42.5 x 23 x 14" / 108 x 58.4 x 35.6 cm (Collapsed) |
| Weight |
64 lb / 29 kg
|
| Package Weight |
77 lb
|
| Box Dimensions (LxWxH) |
43.5 x 25 x 16.25"
|
