Description
Product Overview

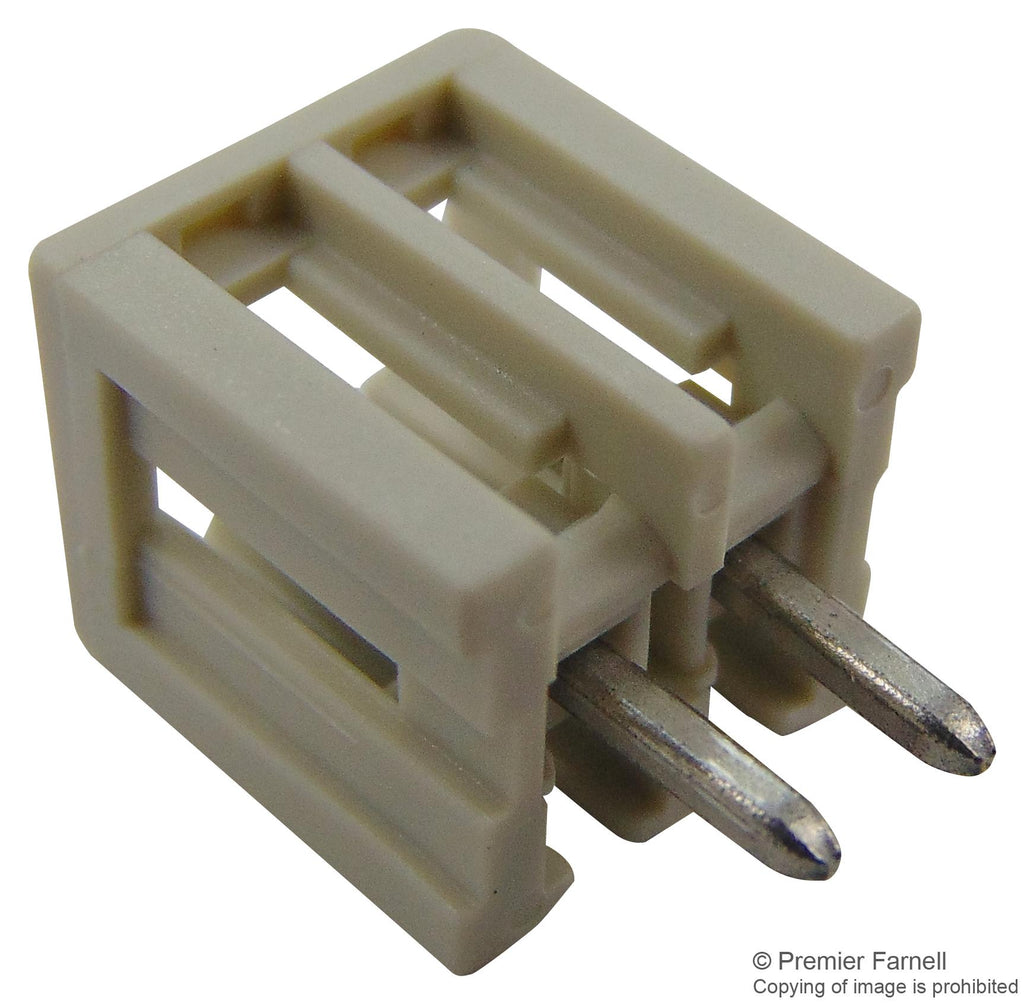

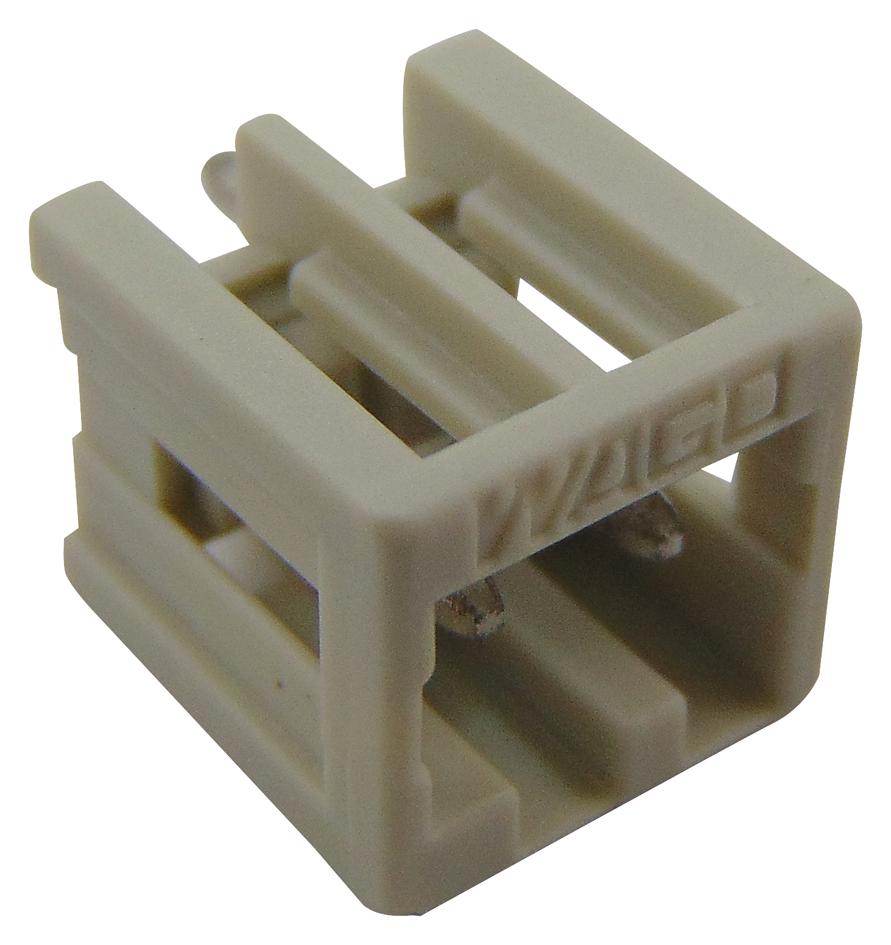

The 734-132 from Wago is a black colour, 2-pole male header for PCBs with 3.5mm (0.138inch) pin spacing and 1mm x 1mm straight solder pins. It is 100% protected against mismating with closed end, only mating halves with the same pole number can be connected together. The connector has tin plated electrolytic copper (Ecu) contacts and polyphthalamide (PPA GF) insulation. It has 0.02MJ fire load, 0.84g weight and 9.4mm (0.37inch) x 12.7mm (0.5inch) x 8.5mm (0.335inch) dimension (W x H x D). The solder pin length is 2.4mm and Coding options are available.
- THR male header for reflow soldering in SMT applications, vertical PCB mounting
- Optimal thermal penetration via pin enclosure design provides lower soldering temperatures
- Ratings per IEC/EN 60664-1 standards and flammability class per UL94 V0
- Robust housing, shock and vibration resistant
- Rated impulse voltage of 2.5KV (III/3), 2.5KV (III/2) and 2.5KV (II/2)
- Rated voltage of 160V (III/2), 320V (II /2) and rated current of 10A
- Limit temperature range from -60°C to 100°C
Applications
Industrial
Product details
| Gender | Header |
| No. of Positions | 2Ways |
| Rated Voltage | 300V |
| Product Range | MCS MINI 734 |
| Pitch Spacing | 3.5mm |
| Rated Current | 10A |
| Block Orientation | Through Hole Vertical |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | WAGO |
| Part Number | 734-132 |
| Quantity | Each |
| Technical Data Sheet (99.11KB) EN | View or download |
| Manufacturer Product Page (129.97KB) EN | View or download |
| Product Change Notice (492.28KB) EN | View or download |
