Product Overview

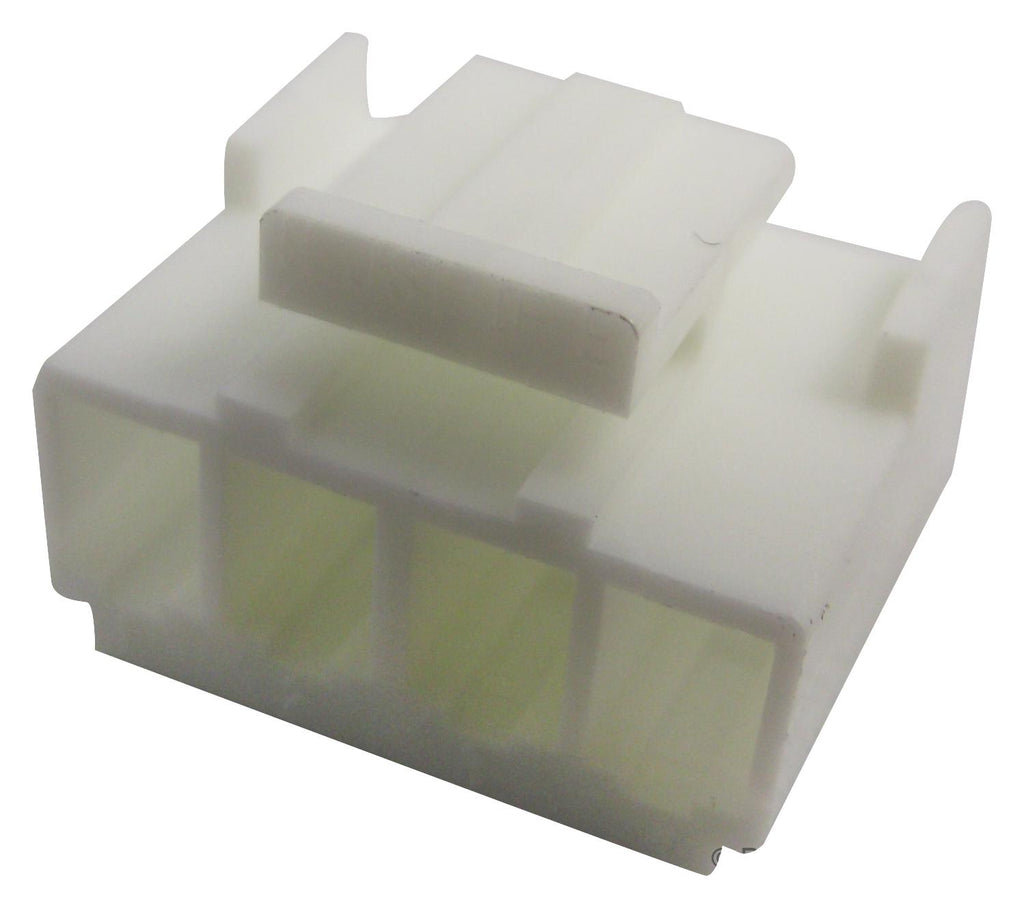

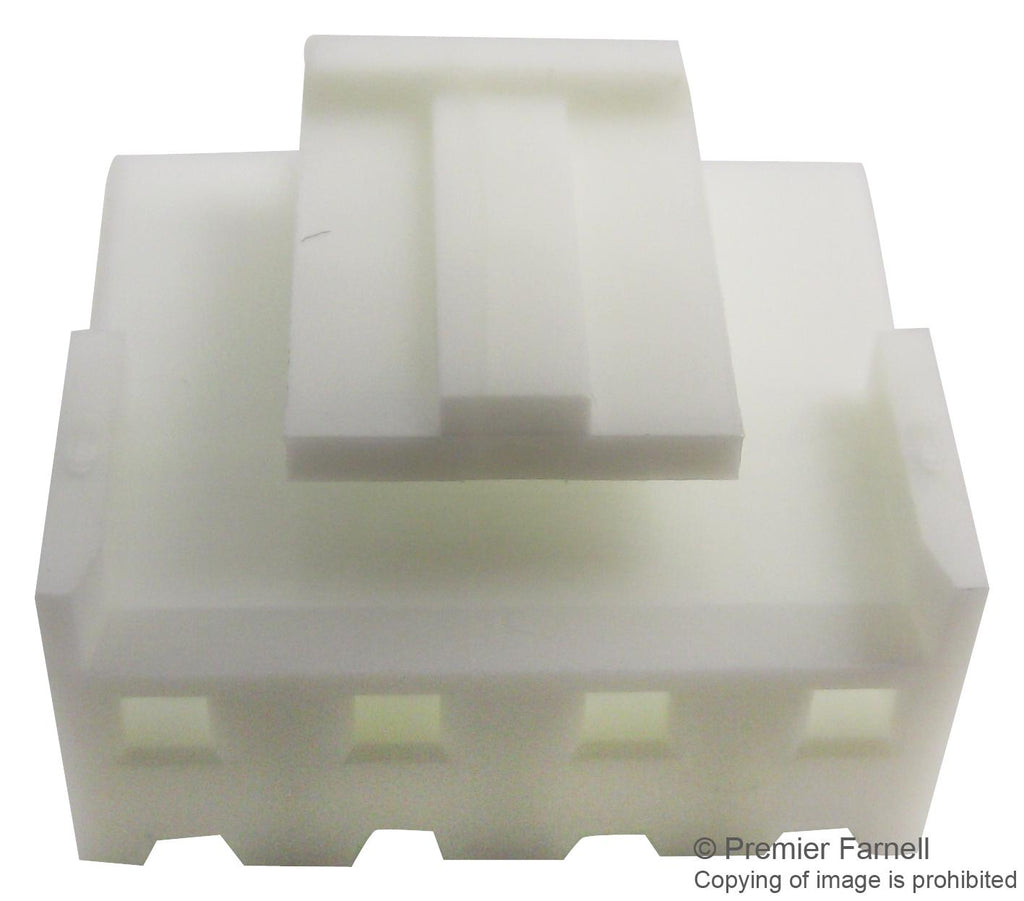

VHR-4N is a VH series N type housing. It is a 3.96mm pitch, single row housing for use with VH series crimp contacts. The contact retention lances on housing allow visual confirmation of contact lock-in for easy and secure insertion.
- No. of positions: 4-ways
- Receptacle gender
- Polyamide 6, UL94V-0 material
- Rated voltage is 250V AC/V DC and rated current is 10A
- Operating temperature range of -25°C to 85°C
- Natural colour
Product details
| Product Range |
VH |
| No. of Positions |
4Ways |
| For Use With |
SVH-21T-P1.1 Contacts |
| Gender |
Receptacle |
| Pitch Spacing |
3.96mm |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
JST / JAPAN SOLDERLESS TERMINALS |
| Part Number |
VHR-4N |
| Quantity |
Each |
| Technical Data Sheet (111.94KB) EN |
View or download |
