Product Overview

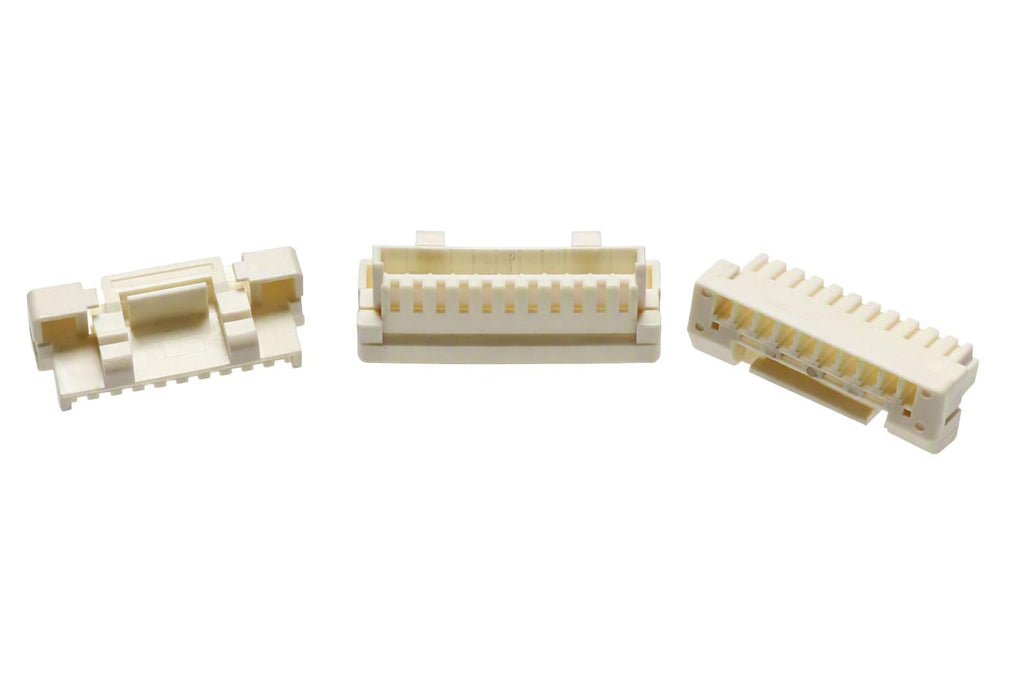

MP014868 is a 1.25mm wire to board housing with lock.
- 10 positions
- Secure locking and contact lock structure
- Protection against terminal stubbing
- Dual inner positive locks
- Facilitates board placement
- 1A AC/DC current rating, 50V AC/DC voltage rating
- 20mohm maximum contact resistance, 100Mohm minimum insulation resistance
- 500VAC for one minute withstanding voltage
- High temp plastic (UL94V-0) natural insulator, phosphor bronze terminals
- Operating temperature range from -40°C to +105°C
Product details
| Product Range |
MP 1.25MM WTB Lock Series |
| No. of Positions |
10Ways |
| For Use With |
Multicomp Pro 1.25MM WTB Lock Series Socket Contacts |
| Gender |
Receptacle |
| Pitch Spacing |
1.25mm |
| SVHC |
No SVHC (04-Feb-2026) |
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
MP014868 |
| Quantity |
Each |
| Technical Data Sheet (239.78KB) EN |
View or download |
