Description
Product Overview

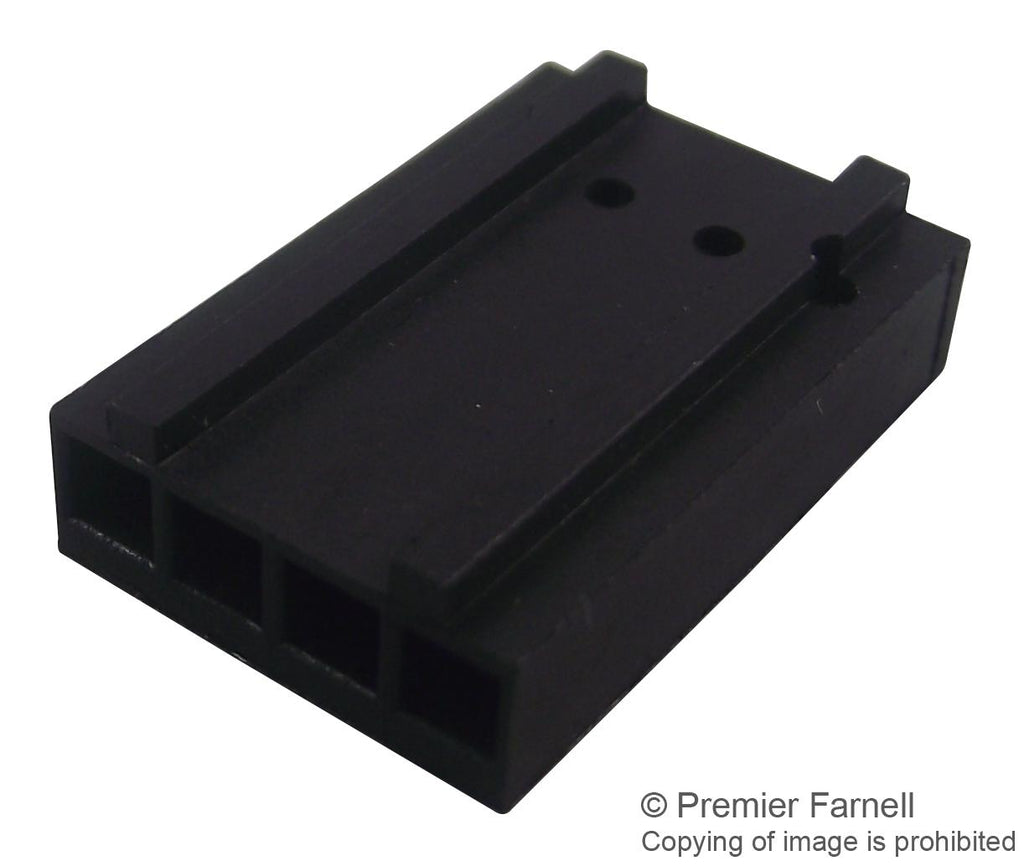

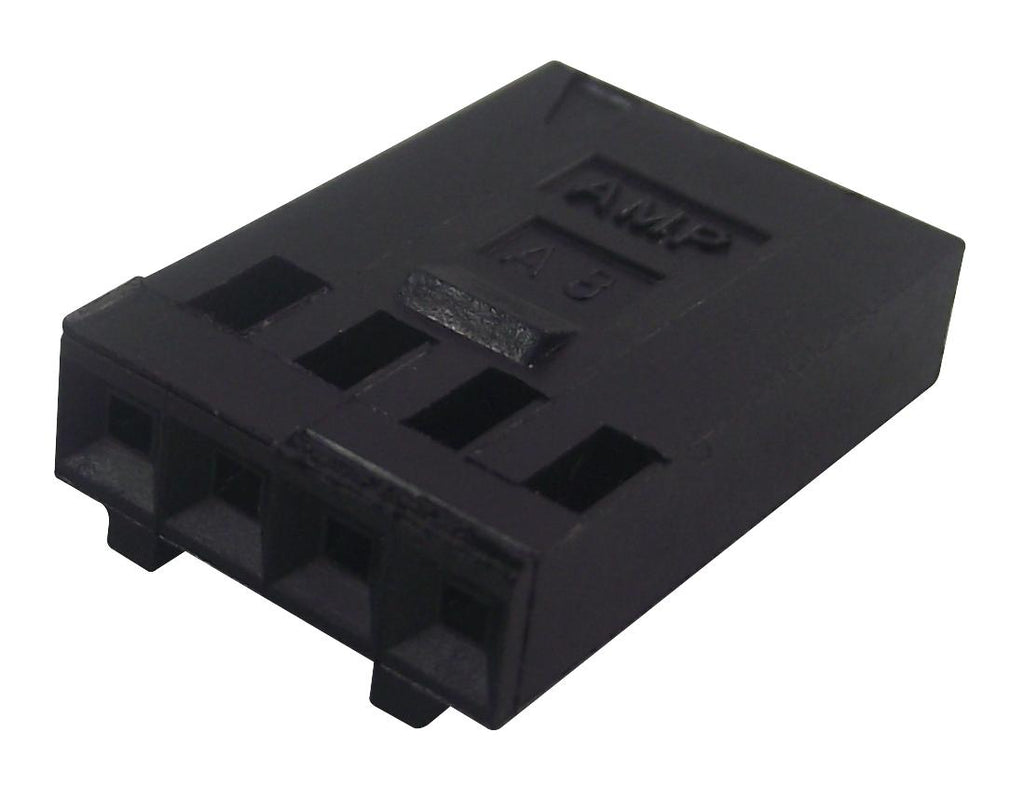

The 102241-2 is a 4-position 1-row unstamped Wire-applied Receptacle Housing with detent latching mating connector lock and a latch mating alignment. This receptacle style socket housing is made from flame-retardant black thermoplastic and beryllium copper contacts. This Mod IV series housing is suitable for use with header.
- 750V Dielectric withstanding voltage
- 250VAC Operating voltage
- 12mΩ Termination resistance
- 5000MΩ Insulation resistance
- UL94V-0 Flammability rating
- Rugged
Applications
Industrial
Product details
| Product Range | AMPMODU IV/V |
| No. of Positions | 4Ways |
| For Use With | AMPMODU IV/V Series Contacts |
| Gender | Socket |
| Pitch Spacing | 2.54mm |
| SVHC | No SVHC (04-Feb-2026) |
Other details
| Brand | TE CONNECTIVITY - AMP |
| Part Number | 102241-2 |
| Quantity | Each |
| Manufacturer Catalogue (4.20MB) EN | View or download |
| Product Change Notice (243.40KB) EN | View or download |
| 3D Product Image (37.93KB) EN | View or download |
| Enhanced Product Overview (925.97KB) EN | View or download |
| Drawing (95.25KB) EN | View or download |
