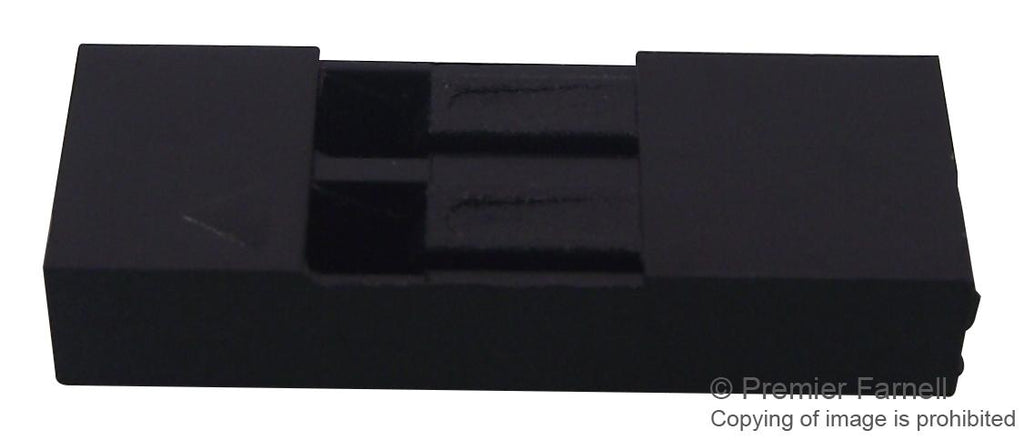

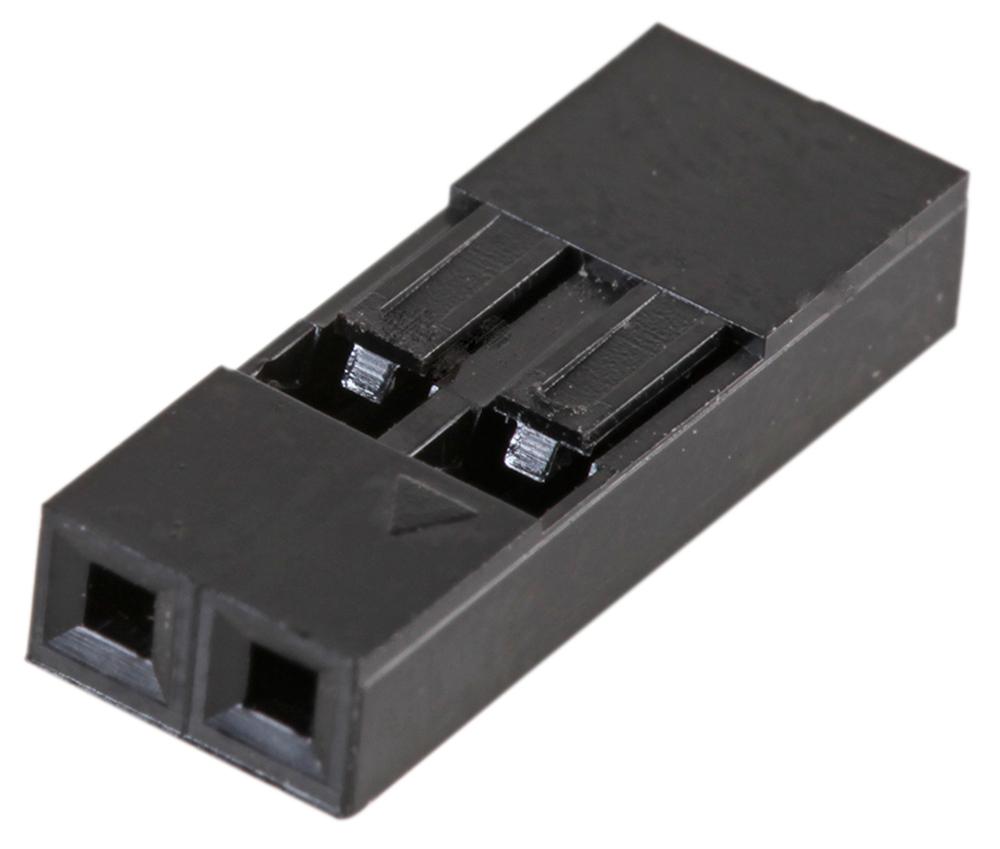

2226A-02 from Multicomp Pro is a 2.54mm pitch, single row 2 way housing for use with crimp contacts.
- 3A AC/DC rated current
- 250VAC/DC rated voltage
- 20mohm maximum contact resistance
- 1000Mohm minimum insulation resistance
- 600VAC for one minute withstanding voltage
- Operating temperature range from -25 to +85°C
- Noryl (UL94V-1) insulator
- Black colour housing
- Multicomp Pro products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts
Other details
| Brand |
MULTICOMP PRO |
| Part Number |
2226A-02 |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
