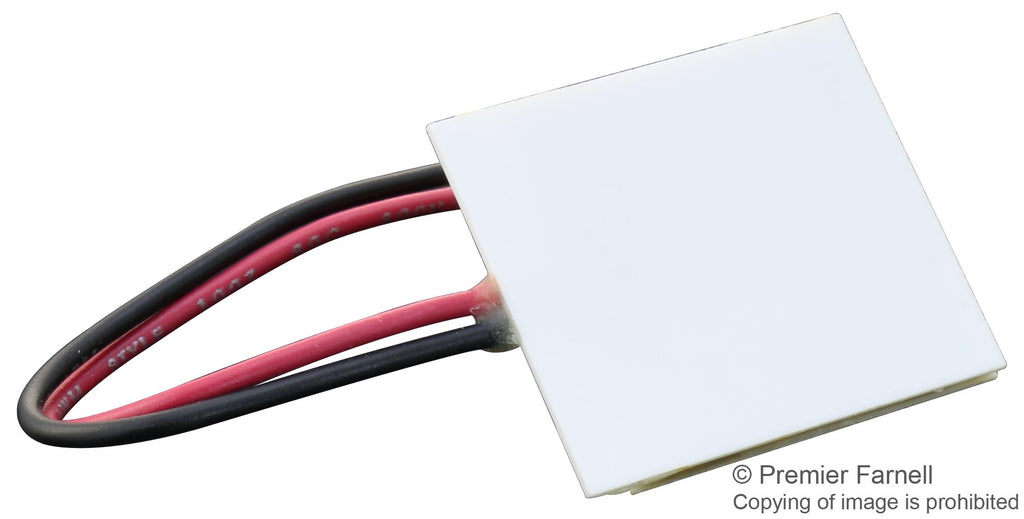

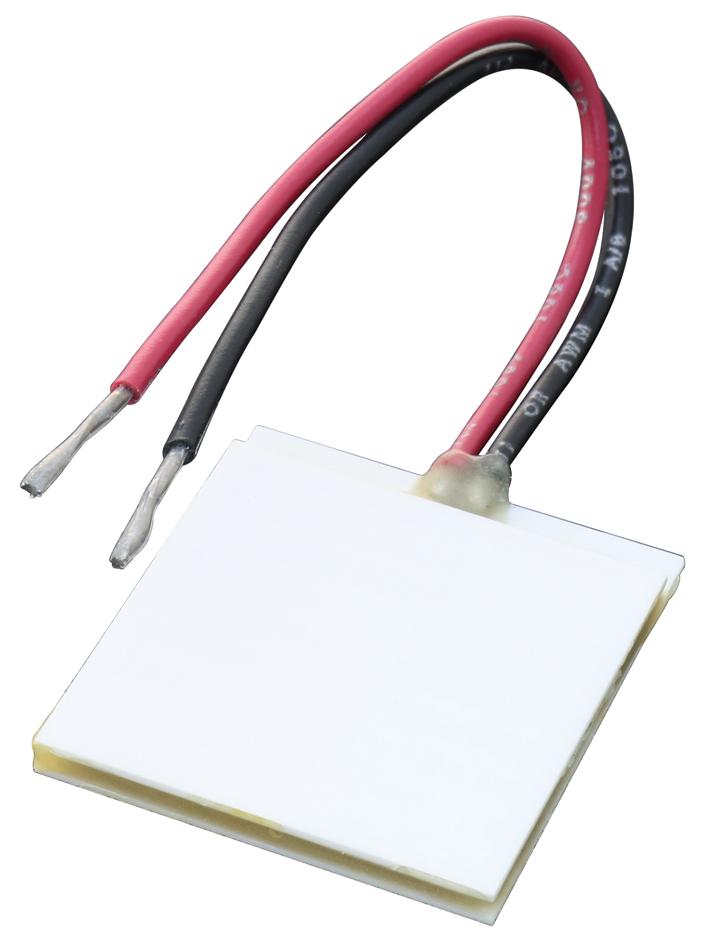

The MCHPE-128-10-05-E is a Peltier Cooler with thermoelectric modules transducer function. High cooling capacity from a small surface and long lifetime in power cycling applications with change of current polarity. With operation current close to 0.5 Imax extremely high COP (coefficient of performance possible. Preferable application, high cooling capacity at high temperatures/cycling.
- Solid-state reliability
- High integrity nickel diffusion barriers on elements
- High strength for rugged environments
- Porched style for enhanced lead wire strength
- Sealed & lapped for multi-module applications
- RoHS and Reach compliant
- Multicomp products are rated 4.6 out of 5 stars
- 12 month limited warranty *view Terms & Conditions for details
- 96% of customers would recommend to a friend
Applications
Sensing & Instrumentation
Product details
| Transducer Function |
Thermoelectric Cooler |
| Power Rating |
88W |
| Internal Resistance |
1.4ohm |
| Current Max @ Diff Temperature Max |
9A |
| Voltage Max @ Diff Temperature Max |
15.8V |
| Temperature Difference Max |
68?C |
| Product Range |
- |
Other details
| Brand |
MULTICOMP |
| Part Number |
MCHPE-128-10-05-E |
| Quantity |
Each |
| Technical Data Sheet EN |
 |
