| ₹ 193.64 includes GST and import duties. | |
| B2B customers can avail ₹ 29.53 ITC on this product | |
| 100% Secure Payments | 100% Genuine product |
Description

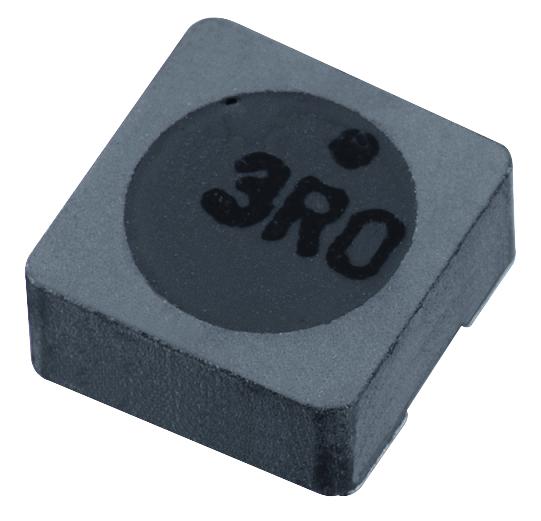

Wurth Electronics WE-TPC series are SMD shielded tiny power inductors with a 4 pad design which provides great mechanical strength. Compared to the unshielded types, the WE-TPC series reduces stray field due to the magnetic shielding.
- Extremely flat power inductor
- High current capability
- Magnetically shielded which results in a low leakage field
- Recommended solder profile: Reflow
- Operating temperature: -40°C to +125°C
Warnings
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Product details
| Inductance: 18µH |
| RMS Current (Irms): 980mA |
| Inductor Construction: Shielded |
| Saturation Current (Isat): 700mA |
| Product Range: WE-TPC |
| DC Resistance Max: 0.16ohm |
| Inductance Tolerance: ± 30% |
| Product Length: 4.8mm |
| Product Width: 4.8mm |
| Product Height: 2.8mm |
Other details
| Brand | WURTH ELEKTRONIK |
| Part Number | 744043180 |
| Quantity | Each (Supplied on Cut Tape) |
| Technical Data Sheet EN |  |
All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them.
Bulk Discount
| Quantity | Price |
| 2 | ₹ 189.77 |
| 3-5 | ₹ 187.83 |
| 5-10 | ₹ 183.96 |
| 10+ | ₹ 180.09 |
Bulk discount will be automatically applied during checkout based on quantity.
