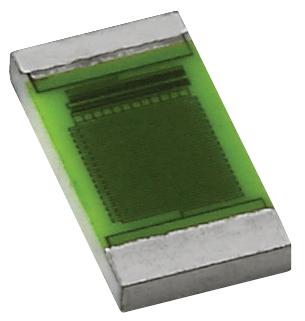

Vishay PNM0603E5001BST5 SMD Chip Resistor 5 Kohm ± 0.1% 150 mW 0603 [1608 Metric] Thin Film Non-Magnetic

The PNM0603E5001BST5 is a precision thin film non-magnetic SMD Chip Resistor with 0603 chip format. Power rating of 150mW and temperature coefficient at ±25ppm/°C. It eliminate materials that would disturb magnetic fields applications such as in MRI magnetic resonance imaging machines. The PNM series chip resistor has been carefully engineered with non-magnetic materials to eliminate the effects of these stray magnetic fields on circuit performance, thereby resulting in simplified shielding requirements and improved sound quality in audio applications. Providing signal conditioning without distortion from magnetic fields.

• 10000MR Insulation resistance
• Moisture-resistant
• High purity alumina substrate
• 100% Visual inspected per MIL-PRF-55342
• Very low noise and voltage coefficient (<-30dB)
• Non-inductive
• ±0.1% Laser-trimmed tolerance
• >10mR Wraparound resistance

Warnings Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	VISHAY
Part Number	PNM0603E5001BST5
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
CAD CadSoft_EAGLE EN
Product Change Notice EN
