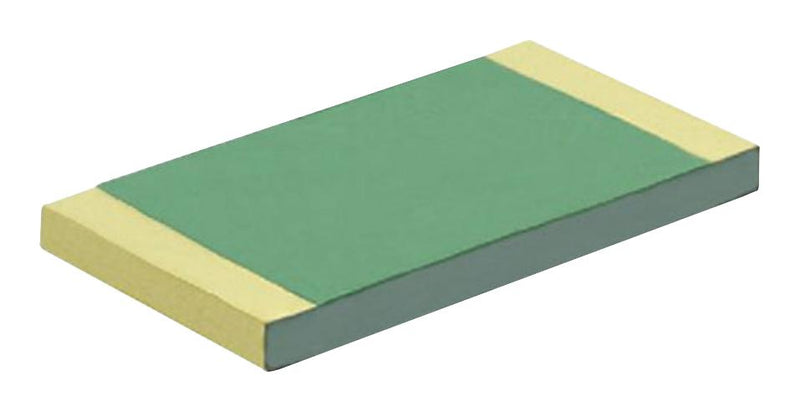

Vishay PEP0402Y1102WNTA SMD Chip Resistor 11 Kohm ± 0.05% 125 mW 0402 [1005 Metric] Thin Film Precision

PEP series high precision wraparound, power enhanced thin film chip resistors are designed for high power applications, low noise, superior stability, low temperature coefficient of resistance and low voltage coefficient. The resistive thin film layer can withstand an established temperature as high as 250°C hence, the restrictions are mainly due to the robustness of terminations and solder joints. PEP series is recommended for customers who need to switch to lower size devices with the same power limits.

• Load life stability of 0.1% typical (0.35% maximum) at 2000h / Pn / 70°C
• Very low noise of < -35dB and voltage coefficient < 0.01ppm/V
• Thin film technology
• Sulphur resistant (per ASTM B809-95 humid vapour test)
• Tin silver over gold barrier termination

Other details

Brand	VISHAY
Part Number	PEP0402Y1102WNTA
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN
