Vishay Foil Resistors Y08500R10000F9R Y08500R10000F9R SMD Current Sense Resistor 0.1 ohm VCS1625 2516 [6440 Metric] 500 mW ± 1% Metal

The VCS1625 series high precision surface-mount current sensing Chip Resistor designed with 4 pads for Kelvin connection. Utilizing Vishay Bulk Metal® foil as the resistance element and it provides performance capabilities far greater than other resistor technologies can supply in a product of comparable size. This small device dissipates heat almost entirely through the pads so surface-mount users are encouraged to be generous with the board's pads and traces.

• Gold terminations are available on special order
• Two lead-free options are available - Gold plated or tin plated
• Non inductive, non-capacitive design
• Non hot spot design
• 0.01 to 10R Resistance range
• ±0.02% @ 70°C, 2000hrs @ Rated power load life stability
• Electrostatic discharge (ESD) up to 25000V
• <=0.005% Short time overload
• 0.05µV/°C Thermal EMF
• <-40dB Current noise

• 1ns Effectively no ringing rise time

Footnotes Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.

Other details

Brand	VISHAY FOIL RESISTORS
Part Number	Y08500R10000F9R
Quantity	Each (Supplied on Cut Tape)
Technical Data Sheet EN

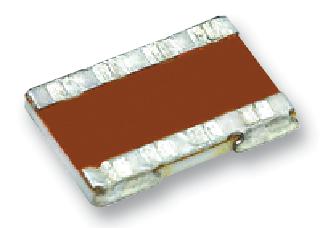

All product and company names are trademarks™ or registered® trademarks of their respective holders. Use of them does not imply any affiliation with or endorsement by them. Image is for illustrative purposes only. Please refer to product description.
